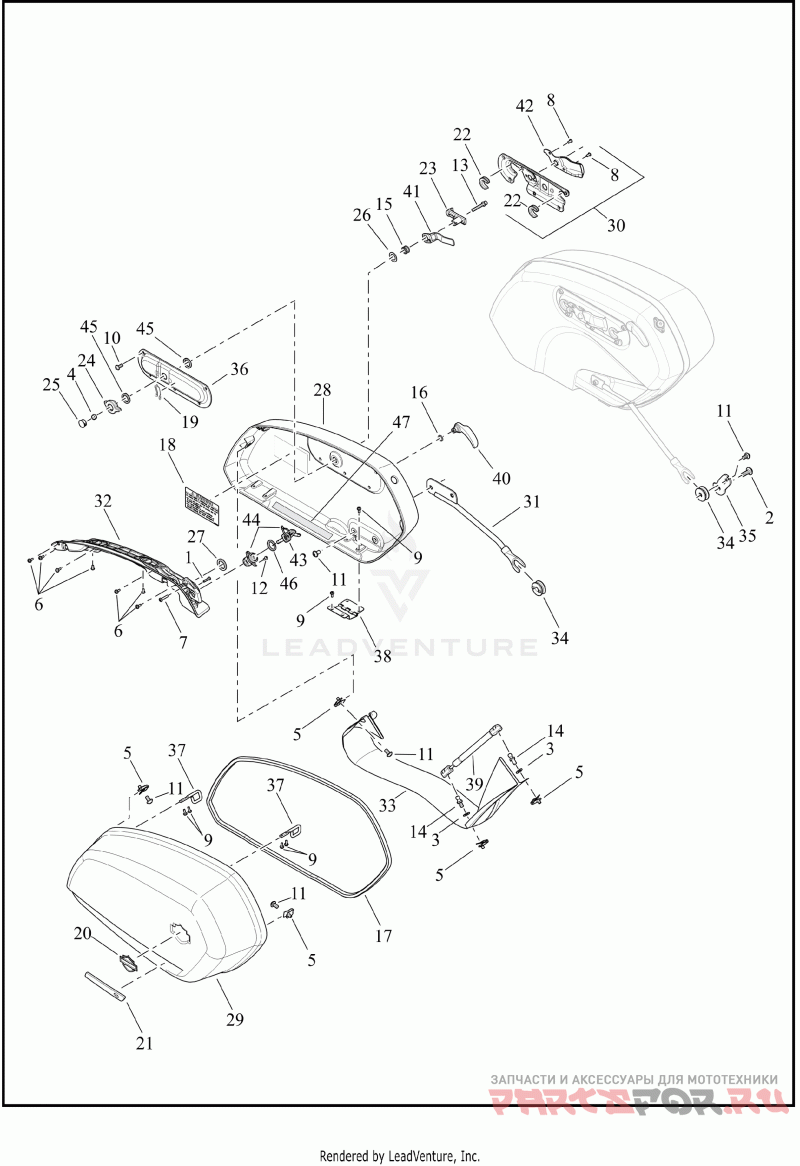

SADDLEBAGS - FXLRST

Harley Davidson FXLRST 1YXA LOW RIDER ST (2025)

Harley Davidson
#oem кодцена
1
2968
Деталь SCREW,X
2
4512A
Деталь SCREW,SEMS,BTN-TORX OR 6 LOBES HD/LOCK
3
6702
Деталь WASHER,PLAIN,TYPE-A
4
7686
Деталь NUT,HEX LOCK
5
8144
Деталь NUT,CLIP 5/16
6
10200063
Деталь TORX SEMS,8-32X1/2,PLAS 48-2 T15
7
10200064
Деталь TORX PAN,8-32X1,TAP-II T20
8
10200070
Деталь SCREW,BTN HD TORX,W/LOCKPATCH
9
10200103
Деталь 8-32 X 1/2 TORX PAN SEMS T15
10
10200273
Деталь SCREW,BTN HEAD,SEMS,1/4-20
11
10200414
Деталь SCREW,BUTTON HEAD
12
10200557
Деталь SCREW,TORX SEMS,NO.8,PLASTITE
13
10500009
Деталь SCREW,SPEC TORX SCKT HD CAP,SEMS
14
10900035
Деталь STUD,BALL,5/16 | ball
15
11700004
Деталь SPRING,COIL,X
16
11900127
Деталь O-RING,500,QUAD SEAL
17
12100101
Деталь GROMMET,S-BAG SEAL
18
14000069
Деталь WARNING LABEL,SBAG CAPACITY | warning, saddlebag
19
14000234
Деталь LABEL,GENL,SBAG LATCH | saddlebag latch (left)
19
14000267
Деталь LABEL,GENL,SBAG LATCH | saddlebag latch (right)
20
14100980
Деталь MEDALLION,BAR AND SHIELD | saddlebag (Polished Aluminum)
20
14102002
Деталь MEDALLION,BAR AND SHIELD | saddlebag (Hot Rod Red)
21
67900066
Деталь REFLECTOR,X | (amber) (left) (Australia, AU2, ASEAN, Brazil, China, England, EN2, HDI, HD4, Japan, JP2)
21
67900068
Деталь REFLECTOR,X | (amber) (right) (Australia, AU2, ASEAN, Brazil, China, England, EN2, HDI, HD4, Japan, JP2)
21
67900065
Деталь REFLECTOR,LH-SIDE,RED | (red) (left) (Canada, Domestic)
21
67900067
Деталь REFLECTOR,RH-SIDE,RED | (red) (right) (Canada, Domestic)
22
90200480
Деталь S-BAG BTM,X | saddlebag mount
23
90200481
Деталь S-BAG BTM,X | latching
24
90200483
Деталь S-BAG BTM,X | latch
25
90200484
Деталь LATCH CAP | latch
26
90200515
Деталь SPRING SPACER,LATCHING ARM | spring, latching arm
27
90200901
Деталь SEAL,HANDLE SUPPORT,SBAG | handle support
28
90202708
Деталь S-BAG BTM,RH | (right) (Not painted. Offered only as a molded finish.)
28
90202263
Деталь S-BAG BTM,LH | (left) (Not painted. Offered only as a molded finish.)
29
90202768
Деталь COVER,S-BAG,RH | (right) (unpainted)
29
90201451
Деталь COVER,S-BAG,LH | (left) (unpainted)
30
90202312
Деталь KIT,S-BAG,MTG,RH | with 10200070, 90200480 and 90202258 (right)
30
90202311
Деталь KIT,S-BAG,MTG,LH | with 10200070, 90200480 and 90202257 (left)
31
90202710
Деталь PL/BRKT,S-BAG MTG,LOWER,RH | saddlebag mounting, lower (right)
31
90202265
Деталь PL/BRKT,S-BAG MTG,LOWER,LH | saddlebag mounting, lower (left)
32
90201520
Деталь LATCH,S-BAG,ASSY,RH | saddlebag, with 2968, 10200063 and 90200901 (right)
32
90201521
Деталь LATCH,S-BAG,ASSY,LH | saddlebag, with 2968, 10200063 and 90200901 (left)
33
90201683
Деталь S-BAG INR,TETHER,LH | saddlebag, inner
34
90201524
Деталь PL/BRKT,S-BAG MTG,DOCKING,LWR | mounting bracket
35
90201525
Деталь PL/BRKT,S-BAG MTG,DOCKING | saddlebag mounting, lower
36
90201536
Деталь PL/BRKT,S-BAG MTG,ASSY,INR,RH | inner, with 14000267 and 90200492 (right)
36
90201537
Деталь PL/BRKT,S-BAG MTG,ASSY,INR,LH | inner, with 14000234 and 90200492 (left)
37
90201538
Деталь S-BAG,STRIKE | saddlebag
38
90201539
Деталь S-BAG,HINGE,ASSY | saddlebag
39
90201678
Деталь S-BAG,DAMPER | saddlebag
40
90201681
Деталь LATCH,S-BAG,HANDLE,ASSY,RH | saddlebag latch, with 11900127 (right)
40
90201682
Деталь LATCH,S-BAG,HANDLE,ASSY,LH | saddlebag latch, with 11900127 (left)
41
90202261
Деталь S-BAG,INDICATOR,LH | saddlebag (left)
41
90202262
Деталь S-BAG,INDICATOR,RH | saddlebag (right)
42
90202257
Деталь PL/BRKT,S-BAG MTG,INDICATOR,CVR,LH | indicator (left)
42
90202258
Деталь PL/BRKT,S-BAG MTG,INDICATOR,CVR,RH | indicator (right)
43
90300129
Деталь KEY,SET,SIDE-CUT,BLADE | (set of 2) (specify key number)
44
90300140
Деталь KIT,LOCKSET,ONE BAG LOCK,W/KEYSET | saddlebag, with 90300129 (specify key number)
44
90300141
Деталь KIT,LOCKSET,TWO BAG LOCKS,W/KEYSET | saddlebag (set of 2) (specify key number)
45
90200492
Деталь S-BAG BTM,X
46
92800003
Деталь MECH SCTY,GASKET,FACE,S-BAG LOCK
47
11100245
Деталь TAPE,MTG,VELCRO,HOOK | tether mounting
