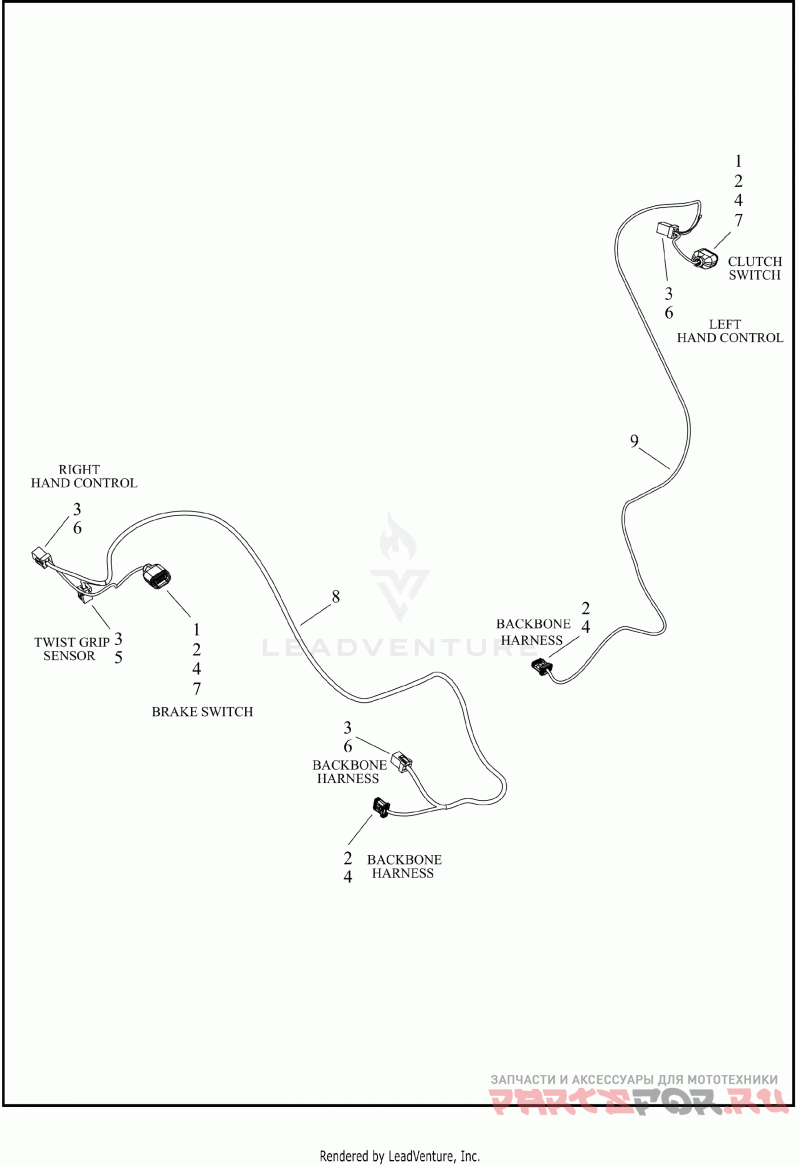

WIRING HARNESS, HAND CONTROL JUMPER
Harley Davidson FXBR 1YE9 BREAKOUT (2025)
| # | oem код | название | цена |
|---|---|---|---|
1 | 5118 Деталь TERMINAL,X | Деталь TERMINAL,X | |
2 | 72908-11 Деталь CONNECTOR,X | 4-way socket (black) | Деталь CONNECTOR,X | 4-way socket (black) | |
3 | 69200307 Деталь TERMINAL,X | socket 22AWG | Деталь TERMINAL,X | socket 22AWG | |
4 | 69200308 Деталь TERMINAL,SOCKET,#22AWG(PO) | socket 22AWG | Деталь TERMINAL,SOCKET,#22AWG(PO) | socket 22AWG | |
5 | 69201162 Деталь CONNECTOR,6-WAY SOCKET,BLACK | six-way socket (black) | Деталь CONNECTOR,6-WAY SOCKET,BLACK | six-way socket (black) | |
6 | 69201712 Деталь CONNECTOR,8-WAY,SKT | eight-way socket | Деталь CONNECTOR,8-WAY,SKT | eight-way socket | |
7 | 69203192 Деталь WIRE HARN SUB-CMPNT,BOOT,CONNECTOR | Деталь WIRE HARN SUB-CMPNT,BOOT,CONNECTOR | |
8 | 69203351 Деталь HARNESS,WIRE,JUMPER,RH CONT MDL | hand control jumper,(right) | Деталь HARNESS,WIRE,JUMPER,RH CONT MDL | hand control jumper,(right) | |
9 | 69203353 Деталь HARNESS,WIRE,JUMPER,LH CONT MDL | hand control jumper (left) | Деталь HARNESS,WIRE,JUMPER,LH CONT MDL | hand control jumper (left) |
