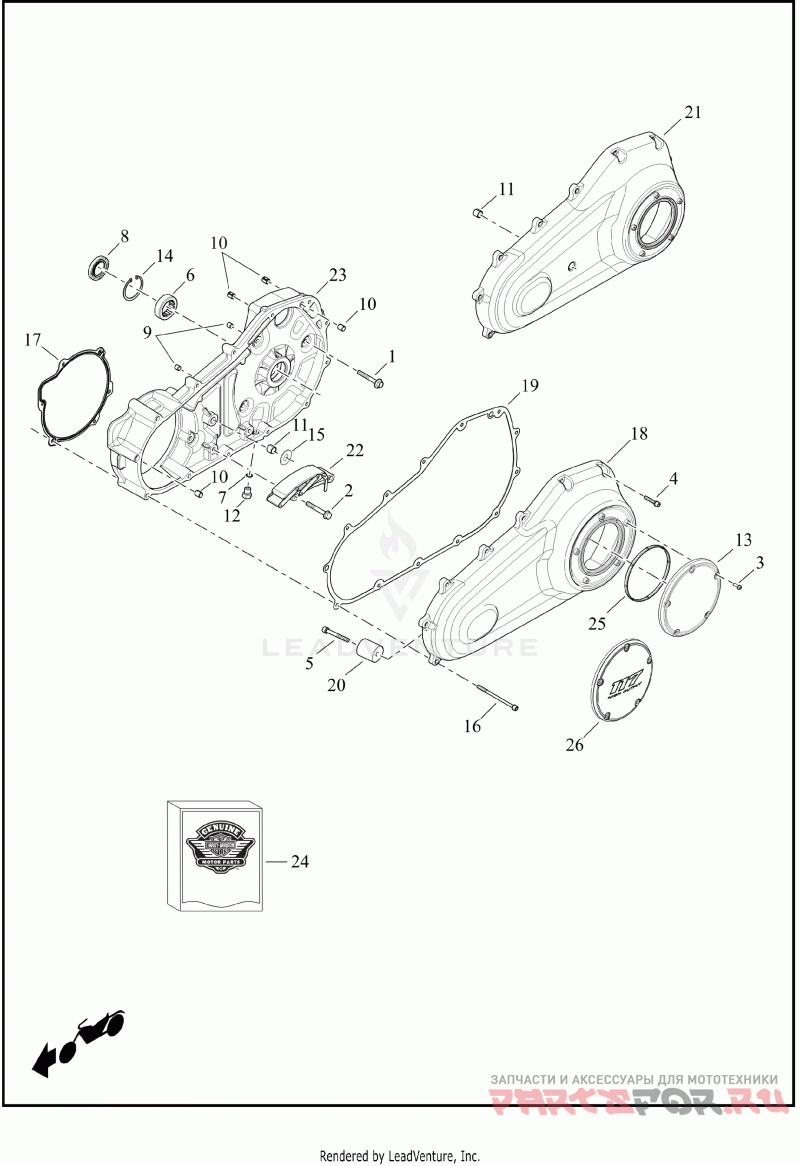

PRIMARY HOUSING

Harley Davidson FXBR 1YE9 BREAKOUT (2025)

Harley Davidson
#oem кодцена
1
786A
Деталь SEAL BOLT,5/16
2
791A
Деталь SCREW,HEX FLANGE/LOCK
3
10200644
Деталь SCREW,BTN,TORX,W/WASHER | with washer
4
4813A
Деталь SCREW,HEX SOCKET HEAD CAP, SEMS
5
4820A
Деталь SCREW,,HEX SCKT,SEMS/LOCK
6
9231
Роликовый подшипник
7
11105
Уплотнительное кольцо
8
12052B
Деталь SEAL,RDL SHFT,INR-PRIMARY
9
16583-00B
Деталь PIN,DOWEL | dowel
10
24754-75A
Деталь DOWEL PIN,SPLIT,HOLLOW
12
60328-98B
Деталь PLUG ASY,MAGNETIC/OIL DRAIN | magnetic drain, with 11105
13
25701034
Деталь COVER,CL,GLOSS BLACK | clutch (gloss black)
14
60678-85
Деталь RING,RETG,INTERNAL
16
10200481
Деталь SCREW,SHCS,SEMS
17
25700455
Деталь GASKET,CVR,X | primary housing
18
25701077
Деталь COVER,PRI,CHROME | primary (chrome)
19
25700564
Деталь COVER,PRI,GASKET | primary cover
20
25700650
Деталь COVER,PRI,SLEEVE,DAMPER | damper
22
36500075A
Деталь TENSIONER,PRI CHN,X
23
36500114
Деталь HOUSING,INR PRI,SUB-ASSY,BLACK,WIDE | with 60328-98B (wide) (black)
24
25701079
Деталь KIT,CVR/SLG,INNER PRIMARY | inner primary, with 786A, 11105, 12052A, 25700455, 25700564, 25701080 and 37909-90
25
25701080
Деталь GASKET,CVR,CLUTCH | clutch cover
