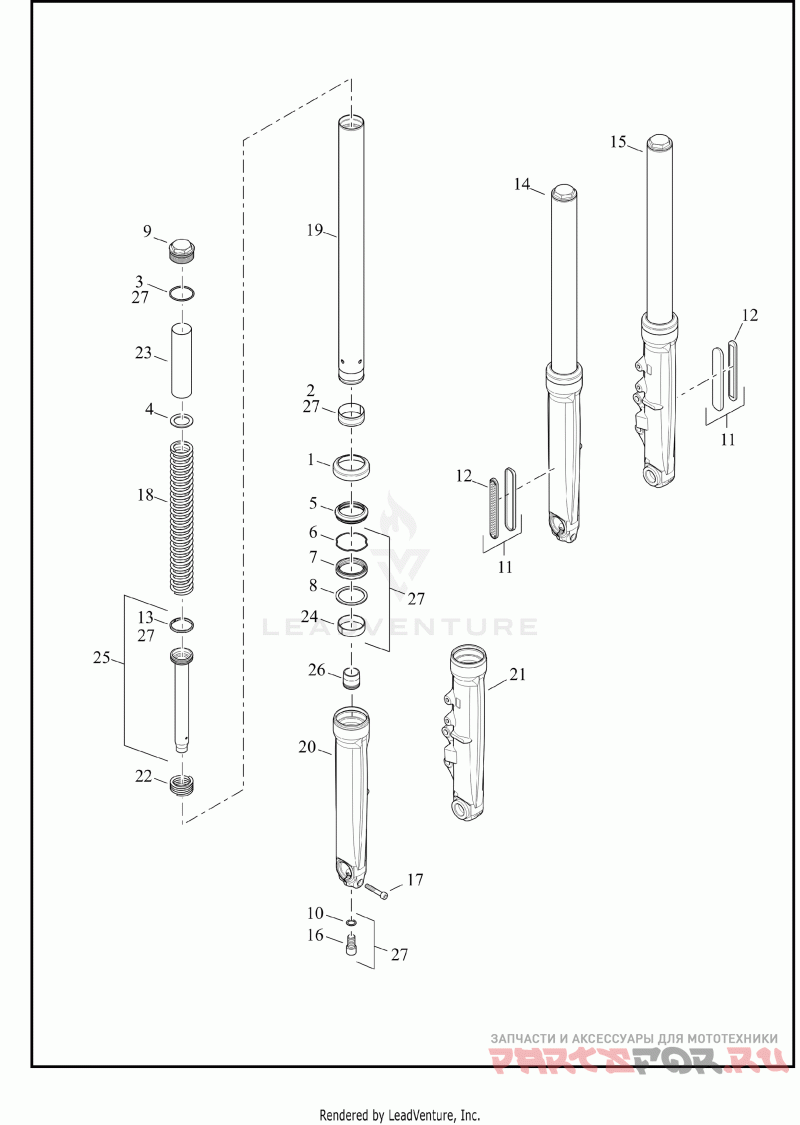

FORK, FRONT - FXBR

Harley Davidson FXBR 1YE9 BREAKOUT (2025)

Harley Davidson
#oem кодцена
1
45070-01
Деталь COVER,CASE,FRT FORK | case
2
45500424
Деталь FR TLSCP FORK SUB-CMPNT,SLIDER BUSHING
3
46508-01
Уплотнительное кольцо
4
46509-01
Шайба
5
46512-01A
Деталь DUST SEAL,FORK(PO)
6
46513-01
Деталь RING STOPPER
7
46514-01A
Деталь OIL SEAL,FORK(PO)
8
46515-01
Деталь SPACER SEAL
9
46612-06
Деталь BOLT,FRT FORK | front fork
10
46615-06
Деталь CU PACKING
11
59405-09
Деталь REFLECTOR,X | with 60254-07, amber
12
60254-07
Деталь REFLECTOR,AMBER,OBLONG | amber
13
22000031
Кольцо поршневое
14
45400374
Деталь FORK,FR TLSCP,RH,BUFFED,BLACK,49MM,DB | (right) (black)
15
45400375
Деталь FORK,FR TLSCP,LH,BUFFED,BLACK,49MM,DB | (left) (black)
16
45500118
Деталь HSHCS,M14X1.25-25(PO)
17
45500132
Деталь HSHCS,M8X1.25-45
18
45500887
Деталь SPRING,FR TLSCP FORK,COMPRESSION
19
45500376
Деталь FR TLSCP FORK SUB-CMPNT,FORK PIPE | with 45500424
20
45500382
Деталь SLIDER,FR TLSCP FORK,RH,BUFFED,BLK,49MM | fork (right) (black)
21
45500383
Деталь SLIDER,FR TLSCP FORK,LH,BUFFED,BLK,49MM | fork (left) (black)
22
45500396
Деталь SPRING,FR TLSCP FORK,REBOUND
23
45500398
Деталь FR TLSCP FORK SUB-CMPNT,SPRING COLLAR
24
45500421
Деталь FR TLSCP FORK SUB-CMPNT,GUIDE BUSHING
25
45500889
Деталь FR TLSCP FORK SUB-CMPNT,SEAT PIPE ASSY | with 22000031
26
45500512
Деталь FR TLSCP FORK SUB-CMPNT,OIL LOCK PIECE
27
91700025A
Деталь KIT-FORK REBUILD,49MM,TOURING | with 2, 3, 6, 7, 8, 10, 13, 16 and 24
