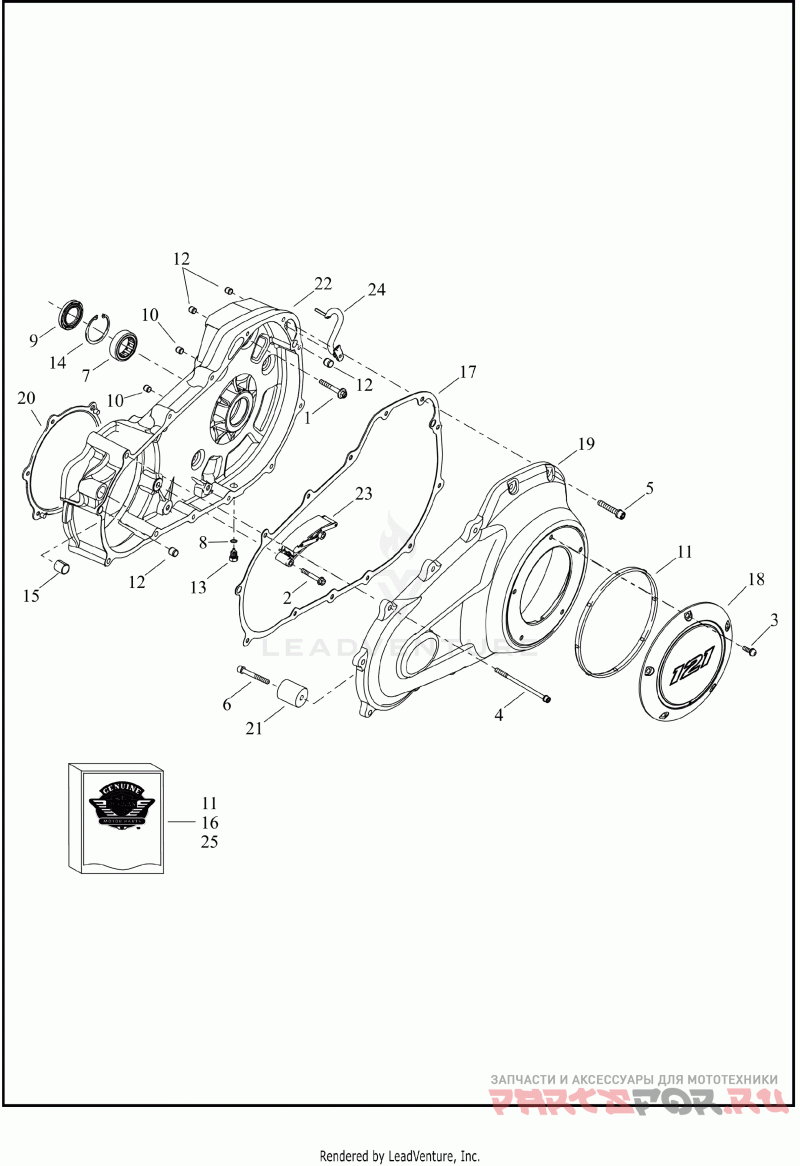

PRIMARY HOUSING
Harley Davidson FLTRXSE 1TC6 CVO ROAD GLIDE (2025)
| # | oem код | название | цена |
|---|---|---|---|
1 | 786A Деталь SEAL BOLT,5/16 | Деталь SEAL BOLT,5/16 | |
2 | 791A Деталь SCREW,HEX FLANGE/LOCK | Деталь SCREW,HEX FLANGE/LOCK | |
3 | 1062 Деталь SCREW,BTN,TORX,W/WASHER | Деталь SCREW,BTN,TORX,W/WASHER | |
4 | 1775 Деталь SCREW,HEX SCKT HD,SEMS | Деталь SCREW,HEX SCKT HD,SEMS | |
5 | 4813A Деталь SCREW,HEX SOCKET HEAD CAP, SEMS | Деталь SCREW,HEX SOCKET HEAD CAP, SEMS | |
6 | 4820A Деталь SCREW,,HEX SCKT,SEMS/LOCK | Деталь SCREW,,HEX SCKT,SEMS/LOCK | |
7 | 9231 Роликовый подшипник | Роликовый подшипник | |
8 | 11105 Уплотнительное кольцо | Уплотнительное кольцо | |
9 | 12052B Деталь SEAL,RDL SHFT,INR-PRIMARY | Деталь SEAL,RDL SHFT,INR-PRIMARY | |
10 | 16583-00B Деталь PIN,DOWEL | dowel | Деталь PIN,DOWEL | dowel | |
11 | 17369-06 Деталь KIT-GASKET,SERV,1K/5K/10K | 1000 mi (1600 km), 5000 mi (8000 km), 10,000 mi (16,000 km), with 11105 and clutch cover seal | Деталь KIT-GASKET,SERV,1K/5K/10K | 1000 mi (1600 km), 5000 mi (8000 km), 10,000 mi (16,000 km), with 11105 and clutch cover seal | |
12 | 24754-75A Деталь DOWEL PIN,SPLIT,HOLLOW | Деталь DOWEL PIN,SPLIT,HOLLOW | |
13 | 60328-98B Деталь PLUG ASY,MAGNETIC/OIL DRAIN | magnetic drain, with 11105 | Деталь PLUG ASY,MAGNETIC/OIL DRAIN | magnetic drain, with 11105 | |
14 | 60678-85 Деталь RING,RETG,INTERNAL | Деталь RING,RETG,INTERNAL | |
15 | 11000139 Деталь BUSHING, SHIFTER | Деталь BUSHING, SHIFTER | |
16 | 25700830 Деталь KIT,CVR/SLG,INNER PRIMARY,CVO | inner primary with 11105, 12052A, 25700378, 25700679, 37909-90, 786A and clutch cover gasket | Деталь KIT,CVR/SLG,INNER PRIMARY,CVO | inner primary with 11105, 12052A, 25700378, 25700679, 37909-90, 786A and clutch cover gasket | |
17 | 25700378 Деталь GASKET,PRIMARY COVER | primary cover | Деталь GASKET,PRIMARY COVER | primary cover | |
18 | 25701827 Деталь COVER,CL,ASSY,CHROME,BLUE | clutch (chrome/blue) (traditional M30 paint scheme) | Деталь COVER,CL,ASSY,CHROME,BLUE | clutch (chrome/blue) (traditional M30 paint scheme) | |
18 | 25701829 Деталь COVER,CL,ASSY,SC CHROME,MAGENTA | clutch (chrome/magenta) (transitional M31 paint scheme) | Деталь COVER,CL,ASSY,SC CHROME,MAGENTA | clutch (chrome/magenta) (transitional M31 paint scheme) | |
18 | 25701831 Деталь COVER,CL,ASSY,SC CHROME,ORANGE | clutch (scorched chrome/orange) (stretch M32 paint scheme) | Деталь COVER,CL,ASSY,SC CHROME,ORANGE | clutch (scorched chrome/orange) (stretch M32 paint scheme) | |
19 | 25700418 Деталь COVER,PRI,CHRM | primary (chrome) (traditional M30 paint scheme) | Деталь COVER,PRI,CHRM | primary (chrome) (traditional M30 paint scheme) | |
19 | 25700491 Деталь COVER,PRI,MACH,GLOSS BLK | primary (gloss black) (transitional M31 paint scheme, stretch M32 paint scheme) | Деталь COVER,PRI,MACH,GLOSS BLK | primary (gloss black) (transitional M31 paint scheme, stretch M32 paint scheme) | |
20 | 25700679 Деталь GASKET,CVR,PRIMARY HOUSING/CRANKCASE BLK | primary housing to case | Деталь GASKET,CVR,PRIMARY HOUSING/CRANKCASE BLK | primary housing to case | |
21 | 25700650 Деталь COVER,PRI,SLEEVE,DAMPER | damper | Деталь COVER,PRI,SLEEVE,DAMPER | damper | |
22 | 36500092B Деталь HOUSING,INR PRI,ASSY,BLACK GRANITE | with 9231, 12052A, 16583-00A, 60328-98B, 60678-85, 11000139 26500026 (black granite) | Деталь HOUSING,INR PRI,ASSY,BLACK GRANITE | with 9231, 12052A, 16583-00A, 60328-98B, 60678-85, 11000139 26500026 (black granite) | |
23 | 36500075A Деталь TENSIONER,PRI CHN,X | Деталь TENSIONER,PRI CHN,X | |
24 | 26500026 Деталь HOSE,VENT/BRTHR,PRIMARY | Деталь HOSE,VENT/BRTHR,PRIMARY | |
25 | 26500027 Деталь KIT,VENT/BRTHR,PRIMARY | primary with 11105, 25700378, 26500026 and clutch cover seal | Деталь KIT,VENT/BRTHR,PRIMARY | primary with 11105, 25700378, 26500026 and clutch cover seal |
