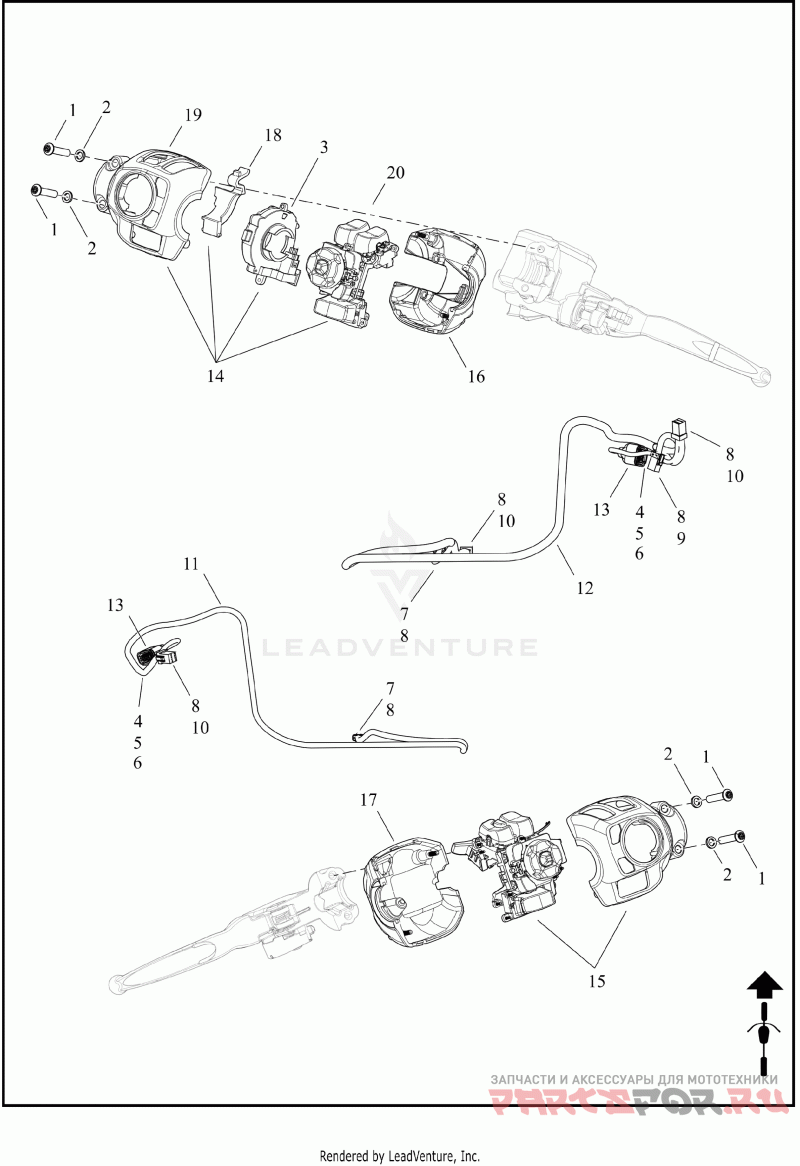

SWITCHES, HANDLEBAR
Harley Davidson FLTRXRRSE 1TPV CVO ROAD GLIDE RR (2025)
| # | oem код | название | цена |
|---|---|---|---|
1 | 4132 Деталь SCREW,HX SOC/BTN/TORX HD | Деталь SCREW,HX SOC/BTN/TORX HD | |
2 | 6101 Шайба | Шайба | |
3 | 32700167 Деталь SENSOR,TWIST GRIP | Деталь SENSOR,TWIST GRIP | |
4 | 72908-11 Деталь CONNECTOR,X | four-way socket, clutch and brake switch connectors | Деталь CONNECTOR,X | four-way socket, clutch and brake switch connectors | |
5 | 69200308 Деталь TERMINAL,SOCKET,#22AWG(PO) | socket, clutch and brake switch connectors | Деталь TERMINAL,SOCKET,#22AWG(PO) | socket, clutch and brake switch connectors | |
6 | 5118 Деталь TERMINAL,X | clutch and brake switch connectors | Деталь TERMINAL,X | clutch and brake switch connectors | |
7 | 69200306 Деталь HOUSING,4-WAY SOCKET,WHITE(PO) | four-way socket (white) | Деталь HOUSING,4-WAY SOCKET,WHITE(PO) | four-way socket (white) | |
8 | 69200307 Деталь TERMINAL,X | socket | Деталь TERMINAL,X | socket | |
9 | 69201162 Деталь CONNECTOR,6-WAY SOCKET,BLACK | six-way socket | Деталь CONNECTOR,6-WAY SOCKET,BLACK | six-way socket | |
10 | 69201712 Деталь CONNECTOR,8-WAY,SKT | eight-way socket | Деталь CONNECTOR,8-WAY,SKT | eight-way socket | |
11 | 69203017 Деталь HARNESS,WIRE,CONT JMPR,LH | (left) includes 4, 5, 6, 7, 8, 10, 13 | Деталь HARNESS,WIRE,CONT JMPR,LH | (left) includes 4, 5, 6, 7, 8, 10, 13 | |
12 | 69203018 Деталь HARNESS,WIRE,CONT JMPR,RH | (right) includes 4, 5, 6, 7, 8, 9, 10, 13 | Деталь HARNESS,WIRE,CONT JMPR,RH | (right) includes 4, 5, 6, 7, 8, 9, 10, 13 | |
13 | 69203192 Деталь WIRE HARN SUB-CMPNT,BOOT,CONNECTOR | Деталь WIRE HARN SUB-CMPNT,BOOT,CONNECTOR | |
14 | 71500609B Деталь HAND CONT,RH,W/SWITCHPACK,GLOSS BLACK | includes 3, 18, 19, 20 (right) (gloss black) | Деталь HAND CONT,RH,W/SWITCHPACK,GLOSS BLACK | includes 3, 18, 19, 20 (right) (gloss black) | |
15 | 71500610A Деталь HAND CONT,LH,W/SWITCHPACK, GLOSS BLACK | includes cover and switchpack (left) (gloss black) | Деталь HAND CONT,LH,W/SWITCHPACK, GLOSS BLACK | includes cover and switchpack (left) (gloss black) | |
16 | 71500611B Деталь HAND CONT,RH/RR,GLOSS BLACK | rear (right) (gloss black) | Деталь HAND CONT,RH/RR,GLOSS BLACK | rear (right) (gloss black) | |
17 | 71500612A Деталь HAND CONT,COVER ASSY,LH/RR,GLOSS BLACK | rear (left) (gloss black) | Деталь HAND CONT,COVER ASSY,LH/RR,GLOSS BLACK | rear (left) (gloss black) | |
18 | 71500660 Деталь HAND CONT,RH,WIRE BRIDGE W/PIN | (right) | Деталь HAND CONT,RH,WIRE BRIDGE W/PIN | (right) | |
19 | 71500617A Деталь COVER | hand control (right) (gloss black) | Деталь COVER | hand control (right) (gloss black) | |
20 | 71500618A Деталь SWITCHPACK | assembly, hand control (right) | Деталь SWITCHPACK | assembly, hand control (right) |
