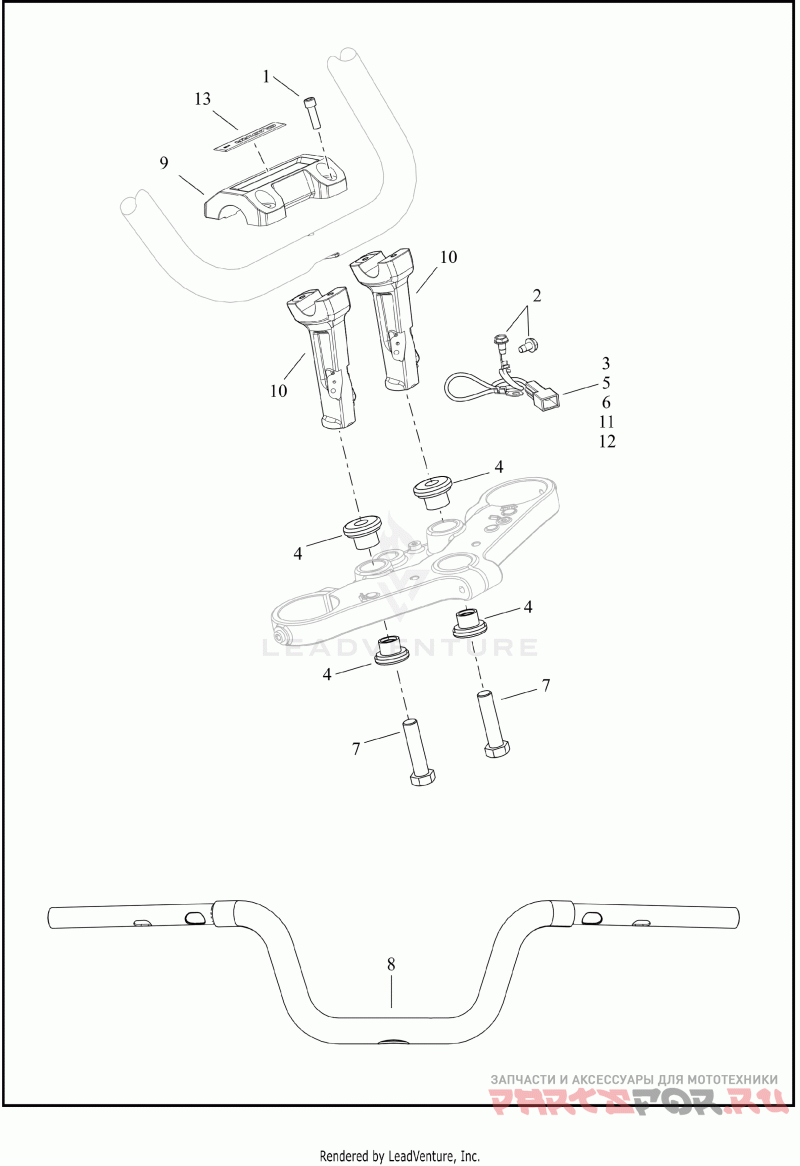

Руль
Harley Davidson FLTRXRRSE 1TPV CVO ROAD GLIDE RR (2025)
| # | oem код | название | цена |
|---|---|---|---|
1 | 10500242 Деталь SCREW,CUST,RISER | Деталь SCREW,CUST,RISER | |
2 | 4240 Деталь SCREW,HEX WASH HEAD | Деталь SCREW,HEX WASH HEAD | |
3 | 9853 Деталь FASTENING TAB | fastening | Деталь FASTENING TAB | fastening | |
4 | 56298-03A Деталь KIT-ISOLATORS/RISER/POLY/FLTS | includes 4 poly bushings (discard screws in kit, use 3605 only) | Деталь KIT-ISOLATORS/RISER/POLY/FLTS | includes 4 poly bushings (discard screws in kit, use 3605 only) | |
5 | 72053-92 Деталь HOUSING, MALE SPADE | one-way pin (black) | Деталь HOUSING, MALE SPADE | one-way pin (black) | |
6 | 72241-94A Деталь TERMINAL #10 RING 14-18 GAUGE | 10 ring, 14-18 AWG | Деталь TERMINAL #10 RING 14-18 GAUGE | 10 ring, 14-18 AWG | |
7 | 3605 Деталь SCREW,HEX CAP | Деталь SCREW,HEX CAP | |
8 | 55801486 Деталь KIT,H-BAR,MOTO,BLACK | KIT (black) | Деталь KIT,H-BAR,MOTO,BLACK | KIT (black) | |
9 | 55900382 Деталь SUB-ASSY,H-BAR MTG/END,CLAMP,131RR | (upper) (black) | Деталь SUB-ASSY,H-BAR MTG/END,CLAMP,131RR | (upper) (black) | |
10 | 55900305 Деталь RISER | handlebar (black) | Деталь RISER | handlebar (black) | |
11 | 69200224 Деталь HARNESS,WIRE,TRIPLE CLAMP,GRND JMPR | triple clamp, ground jumper, with 9853, 72053-92, 72241-94A and 69203195 | Деталь HARNESS,WIRE,TRIPLE CLAMP,GRND JMPR | triple clamp, ground jumper, with 9853, 72053-92, 72241-94A and 69203195 | |
12 | 69203195 Деталь TERMINAL,RING | ring | Деталь TERMINAL,RING | ring | |
13 | 14102242 Деталь MEDALLION,HBAR TOP CLAMP,131RR | Деталь MEDALLION,HBAR TOP CLAMP,131RR |
