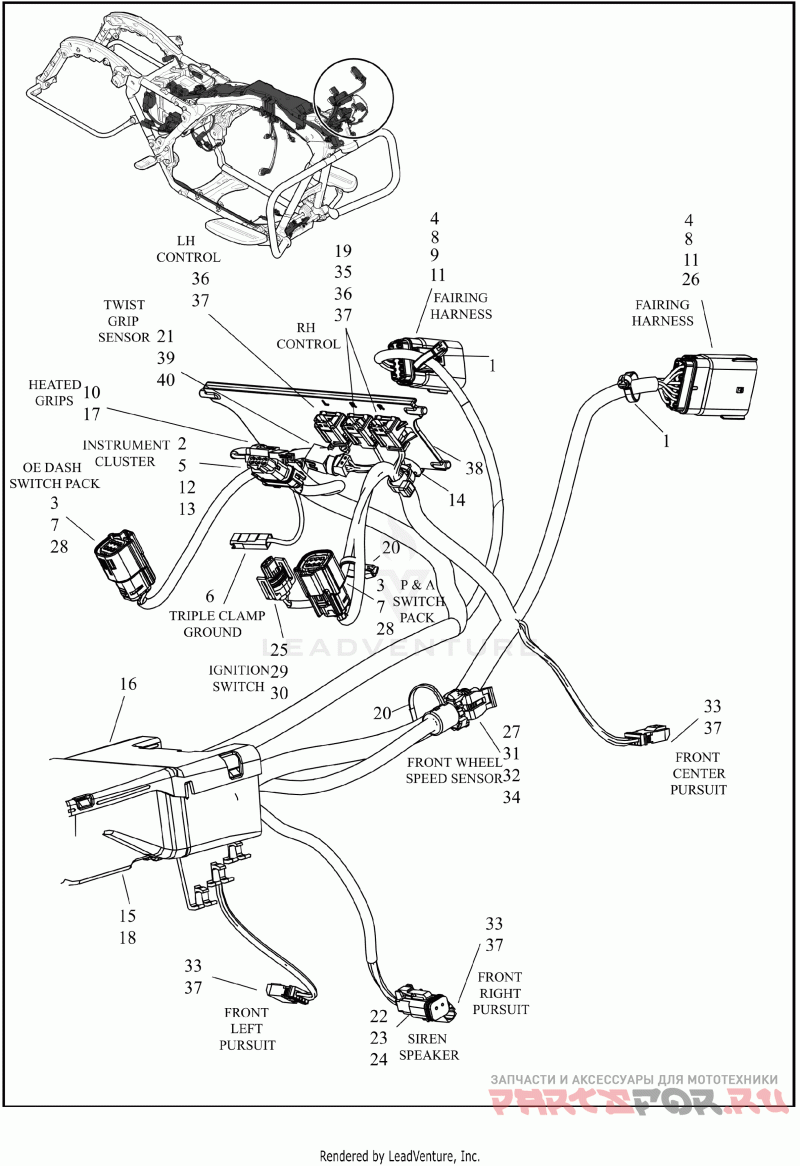

WIRING HARNESS, MAIN, ABS - FLTRXP

Harley Davidson FLTRXP 1AJP POLICE ROAD GLIDE (2025)

Harley Davidson
#oem кодцена
69203422
Деталь HARNESS,WIRE,MAIN,W/ABS,ECC,FLTRXP
1
10006
Деталь STRAP,TIE,X
2
72130-04
Деталь HOUSING,12-WAY,SCKT/BLACK | 12-way socket (black)
3
72168-07
Деталь TERMINAL,SOCKET,#18-20 AWG | socket, 18-20 AWG
4
72169-07
Деталь TERMINAL,PIN,#16-20 AWG | pin, 16-20 AWG
5
72189-04
Деталь SEAL PIN
6
72290-94
Деталь TERMINAL,.250F,INSULATED | insulated
7
72414-07BK
Деталь HOUSING, 6-WAY SOCKET, BLACK | six-way socket (black)
8
72473-07
Деталь SEAL PIN
9
72490-07GY
Деталь HOUSING,12-WAY,PIN/GREY | 12-way pin (gray)
10
72912-01BK
Деталь HSG SOCKET 2 WAY BLACK | two-way socket (black)
11
73213-07
Деталь RETAINER,X-MAS TREE CLIP | anchored
12
74196-04
Деталь TERMINAL,SCKT,#20AWG | socket, 20 AWG
13
74197-04
Деталь SECONDARY LOCK,12WAY,SCKT | 12-way socket
14
12500002
Деталь CABLE STRAP,XMAS,2-PC(PO) | anchored
15
69202720A
Деталь BRKT,ELEC MT,WIRE TROUGH ASSEMBLY KIT | with 69202637
16
69202636
Деталь BRKT,ELEC MT,COVER, WIRE TROUGH | wire trough
17
69201240
Деталь TERMINAL,SOCKET,#18AWG | socket, 18 AWG
18
69202637
Деталь BRKT,ELEC MT,ABS BRKLINE RETENTION CLIP | brake line retention
19
5118
Деталь TERMINAL,X
20
10065
Деталь STRAP,TIE,CABLE
21
10177
Деталь CABLE STRAP,X-MAS TREE MOUNT | anchored
22
72112-94BK
Деталь SOCKET HSG,SEALED 2 | 2-way socket
23
72152-94
Деталь SECONDARY LOCK,2WAY,SCKT | 2-way socket
24
72191-94
Деталь TERMINAL,SCKT,#16-18AWG | socket, 16-18 AWG
25
72062-06
Деталь HOUSING, 2-WAY FEMALE | 2-way socket (gray)
26
72167-07BK
Деталь HOUSING,16-WAY,PIN/BLACK | 16-way pin (black)
27
72213-94
Деталь TERMINAL SCKT 16-20AWG | socket, 16-20 AWG
28
69203106
Деталь WIRE HARN SUB-CMPNT,SEAL PIN (PLUG)
29
72484-08
Деталь TERMINAL,SOCKET,#20AWG | socket, 20 AWG
30
72486-08
Деталь WIRE SEAL,#20AWG,GREEN | 20 AWG (green)
31
72606-08
Деталь HOUSING, 2-WAY SOCKET | two-way socket (black)
32
72610-08
Деталь SEAL, CABLE #18-20 AWG, WHITE | 18-20 AWG (white)
33
69201180
Деталь HOUSING,4-WAY PIN,GRAY | four-way pin (gray)
34
72609-08
Деталь SECONDARY LOCK, 2-WAY SCKT/BLACK | two-way socket
35
72905-11
Деталь HOUSING,2-WAY PIN | two-way pin (black)
36
72907-11
Деталь HOUSING,4-WAY PIN | four-way pin (black)
37
72909-11
Деталь TERMINAL,PIN,#20-22AWG | pin, 20-22 AWG
38
69200700
Деталь GUIDE,WIRE HARNESS,NACELLE
39
69201163
Деталь CONNECTOR,6-WAY PIN,BLACK | six-way pin (black)
40
69201164
Деталь SEAL,CONN/TERM,X | pin, 22 AWG
