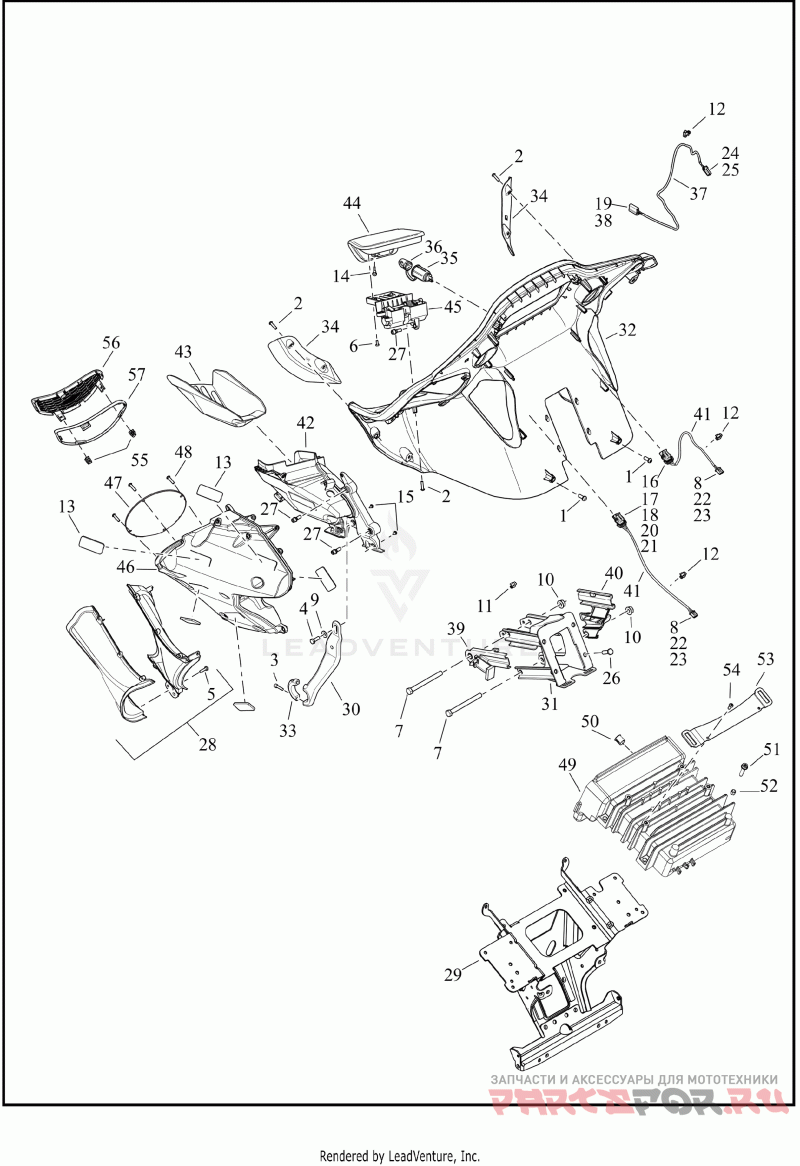

FAIRING, INNER - FLTRXP

Harley Davidson FLTRXP 1AJP POLICE ROAD GLIDE (2025)

Harley Davidson
#oem кодцена
1
1062
Деталь SCREW,BTN,TORX,W/WASHER
2
2563
Деталь SCREW,TORX SCKT,BTN HD
3
2647B
Деталь SCREW,HEX SOCK HD | (chrome)
4
3787
Деталь SCREW HEX CAP
5
4612
Деталь SCREW,PAN,TORX/PLASTITE
6
4694
Деталь SCREW,MACH,PAN,TORX,BLACK/LOCK
7
57300388
Деталь BODYWORK MISC CMPNT,SCREW,HEX
8
5118
Деталь TERMINAL,X
9
6703
Деталь WASHER,PLAIN,TYPE-A
10
7601
Деталь NUT,FLANGE LOCKING
11
10065
Деталь STRAP,TIE,CABLE
12
10177
Деталь CABLE STRAP,X-MAS TREE MOUNT
13
11668
Деталь FOAM PAD
14
58888-98A
Деталь BUMPER,FRNG-DOOR | fairing door
15
61313-88
Амортизатор ударов
16
72066-06A
Деталь HOUSING,4-WAY SOCKET,FEM | four-way socket (black)
17
72097-06
Деталь CAVITY PLUG,OVAL/ORANGE | orange
18
72135-06
Деталь SECONDARY LOCK,4-WAY,FEM/GRAY | four-way socket
19
72264-94
Деталь TERMINAL,18-20GA | 18-20 AWG
20
72484-08
Деталь TERMINAL,SOCKET,#20AWG | socket, 20 AWG
21
72486-08
Деталь WIRE SEAL,#20AWG,GREEN | 20 AWG (green)
22
72908-11
Деталь CONNECTOR,X | four-way socket (black)
23
72910-11
Деталь TERMINAL,SOCKET,#20-22AWG | socket, 20-22 AWG
24
73152-96BK
Деталь HOUSING,2-WAY,SCKT/BLACK | two-way socket (black)
25
73191-96
Деталь TERMINAL,SCKT,#16-20AWG | socket, 16-20 AWG
26
10200120
Деталь SCREW,HEX CAP,SAE GRADE 8
27
10200134
Деталь SEMS,HEX SOCKET CAP
28
29200137
Деталь AIR DUCT,LOWER,RH | with 4612 (right)
28
29200134
Деталь AIR DUCT,LOWER,LH | with 4612 (left) (not shown)
29
47200217
Деталь BRACKET,RADIO MNT,INR-FRNG
30
47200262
Деталь BRKT,FR FAIR SPRT,X | (right) (chrome)
30
47200261
Деталь BRKT,FR FAIR SPRT,X | (left) (chrome) (not shown)
31
47200266
Деталь BRACKET,INNER FAIRING MOUNT | inner fairing mount
32
57000305
Деталь FAIRING,INR,X | (unpainted)
32
57000374BYM
Деталь FAIRING,INR,X | (black denim)
33
57100247
Деталь FRNG LWR SUB-CMPNT,X | (chrome)
34
57200063
Деталь CHIN SPOILER,SIDE,RH | (right)
34
57200064
Деталь CHIN SPOILER,SIDE,LH | (left)
35
69200170
Деталь POWER OUTLET,FRNG MNTD | with 69200171
36
69200171
Деталь CAP,FRNG MNTD PWR OUTLET(PO)
37
69200248
Деталь WIRE HARNESS,POWER OUTLET JUMPER | power outlet jumper, with 12, 19, 24, 25 and 38
38
69200337
Деталь HOUSING,2-WAY SOCKET | two-way socket (gray)
39
69202786
Деталь GUIDE,WIRE,RH,HARNESS,MAIN | wire harness (right)
40
69200702
Деталь GUIDE LH,WIRE HARNESS,MAIN | wire harness (left)
41
69200753
Деталь WIRE HARNESS,GAUGE JUMPER | gauge jumper, with 8, 12, 16, 17, 18, 20, 21, 22 and 23
42
76000370A
Деталь STOR COMPT,MEDIA,ASSY | with 15 and 43 (right)
42
76000422
Деталь MEDIA STORAGE COMPT ASY,LH | with 15 and 43 (left) (not shown)
43
76000373
Деталь LINER,MEDIA COMPT,RH | media (right)
43
76000425
Деталь LINER,MEDIA COMPT,LH | media (left) (not shown)
44
76000376BYM
Деталь DOOR ASY,MEDIA STORAGE,RH, BLK DNM | storage, with 14 (black denim) (right)
44
76000426BYM
Деталь DOOR ASY,MEDIA STORAGE,LH, BLK DNM | storage, with 14 (left) (not shown) (black denim)
45
76000398
Деталь HINGE ASY,MEDIA STORAGE,RH | media storage (right)
45
76000436
Деталь HINGE ASY,MEDIA STORAGE,LH | media storage (left) (not shown)
46
76000458
Деталь SPEAKER ENCLOSURE,SUB-ASY,RH | with 11668 (right)
46
76000460
Деталь SPEAKER ENCLOSURE,SUB-ASY,LH | with 11668 (left) (not shown)
47
76001393
Деталь ENCL,SPKR,COVER | speaker enclosure
48
10201096
Деталь SCREW,SELF-TAPPING,BUTTON HEAD
49
76001248
Деталь STOR COMPT,MEDIA,GLOVEBOX,ASSY | includes 12100154, 12600070, 12600071
50
12100154
Деталь PLUG,PRFT,PANEL 1/2INCH DIA
51
12600070
Болт
52
12600071
Деталь RETAINER,BOLT | bolt
53
76000468
Деталь BRACKET,UPPER SUPPORT,RADIO | glove box
54
2478
Деталь SCREW,BUTTON TORX 10-24 X .50
55
12200025
Деталь RING,RETG,X | panel
56
76000454
Деталь SPEAKER GRILL,LH | speaker, left
56
76000453
Деталь SPEAKER GRILL,RH | speaker, right
57
76000456
Деталь GASKET,LH-SPEAKER GRILL | speaker grill, left
57
76000455
Деталь GASKET,RH-SPEAKER GRILL | speaker grill, right
