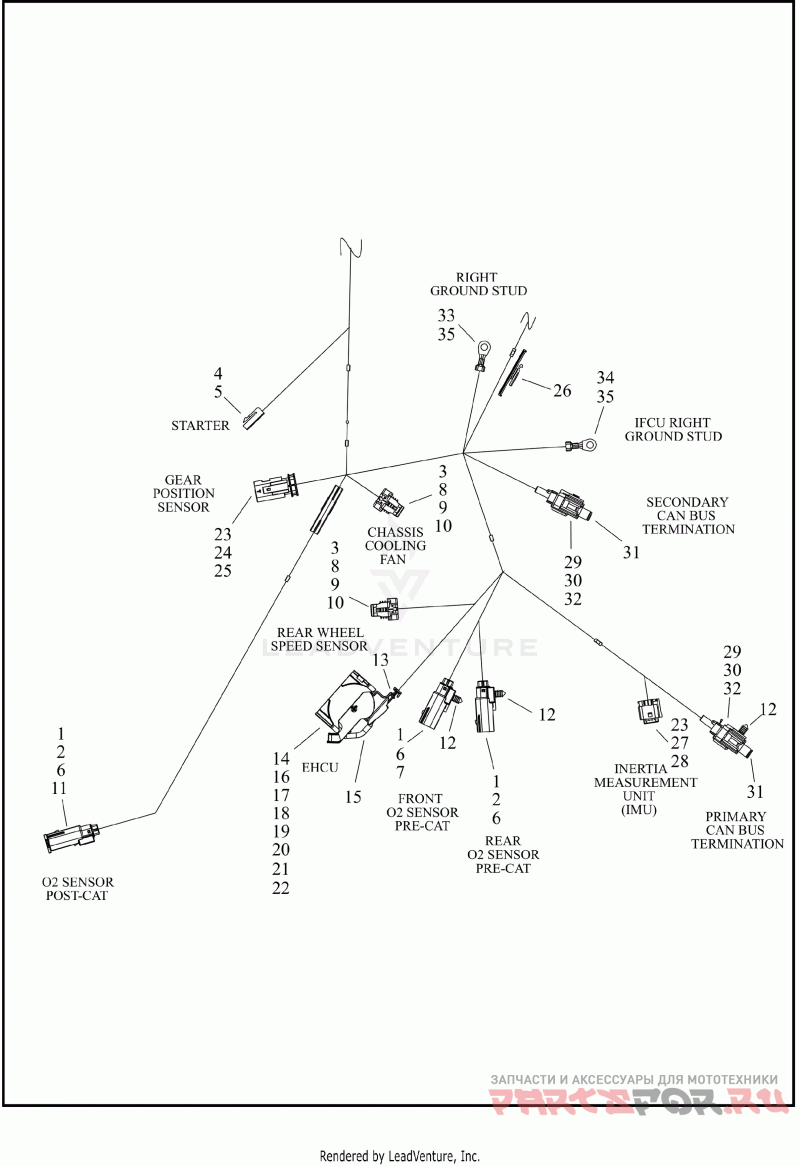

WIRING HARNESS, MAIN - FLTRX (6 OF 9)

Harley Davidson FLTRX 1KH7 ROAD GLIDE (2025)

Harley Davidson
#oem кодцена
69203607
Деталь HARNESS,WIRE,MAIN
1
72169-07
Деталь TERMINAL,PIN,#16-20 AWG | pin, 16-20 AWG, terminal location 1, 2
2
72175-07BK
Деталь HOUSING,4-WAY,PIN/BLACK | four-way pin
3
72213-94
Деталь TERMINAL SCKT 16-20AWG | socket, 16-20 AWG
4
72291-94
Деталь TERMINAL,14-16 GA,56 SERIES | socket 14-16 AWG
5
72295-94
Деталь HOUSING,STARTER CONN | starter housing
6
72343-10
Деталь TERMINAL,PIN,#16-20AWG/GOLD | pin, 16-20 AWG, terminal location 3, 4
7
72415-07GY
Деталь HOUSING,4-WAY,PIN/GREY | four-way pin (gray)
8
72606-08
Деталь HOUSING, 2-WAY SOCKET | two-way socket (black)
9
72609-08
Деталь SECONDARY LOCK, 2-WAY SCKT/BLACK | two-way socket
10
72610-08
Деталь SEAL, CABLE #18-20 AWG, WHITE | 18-20 AWG (white)
11
72632-10
Деталь PLUG,WEATHER,4-WAY PIN | weather, four-way pin
12
73213-07
Деталь RETAINER,X-MAS TREE CLIP | anchored
13
10065
Деталь STRAP,TIE,CABLE
14
69200183
Деталь CONNECTOR,26-WAY SOCKET(PO) | 26-way socket
15
69200184
Деталь COVER,90DEG-WIRE DRESS,26-WAY SCKT | 26-way socket
16
69200185
Деталь TERMINAL,SOCKET,#20 AWG,1.5(PO) | socket, 20 AWG, terminal location 10, 14, 15, 18, 20, 23, 24
17
69200186
Деталь TERMINAL,SOCKET,#14-16 AWG,2.8(PO) | socket, 14-16 AWG, terminal location 17, 26
18
69200187
Деталь TERMINAL,SOCKET,#12 AWG,4.8(PO) | socket, 12 AWG, terminal location 1, 9
19
69200188
Деталь WIRE SEAL,#20AWG,1.5(PO) | 20 AWG (gray) terminal location 10, 14, 15, 18, 20, 23, 24
20
69200189
Деталь WIRE SEAL,#14-16AWG,2.8(PO) | 14-16 AWG (brown) terminal location 17, 26
21
69200190
Деталь WIRE SEAL,#12AWG,4.8(PO) | 12 AWG (blue) terminal location 1, 9
22
69200191
Деталь SEAL PIN,PLUG,1.5(PO)
23
69201301
Деталь SEAL,CONN/TERM,X | 20-22 AWG (green)
24
69201407
Деталь SEAL,CONN/TERM,X | socket, 20 AWG
25
69201406
Деталь CONNECTOR,X | three-way socket, key A
26
69201722
Деталь WIRE HARN SUB-CMPNT,CLIP,YAZ-CON-TAPE | clip
27
69201779
Деталь CONNECTOR,IMU | four-way (black)
28
69201814
Деталь TERMINAL,SOCKET | socket
29
69202491
Деталь TERMINAL,PIN,0.64MM,0.3-0.5MM WIRE | pin, 20 AWG
30
69202492
Деталь SEAL,CONN/TERM,1.60-2.10MM OD | (green)
31
69202958
Деталь CONNECTOR,RESISTOR PACK,BLACK
32
69202959
Деталь CONNECTOR,2-WAY,PIN,BLACK | two-way pin (black)
33
9819
Деталь TERMINAL RING .25 STUD #12AWGX2 | ring, 12 AWG
34
69203209
Деталь TERMINAL | ring
35
69202219
Деталь CONDUIT,SHRINK TUBE,.350 IN/BLK
