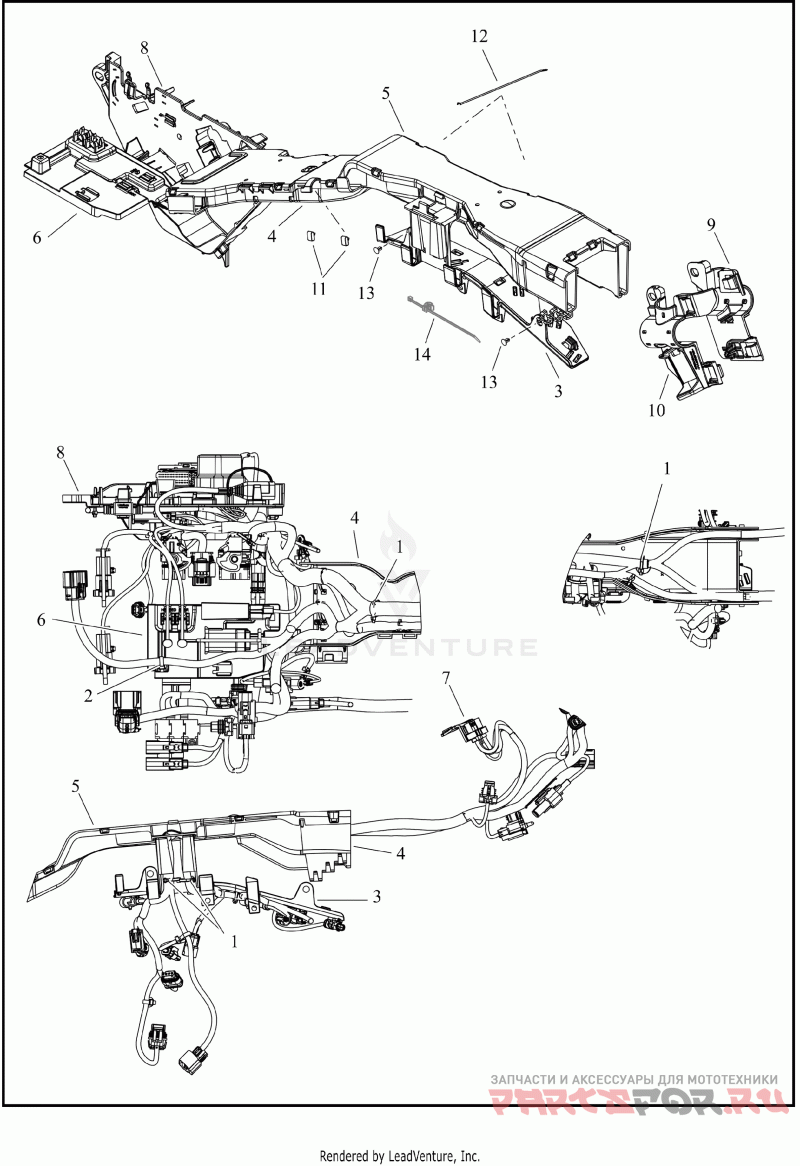

WIRING HARNESS, MAIN, CADDY AND ENCLOSURE
Harley Davidson FLTRX 1KH7 ROAD GLIDE (2025)
| # | oem код | название | цена |
|---|---|---|---|
1 | 10065 Деталь STRAP,TIE,CABLE | Деталь STRAP,TIE,CABLE | |
2 | 10177 Деталь CABLE STRAP,X-MAS TREE MOUNT | anchored | Деталь CABLE STRAP,X-MAS TREE MOUNT | anchored | |
3 | 69201287A Деталь BRKT,ELEC MT,PT CADDY | main, powertrain | Деталь BRKT,ELEC MT,PT CADDY | main, powertrain | |
4 | 69202720A Деталь BRKT,ELEC MT,WIRE TROUGH ASSEMBLY KIT | main, backbone, includes 69202637 | Деталь BRKT,ELEC MT,WIRE TROUGH ASSEMBLY KIT | main, backbone, includes 69202637 | |
5 | 69202636 Деталь BRKT,ELEC MT,COVER, WIRE TROUGH | main, trough | Деталь BRKT,ELEC MT,COVER, WIRE TROUGH | main, trough | |
6 | 69203046 Деталь BRKT,ELEC MT,BCM CADDY,TOP | main, BCM | Деталь BRKT,ELEC MT,BCM CADDY,TOP | main, BCM | |
7 | 69203096A Деталь BRKT,ELEC MT,UPPER TRIPLE CLAMP CADDY | main, upper triple clamp | Деталь BRKT,ELEC MT,UPPER TRIPLE CLAMP CADDY | main, upper triple clamp | |
8 | 69203010A Деталь BRKT,ELEC MT,ECM/FUSE BLK CADDY | main, ECM/fuse block | Деталь BRKT,ELEC MT,ECM/FUSE BLK CADDY | main, ECM/fuse block | |
11 | 69202637 Деталь BRKT,ELEC MT,ABS BRKLINE RETENTION CLIP | (ABS) | Деталь BRKT,ELEC MT,ABS BRKLINE RETENTION CLIP | (ABS) | |
12 | 10039 Деталь CABLE STRAP | Деталь CABLE STRAP | |
13 | 69202720A Деталь BRKT,ELEC MT,WIRE TROUGH ASSEMBLY KIT | plastic | Деталь BRKT,ELEC MT,WIRE TROUGH ASSEMBLY KIT | plastic | |
14 | 12200181 Деталь CLIP,RETG,TIE | wire clip | Деталь CLIP,RETG,TIE | wire clip |
