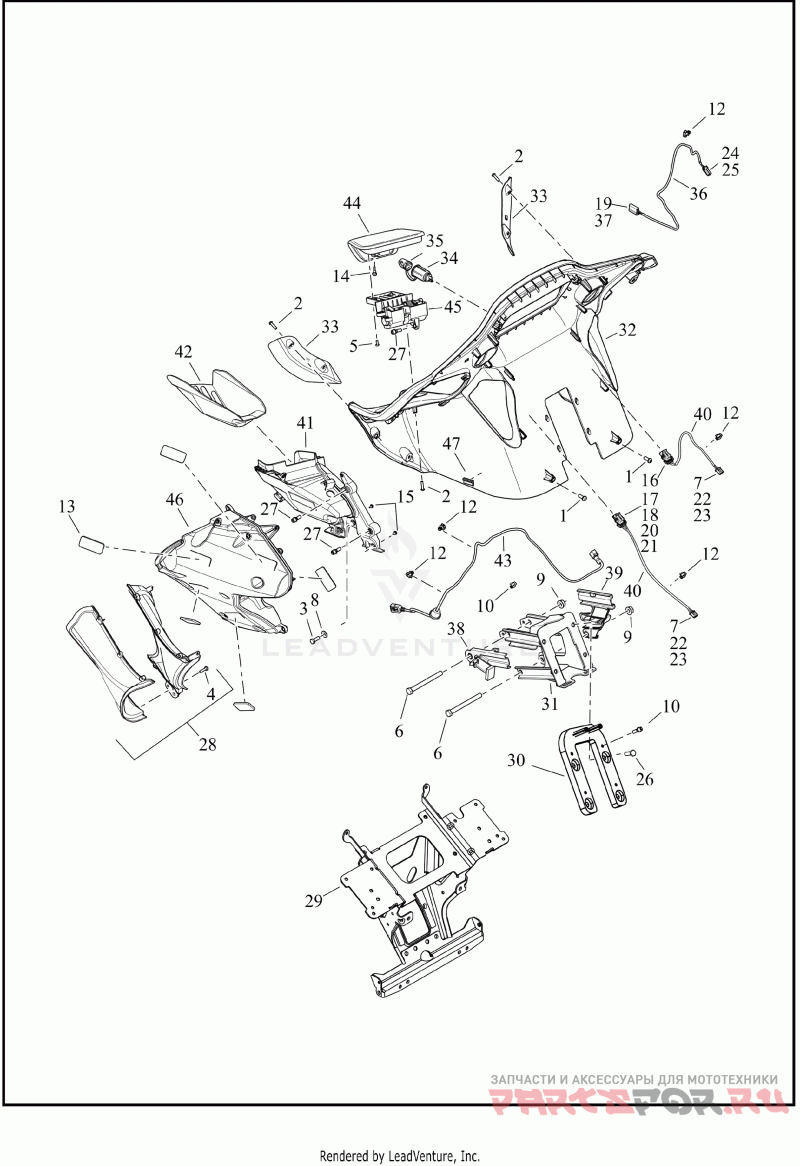

FAIRING, INNER - FLTRT

Harley Davidson FLTRT 1MFP ROAD GLIDE 3 (2025)

Harley Davidson
#oem кодцена
1
1062
Деталь SCREW,BTN,TORX,W/WASHER
2
2563
Деталь SCREW,TORX SCKT,BTN HD
3
3787
Деталь SCREW HEX CAP
4
4612
Деталь SCREW,PAN,TORX/PLASTITE
5
4694
Деталь SCREW,MACH,PAN,TORX,BLACK/LOCK
6
57300388
Деталь BODYWORK MISC CMPNT,SCREW,HEX
7
5118
Деталь TERMINAL,X
8
6703
Деталь WASHER,PLAIN,TYPE-A
9
7601
Деталь NUT,FLANGE LOCKING
10
882
Деталь SCREW,HEX SOCKET HEAD CAP, SEMS
11
10065
Деталь STRAP,TIE,CABLE
12
10177
Деталь CABLE STRAP,X-MAS TREE MOUNT
13
11668
Деталь FOAM PAD
14
58888-98A
Деталь BUMPER,FRNG-DOOR | fairing door
15
61313-88
Амортизатор ударов
16
72066-06A
Деталь HOUSING,4-WAY SOCKET,FEM | four-way socket (black)
17
72097-06
Деталь CAVITY PLUG,OVAL/ORANGE | orange
18
72135-06
Деталь SECONDARY LOCK,4-WAY,FEM/GRAY | four-way socket
19
72264-94
Деталь TERMINAL,18-20GA | 18-20 AWG
20
72484-08
Деталь TERMINAL,SOCKET,#20AWG | socket, 20 AWG
21
72486-08
Деталь WIRE SEAL,#20AWG,GREEN | 20 AWG (green)
22
72908-11
Деталь CONNECTOR,X | four-way socket (black)
23
72910-11
Деталь TERMINAL,SOCKET,#20-22AWG | socket, 20-22 AWG
24
73152-96BK
Деталь HOUSING,2-WAY,SCKT/BLACK | two-way socket (black)
25
73191-96
Деталь TERMINAL,SCKT,#16-20AWG | socket, 16-20 AWG
26
10200120
Деталь SCREW,HEX CAP,SAE GRADE 8
27
10200134
Деталь SEMS,HEX SOCKET CAP
28
29200137
Деталь AIR DUCT,LOWER,RH | with 4612 (right)
28
29200134
Деталь AIR DUCT,LOWER,LH | with 4612 (left) (not shown)
29
47200217
Деталь BRACKET,RADIO MNT,INR-FRNG
30
47200967
Деталь BRKT,FR FAIR SPRT,ASSEMBLY,BLACK | fairing support
31
47200266
Деталь BRACKET,INNER FAIRING MOUNT | inner fairing mount
32
57000305
Деталь FAIRING,INR,X | (unpainted)
32
57000374DH
Деталь FAIRING,INR,X | (vivid black)
33
57200063
Деталь CHIN SPOILER,SIDE,RH | (right)
33
57200064
Деталь CHIN SPOILER,SIDE,LH | (left)
34
69200170
Деталь POWER OUTLET,FRNG MNTD | with 69200171
35
69200171
Деталь CAP,FRNG MNTD PWR OUTLET(PO)
36
69200248
Деталь WIRE HARNESS,POWER OUTLET JUMPER | power outlet jumper, with 12, 19, 24, 25 and 37
37
69200337
Деталь HOUSING,2-WAY SOCKET | two-way socket (gray)
38
69202786
Деталь GUIDE,WIRE,RH,HARNESS,MAIN | wire harness (right)
39
69200702
Деталь GUIDE LH,WIRE HARNESS,MAIN | wire harness (left)
40
69200753
Деталь WIRE HARNESS,GAUGE JUMPER | gauge jumper, with 7, 12, 16, 17, 18, 20, 21, 22 and 23
41
76000370A
Деталь STOR COMPT,MEDIA,ASSY | with 15, 42 and 43 (right)
41
76000422
Деталь MEDIA STORAGE COMPT ASY,LH | with 15 and 42 (left) (not shown)
42
76000373
Деталь LINER,MEDIA COMPT,RH | media (right)
42
76000425
Деталь LINER,MEDIA COMPT,LH | media (left) (not shown)
43
76000374A
Деталь STOR COMPT,MEDIA,USB CABLE
44
76000376DH
Деталь MEDIA DOOR ASY,RH STORAGE | storage, with 14 (right) (vivid black)
44
76000426DH
Деталь MEDIA DOOR ASY,LH STORAGE | storage, with 14 (left) (not shown) (vivid black)
45
76000398
Деталь HINGE ASY,MEDIA STORAGE,RH | media storage (right)
45
76000436
Деталь HINGE ASY,MEDIA STORAGE,LH | media storage (left) (not shown)
46
76000458
Деталь SPEAKER ENCLOSURE,SUB-ASY,RH | with 11668 (right)
46
76000460
Деталь SPEAKER ENCLOSURE,SUB-ASY,LH | with 11668 (left) (not shown)
47
69201863
Деталь ELEC MISC CMPNT,WIRE RETAINER
