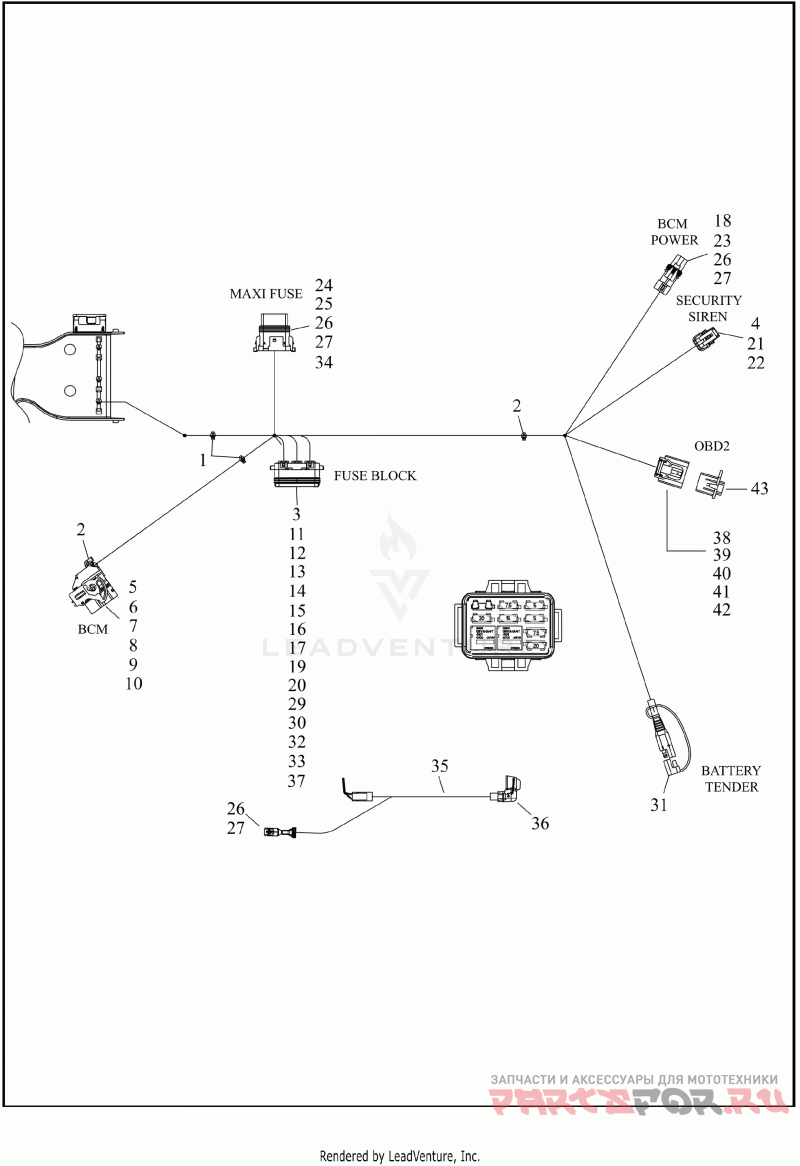

Деталь HARNESS,WIRE,MAIN,W/ABS,FLRT | (Australia, California, Canada, Domestic)

Деталь HARNESS,WIRE,MAIN,W/ABS,FLRT | (England, HDI)

Деталь STRAP,TIE,X

Деталь STRAP,TIE,CABLE

Деталь RELAY,ULTRA-MICRO,280,SPST

Деталь HOUSING,3-WAY,FEM,SCKT,VSS | three-way socket (black)

Деталь HOUSING,48-WAY SOCKET | 48-way socket (black)

Деталь WIRE HARN SUB-CMPNT,COVER | wire

Деталь TERMINAL(0.6MM)SCKT,#18-20AWG(PO) | socket, 18-20 AWG, terminal location A2, A4, B2, C3, C4, D2, D3, D4, E2, E4, F3, F4, G2, G4, H2, J2, J3, J4, K2, K3, K4

Деталь TERMINAL(1.5MM)SCKT,#14-16AWG | socket, 14-16 AWG, terminal location L2, M3, M4

Деталь TERMINAL(1.5MM)SCKT,#18-20AWG | socket, 18-20 AWG, terminal location L3, L4, M2

Деталь SEAL PIN,0.6MM,PLUG | (white) 0.6 mm, terminal location A3, B4, C2, E3, F2, G3, H3, H4

Деталь FUSE TERM | socket, 14-16 AWG, terminal location 12, 17

Деталь CABLE SEAL | terminal location 12, 17

Деталь CAVITY PLUG | (green) terminal location 5, 6, 8, 19

Деталь TERMINAL, FEMALE, #12-12 AWG | socket, 12-14 AWG, terminal location 1, 9, 11

Деталь FUSE 15 AMP BLUE | 15 A (blue)

Деталь FUSE,5 AMP,MINI-BLADE,LT TAN | 5 A (tan)

Деталь FUSE,MINI TYPE,20AMP/YELLOW | 20 A (yellow)

Деталь HOUSING,ONE-WAY | one-way socket (black)

Деталь TERMINAL,SCKT,#18-20AWG | socket, 18-20 AWG, terminal location 2, 3, 4, 7, 10, 13, 14, 15, 16, 18, 20, 21, 22, 23, 24

Деталь SEAL CABLE #12-14 AWG | 12-14 AWG (gray), terminal location 1, 9, 11

Деталь TERMINAL,SOCKET,#20AWG | socket, 20 AWG

Деталь WIRE SEAL,#20AWG,GREEN | 20 AWG (green)

Деталь SECONDARY LOCK | one-way socket

Деталь HSG 2-WAY PIN | two-way pin (black)

Деталь SECONDARY LOCK,2WAY,FEM | two-way socket

Деталь TERMINAL .31FEM 10AWG | socket, 10 AWG

Деталь SEAL WIRE 10AWG BLUE | 10 AWG (blue)

Деталь CLOTH,HARNESS WRAP | (not shown)

Деталь FUSEBLOCK | 24-way socket

Деталь WIRE SEAL,#18-20AWG | (purple), terminal location 2, 3, 4, 7, 10, 13, 14, 15, 16, 18, 20, 21, 22, 23, 24

Деталь CONNECTOR,BATTERY TNDR OVER-MOLD-PO | battery tender

Деталь FUSE,7.5A MINI,BROWN | 7.5 A (brown)

Деталь SECONDARY LOCK,FUSEBLOCK | fuse block

Деталь FUSE,50A MAXI,RED | main 50 A (red)

Деталь WIRE HARN SUB-CMPNT,POS CABLE ASSY | positive cable, with 26, 27 and 36

Деталь BOOT,POS CABLE ASY,WIRE HARNESS | battery positive

Деталь COVER,FUSE BLOCK | fuse block

Деталь CONNECTOR,HOUSING,6-WAY,RED | six-way socket, (red)

Деталь CONNECTOR,TERMINAL RETAINER, OBD2 | six-way

Деталь SEAL,CONN/TERM,PLUG | socket, 22 AWG

Деталь TERMINAL,FEMALE, 0.3 SQ MM | socket, 22 AWG

Деталь SEAL,CONN/TERM,1.6-1.7 MM | 1.6-1.7 MM

Деталь CONNECTOR,CAP
