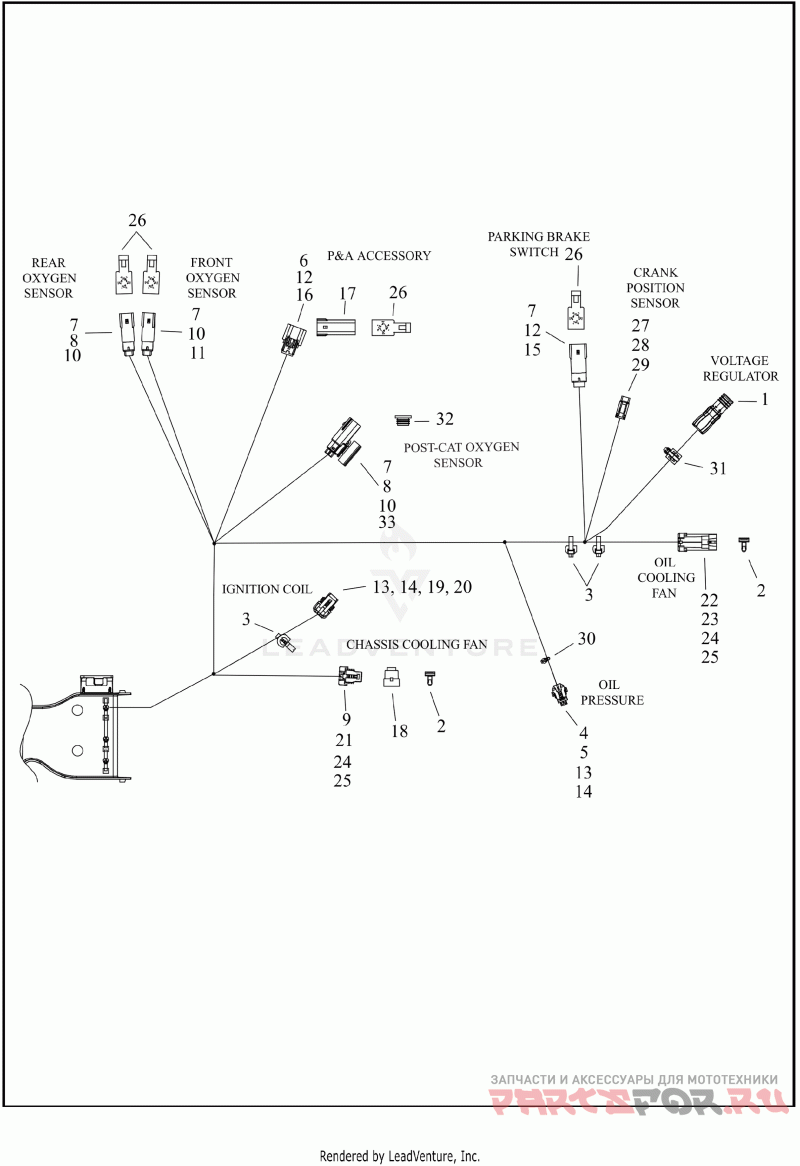

WIRING HARNESS, MAIN - FLRT (7 OF 10)

Harley Davidson FLRT 1MCP FREEWHEELER (2025)

Harley Davidson
#oem кодцена
69203637
Деталь HARNESS,WIRE,MAIN,W/ABS,FLRT | (Australia, California, Canada, Domestic)
69203635
Деталь HARNESS,WIRE,MAIN,W/ABS,FLRT | (England, HDI)
1
69201423
Деталь WIRE HARN SUB-CMPNT,DC LEAD ASY | two-way socket
2
10147
Деталь RING,RETG,X | connector
3
10177
Деталь CABLE STRAP,X-MAS TREE MOUNT | anchored
4
72065-06A
Деталь HOUSING, 3-WAY SOCKET | three-way socket (black)
5
72127-06
Деталь SECONDARY LOCK,3-WAY.FEM/GRAY | three-way socket
6
72168-07
Деталь TERMINAL,SOCKET,#18-20 AWG | socket, 18-20 AWG
7
72169-07
Деталь TERMINAL,PIN,#16-20 AWG | pin, 16-20 AWG, terminal location 1, 2
8
72175-07BK
Деталь HOUSING,4-WAY,PIN/BLACK | four-way pin (black)
9
72213-94
Деталь TERMINAL SCKT 16-20AWG | socket, 16-20 AWG
10
72343-10
Деталь TERMINAL,PIN,#16-20AWG/GOLD | pin, 16-20 AWG, terminal location 3, 4
11
72415-07GY
Деталь HOUSING,4-WAY,PIN/GREY | four-way pin (gray)
12
72473-07
Деталь SEAL PIN
13
72484-08
Деталь TERMINAL,SOCKET,#20AWG | socket, 20 AWG
14
72486-08
Деталь WIRE SEAL,#20AWG,GREEN | 20 AWG (green)
15
72511-07BK
Деталь HOUSING, 3-WAY PIN, BLACK | three-way pin (black)
16
72512-07BK
Деталь HOUSING,3-WAY,SCKT/BLACK | three-way socket (black)
17
72519-09BK
Деталь DUSTCAP,3-WAY SOCKET | weather, three-way socket
18
72533-06
Деталь DUST CAP,2-PIN CONN | weather, two-way pin
19
72544-07
Деталь SECONDARY LOCK,3-WAY,FEM | three-way socket
20
72589-09
Деталь HOUSING, 3-WAY SOCKETS | three-way socket (black)
21
72606-08
Деталь HOUSING, 2-WAY SOCKET | two-way socket (black)
22
72607-08
Деталь HOUSING, 2-WAY PIN | two-way pin (black)
23
72608-08
Деталь TERMINAL,PIN,16-20AWG,150 METRI-PACK | pin, 16-20 AWG
24
72609-08
Деталь SECONDARY LOCK, 2-WAY SCKT/BLACK | two-way socket
25
72610-08
Деталь SEAL, CABLE #18-20 AWG, WHITE | 18-20 AWG (white)
26
73213-07
Деталь RETAINER,X-MAS TREE CLIP | anchored
27
74112-98BK
Деталь HSG 2 WAY SOCKET BLACK | two-way socket (black)
28
74152-98
Деталь SECONDARY LOCK,2WAY,SCKT | two-way socket
29
74191-98
Деталь SOCKET TERMINAL | socket, 16-20 AWG
30
12500014
Деталь CABLE STRAP
31
12500018
Деталь STRAP,TIE,XMAS,2 PIECE
32
72632-10
Деталь PLUG,WEATHER,4-WAY PIN
33
69203520
Деталь BRKT,ELEC MT,CLIP
