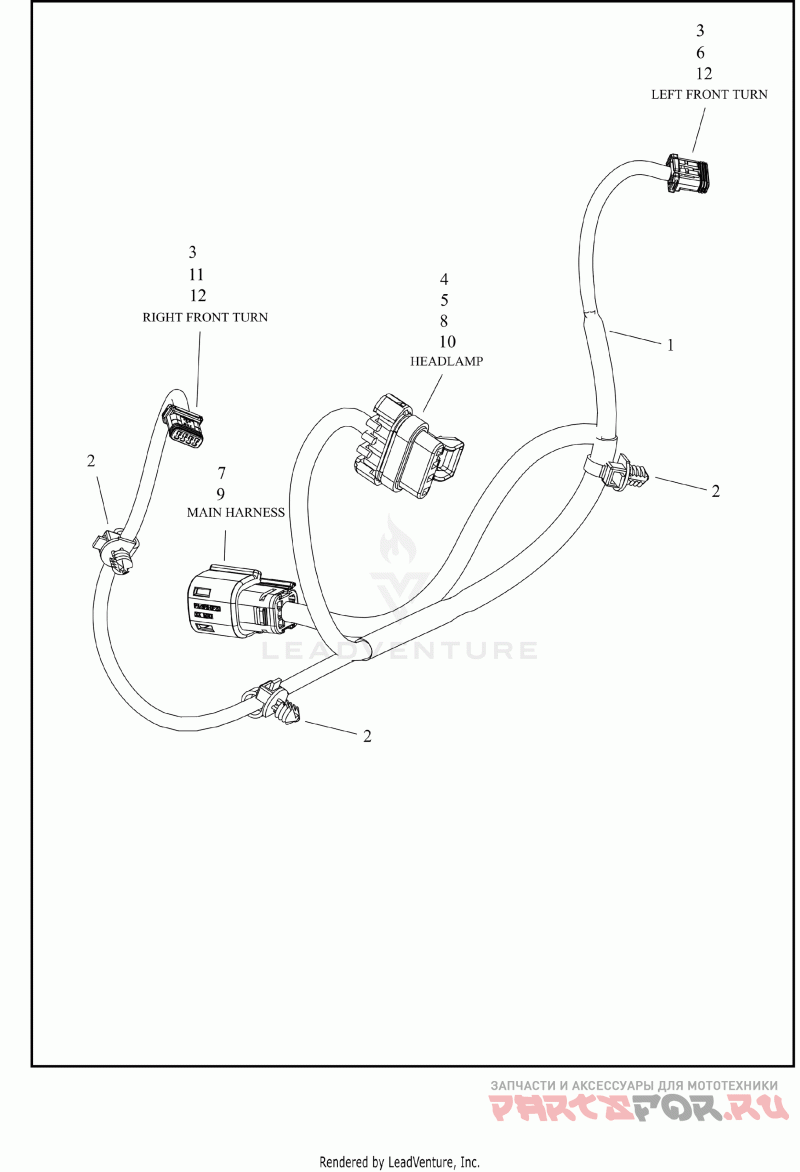

WIRING HARNESS, OUTER FAIRING
Harley Davidson FLHXSE 1PX6 CVO STREET GLIDE (2025)
| # | oem код | название | цена |
|---|---|---|---|
1 | 69202986 Деталь HARNESS,WIRE,OUTER FAIRING | outer fairing (all except China) | Деталь HARNESS,WIRE,OUTER FAIRING | outer fairing (all except China) | |
1 | 69203191 Деталь HARNESS,WIRE,OUTER FAIRING, CHN | outer fairing (China) | Деталь HARNESS,WIRE,OUTER FAIRING, CHN | outer fairing (China) | |
2 | 10177 Деталь CABLE STRAP,X-MAS TREE MOUNT | double loop | Деталь CABLE STRAP,X-MAS TREE MOUNT | double loop | |
3 | 5118 Деталь TERMINAL,X | (except China) | Деталь TERMINAL,X | (except China) | |
4 | 69200254 Деталь CONNECTOR,4-WAY SOCKET(PO) | four way, socket | Деталь CONNECTOR,4-WAY SOCKET(PO) | four way, socket | |
5 | 69200256 Деталь LOCK, SECONDARY, 4WAY | secondary, four way | Деталь LOCK, SECONDARY, 4WAY | secondary, four way | |
6 | 69201179 Деталь CONNECTOR,X | four way, socket (gray) | Деталь CONNECTOR,X | four way, socket (gray) | |
7 | 72168-07 Деталь TERMINAL,SOCKET,#18-20 AWG | socket, 18-20 AWG | Деталь TERMINAL,SOCKET,#18-20 AWG | socket, 18-20 AWG | |
8 | 72213-94 Деталь TERMINAL SCKT 16-20AWG | socket, 16-20 AWG | Деталь TERMINAL SCKT 16-20AWG | socket, 16-20 AWG | |
9 | 72414-07BK Деталь HOUSING, 6-WAY SOCKET, BLACK | six way, socket (black) | Деталь HOUSING, 6-WAY SOCKET, BLACK | six way, socket (black) | |
10 | 72610-08 Деталь SEAL, CABLE #18-20 AWG, WHITE | 18- 20 AWG, white | Деталь SEAL, CABLE #18-20 AWG, WHITE | 18- 20 AWG, white | |
11 | 72908-11 Деталь CONNECTOR,X | four way, socket | Деталь CONNECTOR,X | four way, socket | |
12 | 72910-11 Деталь TERMINAL,SOCKET,#20-22AWG | socket, 20-22 AWG, (except China) | Деталь TERMINAL,SOCKET,#20-22AWG | socket, 20-22 AWG, (except China) |
