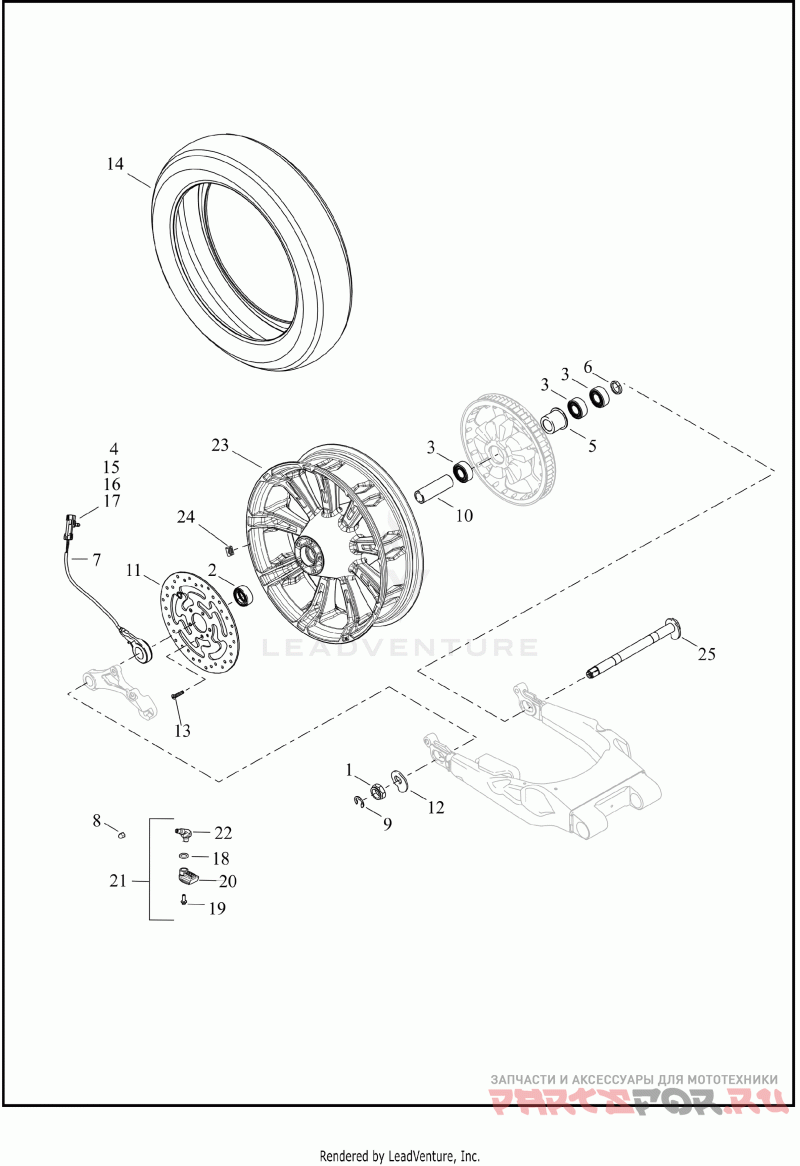

Колесо заднее
Harley Davidson FLHXSE 1PX6 CVO STREET GLIDE (2025)
| # | oem код | название | цена |
|---|---|---|---|
1 | 8020 Деталь HEX NUT,SLOTTED | slotted | Деталь HEX NUT,SLOTTED | slotted | |
2 | 9252A Деталь BEARING,ROLL ELEM,ABS WHEEL | with encoder, ABS | Деталь BEARING,ROLL ELEM,ABS WHEEL | with encoder, ABS | |
3 | 9276B Деталь BEARING,ROLL ELEM,NON-ABS WHEEL BEARING | Деталь BEARING,ROLL ELEM,NON-ABS WHEEL BEARING | |
4 | 10147 Деталь RING,RETG,X | connector | Деталь RING,RETG,X | connector | |
5 | 11843 Деталь SPACER,RR WHL BRG,COMPENSATOR | compensator | Деталь SPACER,RR WHL BRG,COMPENSATOR | compensator | |
6 | 11848 Деталь SPACER,LH,RR WHL,ZINC PLT | Деталь SPACER,LH,RR WHL,ZINC PLT | |
7 | 40615-08 Деталь SENSOR,WHL SPEED (WSS) | wheel speed, ABS, with 10147, 72607-08, 72608-08, 72639-10 | Деталь SENSOR,WHL SPEED (WSS) | wheel speed, ABS, with 10147, 72607-08, 72608-08, 72639-10 | |
8 | 42300093 Деталь CAP,VALVE STEM,ACORN,W/BAR &SHIELD,GBLK | tire valve acorn (gloss black) | Деталь CAP,VALVE STEM,ACORN,W/BAR &SHIELD,GBLK | tire valve acorn (gloss black) | |
9 | 41229-08 Деталь RETAINING RING | Деталь RETAINING RING | |
10 | 41349-07 Деталь SLEEVE,BRG SPACER | bearing spacer | Деталь SLEEVE,BRG SPACER | bearing spacer | |
11 | 41810-08C Деталь ROTOR,BRK,RR | Деталь ROTOR,BRK,RR | |
12 | 43000203 Деталь AXLE,RR,CAM ADJUSTER,PLATED | Деталь AXLE,RR,CAM ADJUSTER,PLATED | |
13 | 43567-92 Деталь SCREW,X | Деталь SCREW,X | |
14 | 43200045A Деталь TIRE,RR,180/55B18M/C 80H DUN HD D407T | Деталь TIRE,RR,180/55B18M/C 80H DUN HD D407T | |
15 | 72607-08 Деталь HOUSING, 2-WAY PIN | two-way pin (black) | Деталь HOUSING, 2-WAY PIN | two-way pin (black) | |
16 | 72608-08 Деталь TERMINAL,PIN,16-20AWG,150 METRI-PACK | pin, 16-20 AWG | Деталь TERMINAL,PIN,16-20AWG,150 METRI-PACK | pin, 16-20 AWG | |
17 | 72639-10 Деталь SECONDARY LOCK,2-WAY SCKT,CONDUIT | two-way socket (black) | Деталь SECONDARY LOCK,2-WAY SCKT,CONDUIT | two-way socket (black) | |
18 | 11900155 Деталь O-RING,TPMS,-112 | Деталь O-RING,TPMS,-112 | |
19 | 10201167 Деталь SCREW,TPMS | Деталь SCREW,TPMS | |
20 | 42300139 Деталь MONITOR,TIRE PRESS,434MHZ,KEYED | (All except Japan) | Деталь MONITOR,TIRE PRESS,434MHZ,KEYED | (All except Japan) | |
20 | 42300140 Деталь MONITOR,TIRE PRESS,315MHZ,KEYED | (Japan only) | Деталь MONITOR,TIRE PRESS,315MHZ,KEYED | (Japan only) | |
21 | 42300145 Деталь MONITOR,TIRE PRESS,ASSY,434MHZ,116DEG | includes 10201167, 11900155, 42300139, 42300144 (all except Japan, JP2) | Деталь MONITOR,TIRE PRESS,ASSY,434MHZ,116DEG | includes 10201167, 11900155, 42300139, 42300144 (all except Japan, JP2) | |
21 | 42300146 Деталь MONITOR,TIRE PRESS,ASSY,315MHZ,116DEG | includes 10201167, 11900155, 42300140, 42300144 (Japan, JP2 only) | Деталь MONITOR,TIRE PRESS,ASSY,315MHZ,116DEG | includes 10201167, 11900155, 42300140, 42300144 (Japan, JP2 only) | |
22 | 42300144 Деталь VALVE STEM,116 DEG,BLK | 116 degree angle (black) | Деталь VALVE STEM,116 DEG,BLK | 116 degree angle (black) | |
23 | 40900929 Деталь WHEEL | 9-spoke (gloss black/chrome) (traditional M30 paint scheme) | Деталь WHEEL | 9-spoke (gloss black/chrome) (traditional M30 paint scheme) | |
23 | 40900953 Деталь WHL,RR,9SPK,GBLK/SCCHRM,18X5 | (gloss black/scorched chrome) (transitional M31 paint scheme, stretch M32 paint scheme) | Деталь WHL,RR,9SPK,GBLK/SCCHRM,18X5 | (gloss black/scorched chrome) (transitional M31 paint scheme, stretch M32 paint scheme) | |
24 | 42300001A Деталь WEIGHT,WHL,.50OZ,BAR&SHLD,BLK | 1/2 oz. cast wheels (black) | Деталь WEIGHT,WHL,.50OZ,BAR&SHLD,BLK | 1/2 oz. cast wheels (black) | |
25 | 43000207 Деталь AXLE,RR,ASSEMBLY | rear | Деталь AXLE,RR,ASSEMBLY | rear |
