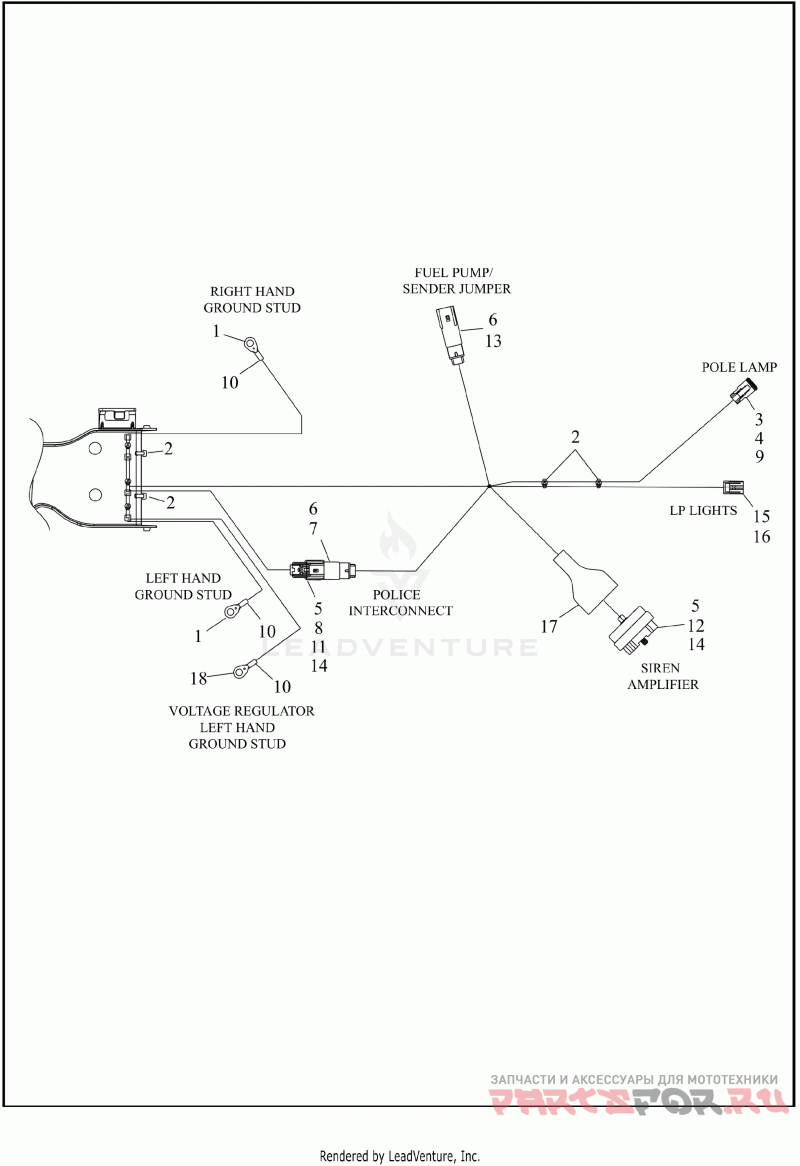

WIRING HARNESS, MAIN, ABS - FLHTP (5 OF 9)
Harley Davidson FLHTP 1FMP POLICE ELECTRA GLIDE (2025)
| # | oem код | название | цена |
|---|---|---|---|
69202223A Деталь HARNESS,WIRE,MAIN,W/ABS,ECC,FLHTP | Деталь HARNESS,WIRE,MAIN,W/ABS,ECC,FLHTP | ||
1 | 9819 Деталь TERMINAL RING .25 STUD #12AWGX2 | ring, 12 AWG | Деталь TERMINAL RING .25 STUD #12AWGX2 | ring, 12 AWG | |
2 | 10065 Деталь STRAP,TIE,CABLE | Деталь STRAP,TIE,CABLE | |
3 | 72112-94BK Деталь SOCKET HSG,SEALED 2 | two-way socket (black) | Деталь SOCKET HSG,SEALED 2 | two-way socket (black) | |
4 | 72152-94 Деталь SECONDARY LOCK,2WAY,SCKT | two-way socket | Деталь SECONDARY LOCK,2WAY,SCKT | two-way socket | |
5 | 72168-07 Деталь TERMINAL,SOCKET,#18-20 AWG | socket, 18-20 AWG | Деталь TERMINAL,SOCKET,#18-20 AWG | socket, 18-20 AWG | |
6 | 72169-07 Деталь TERMINAL,PIN,#16-20 AWG | pin, 16-20 AWG | Деталь TERMINAL,PIN,#16-20 AWG | pin, 16-20 AWG | |
7 | 72175-07BK Деталь HOUSING,4-WAY,PIN/BLACK | four-way pin (black) | Деталь HOUSING,4-WAY,PIN/BLACK | four-way pin (black) | |
8 | 72177-07BK Деталь HOUSING,4-WAY,SCKT,BLACK | four-way socket (black) | Деталь HOUSING,4-WAY,SCKT,BLACK | four-way socket (black) | |
9 | 72191-94 Деталь TERMINAL,SCKT,#16-18AWG | socket, 16-18 AWG | Деталь TERMINAL,SCKT,#16-18AWG | socket, 16-18 AWG | |
10 | 69202219 Деталь CONDUIT,SHRINK TUBE,.350 IN/BLK | .415 x 1 in (black) | Деталь CONDUIT,SHRINK TUBE,.350 IN/BLK | .415 x 1 in (black) | |
11 | 72272-07 Деталь TERMINAL, SOCKET #14-16 AWG | socket, 14-16 AWG, terminal location 1 | Деталь TERMINAL, SOCKET #14-16 AWG | socket, 14-16 AWG, terminal location 1 | |
12 | 72487-07BK Деталь HOUSING, 12-WAY SOCKET, BLACK | 12-way socket (black) | Деталь HOUSING, 12-WAY SOCKET, BLACK | 12-way socket (black) | |
13 | 72415-07GY Деталь HOUSING,4-WAY,PIN/GREY | four-way pin (gray) | Деталь HOUSING,4-WAY,PIN/GREY | four-way pin (gray) | |
14 | 72473-07 Деталь SEAL PIN | (natural) | Деталь SEAL PIN | (natural) | |
15 | 73153-96BK Деталь HSG SOCKET,3-PLC,BLACK | three-way socket (black) | Деталь HSG SOCKET,3-PLC,BLACK | three-way socket (black) | |
16 | 73191-96 Деталь TERMINAL,SCKT,#16-20AWG | socket, 16-20 AWG | Деталь TERMINAL,SCKT,#16-20AWG | socket, 16-20 AWG | |
17 | 74413-93 Деталь CONNECTOR BOOT | siren amplifier connector | Деталь CONNECTOR BOOT | siren amplifier connector | |
18 | 69201596 Деталь TERMINAL,RING,1/4 | ring, 8-10 AWG | Деталь TERMINAL,RING,1/4 | ring, 8-10 AWG |
