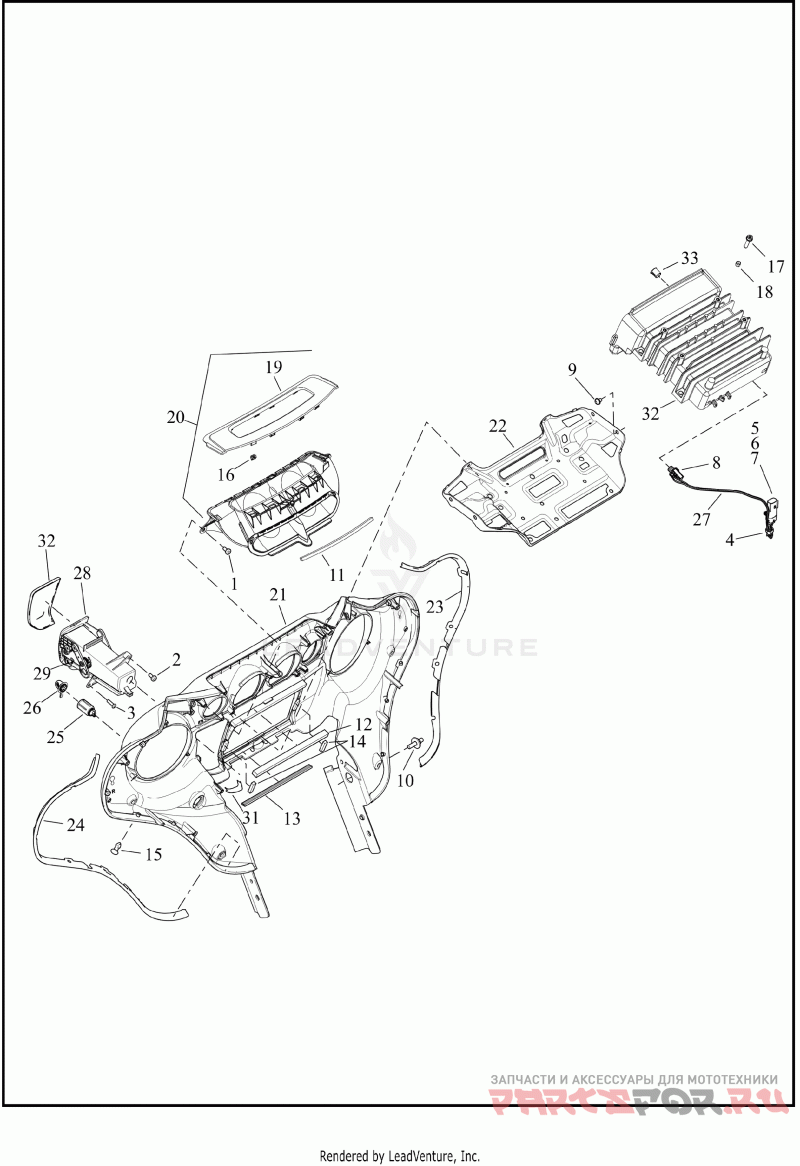

FAIRING, INNER - FLHTP

Harley Davidson FLHTP 1FMP POLICE ELECTRA GLIDE (2025)

Harley Davidson
#oem кодцена
1
2445
Деталь SCREW,BTN HD,SEMS
2
2478
Деталь SCREW,BUTTON TORX 10-24 X .50
3
2563
Деталь SCREW,TORX SCKT,BTN HD
4
10065
Деталь STRAP,TIE,CABLE
5
72169-07
Деталь TERMINAL,PIN,#16-20 AWG | pin, 16-20 AWG
6
72513-07GY
Деталь HOUSING, 3-WAY PIN, GRAY | three-way pin (gray)
7
73213-07
Деталь RETAINER,X-MAS TREE CLIP | anchored
8
76233-85
Деталь JACK RECEPTACLE | microphone
9
10200141
Деталь SCREW,1/4-20,HEX BTN,SEMS,.50 LG
10
10900005
Деталь STUD,DBL SIDED,SEMS 5/16-16 UNC | double sided
11
11100038
Деталь FOAM TAPE, 1/4" X 1/4"
12
11100050
Деталь TAPE,ISOL,X
13
11100051
Деталь FOAM TAPE,RIBBED
14
11100057
Деталь TAPE,ISOL,X
15
12100034
Деталь PLUG,PRFT,X | air deflector hole
16
12200064
Деталь CLIP,PANEL | panel
17
12600070
Болт
18
12600071
Деталь RETAINER,BOLT | bolt
19
29200087A
Деталь BEZEL,AIR DUCT,INNER FAIRING | air duct, inner fairing, with 12200064
20
29200088A
Деталь AIR DUCT,ASSEMBLY,INNER FAIRING | inner fairing, with 11100038 and 29200087A
21
57000064BYM
Деталь INR-FRNG ASY,SOLID | with 11100050, 11100051, 11100057, 61400063, 61400064 and 76000234 (satin black)
22
57000186A
Деталь FAIRING,INR,SUPPORT BRACKET | support, inner fairing
23
61400063
Деталь TRIM,MISC DECO,X | inner fairing (left)
24
61400064
Деталь TRIM,RH-INR FRNG(PO) | inner fairing (right)
25
69200170
Деталь POWER OUTLET,FRNG MNTD | fairing, with 69200171
26
69200171
Деталь CAP,FRNG MNTD PWR OUTLET(PO) | power outlet
27
69200339
Деталь WIRE HARNESS,MIC JACK JUMPER | microphone jack jumper, with 10065, 72169-07, 72513-07GY, 73213-07 and 76233-85
28
76000944
Деталь STOR COMPT,MEDIA,W/O CHARGER | with 76000127
29
76000127
Деталь STOR COMPT,MEDIA,LATCH,PUSH-PUSH
30
76000943
Деталь STOR COMPT,MEDIA,GLOVEBOX ASSY | with 12100154, 12600070 and 12600071
31
76000234
Деталь STOR COMPT,MEDIA,X | media storage
32
76000409BYM
Деталь OUTER DOOR,MED COMP,SOLID | media compartment, outer
33
12100154
Деталь PLUG,PRFT,PANEL 1/2INCH DIA
