Задний фонарь
Harley Davidson FLHTP 1FMP POLICE ELECTRA GLIDE (2025)

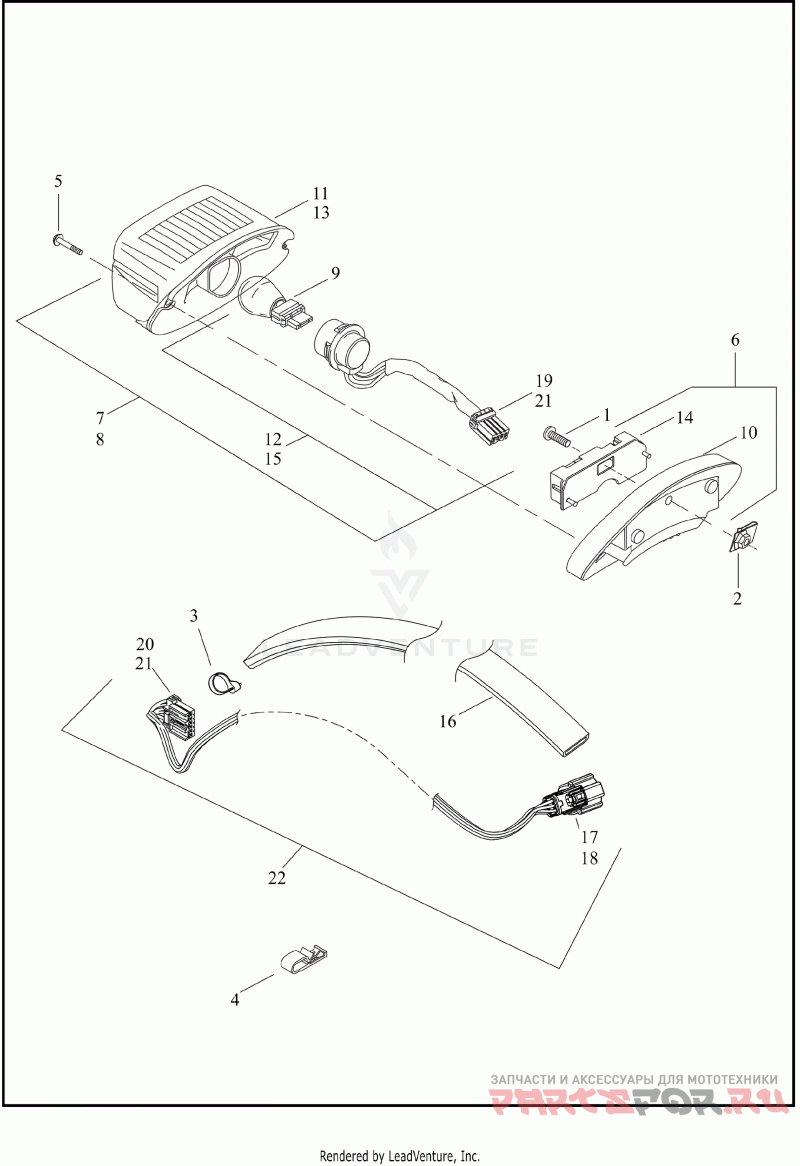

| # | oem код | название | цена |
|---|---|---|---|
1 | 3022A Деталь SCREW,SEMS/X-RECESS,W/DOG POINT | Деталь SCREW,SEMS/X-RECESS,W/DOG POINT | |
2 | 7964 Деталь NUT STAKED J-TYPE 1/4-20 | Деталь NUT STAKED J-TYPE 1/4-20 | |
3 | 10006 Деталь STRAP,TIE,X | Деталь STRAP,TIE,X | |
4 | 10183 Деталь CLIP,T-STUD | T-stud | Деталь CLIP,T-STUD | T-stud | |
5 | 68026-99 Деталь SCREW,PAN HD,W/DOG POINT | Деталь SCREW,PAN HD,W/DOG POINT | |
6 | 68066-99A Деталь BASE ASY,T-LITE,CHROME | with 68296-99A and 68830-99A | Деталь BASE ASY,T-LITE,CHROME | with 68296-99A and 68830-99A | |
7 | 68140-04 Деталь ENVELOPE ASY,T-LAMP/DOM | tail lamp, with 68369-03 and 68370-03A (Domestic) | Деталь ENVELOPE ASY,T-LAMP/DOM | tail lamp, with 68369-03 and 68370-03A (Domestic) | |
8 | 68142-04 Деталь ENVELOPE ASY,T-LAMP/HDI/RED LENS | tail lamp, with 68558-03 and 69187-03A (HDI) | Деталь ENVELOPE ASY,T-LAMP/HDI/RED LENS | tail lamp, with 68558-03 and 69187-03A (HDI) | |
9 | 68167-04 Деталь BULB,WEDGE BASE,3157K | tail lamp, wedge mount | Деталь BULB,WEDGE BASE,3157K | tail lamp, wedge mount | |
10 | 68296-99A Деталь BASE, TAILLIGHT, CHROME | (chrome) | Деталь BASE, TAILLIGHT, CHROME | (chrome) | |
11 | 68369-03 Деталь ENVELOPE,T-LAMP/DOM | tail lamp, with 68026-99 (Domestic) | Деталь ENVELOPE,T-LAMP/DOM | tail lamp, with 68026-99 (Domestic) | |
12 | 68370-03A Деталь SOCKET ASY,T-LITE/DOM | tail lamp, with 68167-04, 73154-96BK and 73191-96 (Domestic) | Деталь SOCKET ASY,T-LITE/DOM | tail lamp, with 68167-04, 73154-96BK and 73191-96 (Domestic) | |
13 | 68558-03 Деталь TAIL LIGHT, HDI, RED | tail lamp, with 68026-99 (HDI) | Деталь TAIL LIGHT, HDI, RED | tail lamp, with 68026-99 (HDI) | |
14 | 68830-99A Деталь CIRCUIT BOARD & COVER ASY,T-LITE | Деталь CIRCUIT BOARD & COVER ASY,T-LITE | |
15 | 69187-03A Деталь TAIL LAMP SOCKET ASSEMBLY, HDI | tail lamp, with 68167-04, 73154-96BK and 73191-96 (HDI) | Деталь TAIL LAMP SOCKET ASSEMBLY, HDI | tail lamp, with 68167-04, 73154-96BK and 73191-96 (HDI) | |
16 | 70522-06B Деталь CONDUIT,WIRE HRNS,SELF-ADH(PO) | self-adhesive | Деталь CONDUIT,WIRE HRNS,SELF-ADH(PO) | self-adhesive | |
17 | 72168-07 Деталь TERMINAL,SOCKET,#18-20 AWG | socket, 18-20 AWG | Деталь TERMINAL,SOCKET,#18-20 AWG | socket, 18-20 AWG | |
18 | 72414-07BK Деталь HOUSING, 6-WAY SOCKET, BLACK | six-way socket (black) | Деталь HOUSING, 6-WAY SOCKET, BLACK | six-way socket (black) | |
19 | 73154-96BK Деталь WIRE HARN SUB-CMPNT,X | four-way socket (black) | Деталь WIRE HARN SUB-CMPNT,X | four-way socket (black) | |
20 | 73156-96BK Деталь WIRE HARN SUB-CMPNT,X | six-way socket (black) | Деталь WIRE HARN SUB-CMPNT,X | six-way socket (black) | |
21 | 73191-96 Деталь TERMINAL,SCKT,#16-20AWG | socket, 16-20 AWG | Деталь TERMINAL,SCKT,#16-20AWG | socket, 16-20 AWG | |
22 | 69200128 Деталь HARNESS,WIRE,RR LITING | rear lamps, with 10006, 70522-06B, 72168-07, 72414-07BK, 73156-96BK and 73191-96 | Деталь HARNESS,WIRE,RR LITING | rear lamps, with 10006, 70522-06B, 72168-07, 72414-07BK, 73156-96BK and 73191-96 |
