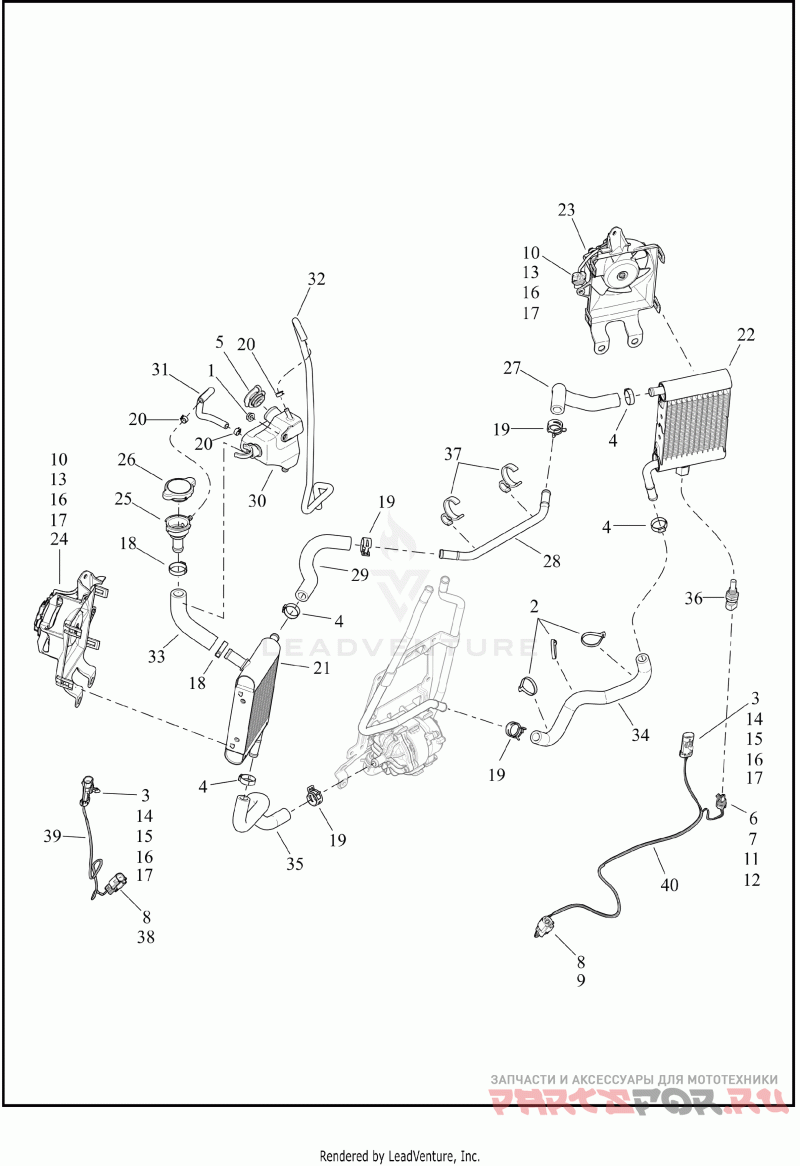

Деталь NUT,FLANGE LOCKING

Деталь STRAP,TIE,X

Деталь RING,RETG,X | connector

Деталь CLAMP,HOSE/BLACK

Деталь CAP,COOLANT BOTTLE | coolant bottle

Деталь HOUSING,2-WAY,FEM,ENG TEMP | two-way socket (black)

Деталь SECONDARY LOCK, 2-WAY, FEMALE, GRAY | two-way socket

Деталь TERMINAL,SOCKET,#18-20 AWG | socket, 18-20 AWG

Деталь HOUSING,4-WAY,SCKT,BLACK | four-way socket (black)

Деталь TERMINAL SCKT 16-20AWG | socket, 16-20 AWG

Деталь TERMINAL,SOCKET,#20AWG | socket, 20 AWG

Деталь WIRE SEAL,#20AWG,GREEN | 20 AWG (green)

Деталь HOUSING, 2-WAY SOCKET | two-way socket (black)

Деталь HOUSING, 2-WAY PIN | two-way pin (black)

Деталь TERMINAL,PIN,16-20AWG,150 METRI-PACK | pin, 16-20 AWG

Деталь SECONDARY LOCK, 2-WAY SCKT/BLACK | two-way

Деталь SEAL, CABLE #18-20 AWG, WHITE | 18-20 AWG (white)

Деталь CLAMP,HOSE,5/8(PO)

Зажим

Зажим

Деталь CORE,RH-RADIATOR(PO) | radiator (right)

Деталь CORE,LH-RADIATOR(PO) | radiator (left)

Деталь FAN ASY,LH | with 72213-94, 72606-08, 72609-08 and 72610-08 (left)

Деталь FAN ASY,RH | with 72213-94, 72606-08, 72609-08 and 72610-08 (right)

Деталь COOLANT FILL NECK | coolant

Деталь PRESSURE CAP,1.4 BAR | pressure (except China)

Деталь CAP,RDTR PRESS,1.4 BAR,CHN | pressure (China)

Деталь COOLANT HOSE,LH-CROSS TUBE | coolant, left cross tube

Деталь TUBE,COOLANT CROSS TUBE | coolant, right to left

Деталь COOLANT HOSE,RH-CROSS TUBE | coolant, right cross tube

Деталь TANK,RDTR OVRFL,X | coolant, with 26780-05A

Деталь HOSE,COOLANT VENT | coolant vent

Деталь HOSE,COOLANT OVERFLOW | coolant overflow

Деталь HOSE,RDTR,COOLANT | coolant fill

Деталь HOSE,LHS RADIATOR-TO-ENGINE OUT | radiator to engine outlet

Деталь HOSE,RHS RADIATOR-TO-PUMP IN | radiator to pump inlet

Деталь SENSOR,TEMP,X | coolant temperature

Деталь HOSE BRACKET | coolant line to frame

Деталь CONNECTOR,2-WAY SOCKET | two-way socket (black)

Деталь WIRE HARNESS,RH-PC JUMPER | twin cooling jumper, with 10147, 72168-07, 72607-08, 72608-08, 72609-08, 72610-08 and 69200271 (right)

Деталь HARNESS,WIRE,LH-PRCN CLD,JUMPER | twin cooling jumper, with 10147, 72063-06, 72111-06, 72168-07, 72177-07BK, 72484-08, 72486-08, 72607-08, 72608-08, 72609-08 and 72610-08 (left)
