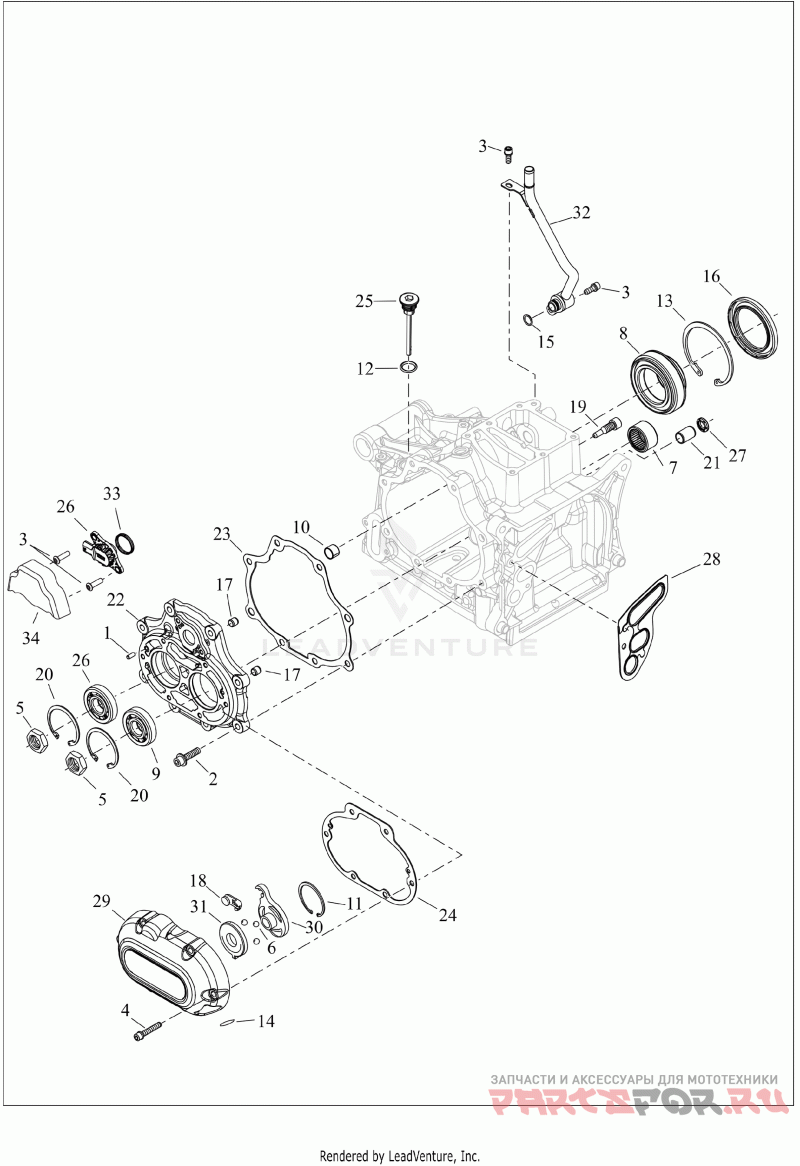

TRANSMISSION BEARINGS AND COVERS

Harley Davidson FLFB 1YF9 FAT BOY (2025)

Harley Davidson
#oem кодцена
1
221
Деталь PIN,BEARING
2
3249
Деталь SCREW,HEX SCKT,SEMS
3
4705
Деталь SCREW,HEX SOCKET HEAD CAP, SEMS
4
4718A
Деталь SCREW,HEX SOCKET HEAD CAP, SEMS
5
7340
Деталь NUT,HEX JAM | mainshaft and countershaft
6
8873
Деталь HDW,MISC,X
7
8963
Деталь NEEDLE BEARING,DRWN-CUP | needle
8
8967A
Деталь BALL BEARING,SINGLE ROW
9
8970A
Деталь BEARING,ROLL ELEM,BALL
10
9701A
Втулка
11
10998
Деталь RING,RETG,INTERNAL
12
11900179
Деталь O-RING,017,VITON | molded dipstick
13
11161
Деталь RING,RETG,X
14
11179
Деталь O-RING,X | clutch cable
15
11289A
Уплотнительное кольцо
16
12074A
Деталь SEAL,RDL SHFT,SHAFT
17
16583-00B
Деталь PIN,DOWEL | dowel
18
34920-86A
Деталь CLUTCH LVR SUB-CMPNT,X
19
35082-07
Деталь INT SHFTR MECH CMPNT,CENTERING SCREW | shift lever
20
35087-99A
Деталь RING,RETG,INTERNAL
21
35186-06A
Деталь INT SHFTR MECH CMPNT,SLEEVE,PIVOT SHAFT
22
24400378
Деталь ACCESS DOOR,XMSN,MAIN,BRNG,ASM,BLACK | with 221, 8970A, 16583-00B, 35087-99A and 11000010 (black)
23
35654-06
Деталь GASKET,CVR,X | cover
24
25701479
Деталь GASKET,CVR,MISC CMPNT,XMSN SIDE | bearing housing
25
62700291
Деталь PLUG/DIPSTICK,OIL FILLER,XMSN,MOLDED | molded
26
32700166
Деталь SENSOR,GEAR POSITION | gear position sensor, includes 11900192
27
11000101
Деталь SEAL,RDL SHFT,X
28
24400215
Деталь GASKET,CRKC,RRI
29
25800168
Деталь PT CVR MISC CMPNT,XMSN SIDE CVR,CHRM | (chrome)
30
37000376
Деталь KIT,CL,SERVICE, RAMP W/BEARINGS
31
37000376
Деталь KIT,CL,SERVICE, RAMP W/BEARINGS
32
62700182
Деталь OIL LINE,ASSY,CYL HEAD RETURN | cylinder head oil return, with 11289A
33
11900192
Деталь O-RING,SENSOR,GEAR POSITION
34
25701821
Деталь KIT,CVR/SLG,GPS COVER SERVICE KIT | gear position sensor, with 4705 and cover
