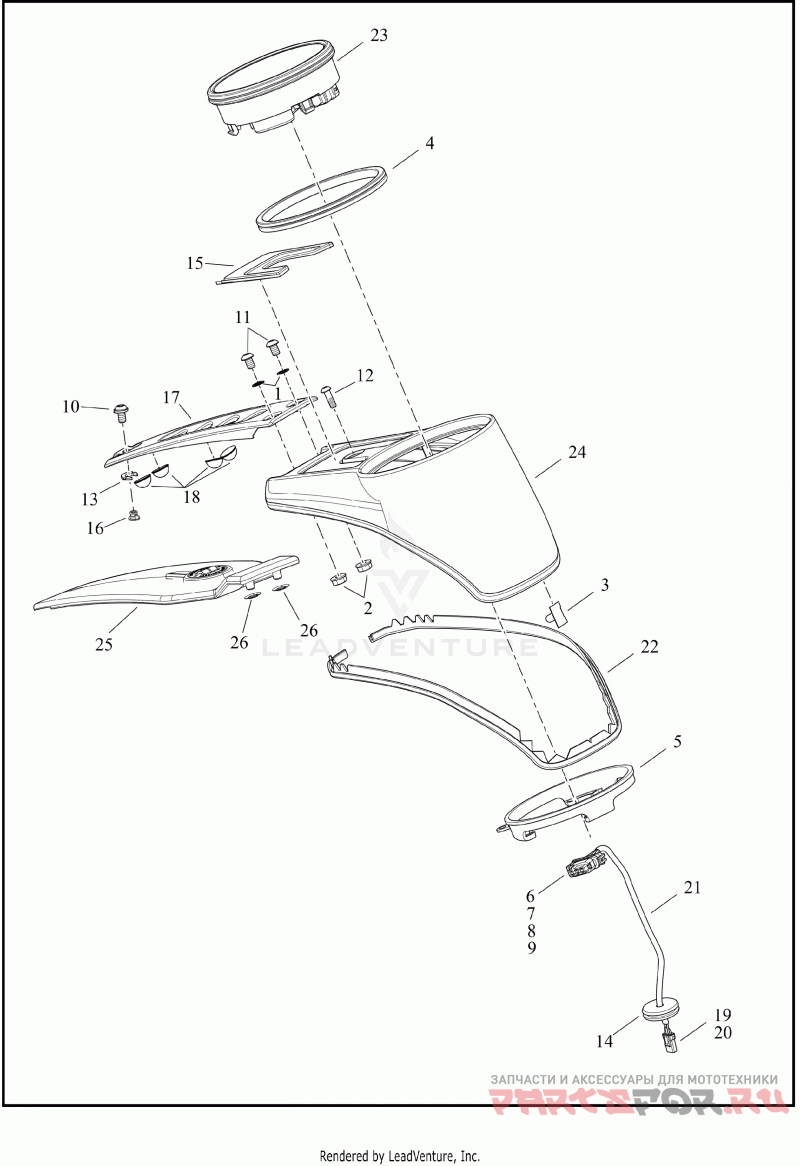

INSTRUMENTS - FLFB, FLSTFI

Harley Davidson FLFB 1YF9 FAT BOY (2025)

Harley Davidson
#oem кодцена
1
6917M
Деталь WASHER,M6 SPECIAL
2
7716
Деталь NUT,FLANGE LOCKING
3
10102
Деталь CLIP,ADH-BACKED | adhesive backed
4
67190-89
Деталь INSTR,CLUSTER/SPEEDO,X | speedometer
5
67341-04B
Деталь BRKT,ELEC MT,X | speedometer
6
72130-04
Деталь HOUSING,12-WAY,SCKT/BLACK | 12-way socket (black)
7
72189-04
Деталь SEAL PIN
8
72662-11
Деталь TERMINAL,SCKT,#22AWG | socket, 22 AWG
9
74197-04
Деталь SECONDARY LOCK,12WAY,SCKT | 12-way socket
10
10200141
Деталь SCREW,1/4-20,HEX BTN,SEMS,.50 LG
11
10200200
Деталь SCREW,BTN HEAD,ALLEN
12
10200583
Деталь SCREW,BTN,HEX SKT,STAINLESS/LOCK
13
10300128
Деталь WASHER,RETENTION, CONSOLE STRAP | retention
14
12100107
Деталь GROMMET,HARNESS,WIRE,CONSOLE,INDICATOR | console harness
15
14100967
Деталь MEDALLION,NPL,FTK CSL,INSERT | insert
16
60900064
Деталь KIT,FUEL MISC CMPNT,STRAP RETENTION NUT | with 10300128
17
61400581
Деталь TRIM,FTK STRP SUB-ASSY, CHROME | insert, with 61400420
18
61400420
Деталь TRIM,MISC DECO,FTK STRP,TRIM,RBR | foam rubber
19
69200306
Деталь HOUSING,4-WAY SOCKET,WHITE(PO) | four-way socket (white)
20
69200307
Деталь TERMINAL,X | socket, 22 AWG
21
69201528
Деталь HARNESS,WIRE,CONSOLE,INSTR | instrument console, with 6, 7, 8, 9, 14, 19 and 20
22
70900681
Деталь CONSOLE,TANK,TRIM,MOLDED RBR | console, rubber
23
70901208
Деталь INSTR,CLSTR,5,MPH,CALBR | (California, Domestic)
23
70901209
Деталь INSTR,CLSTR,5,KMH,CALBR | (Australia, AU2, ASEAN, Brazil, Canada, China, HDI, HD4, Japan, JP2)
23
70901210
Деталь INSTR,CLSTR,5,DUAL,CALBR | (England, EN2)
24
70900747
Деталь CONSOLE,TANK,SUB-ASSY,BRT W/RBR GSKT | with 70900681 (chrome)
