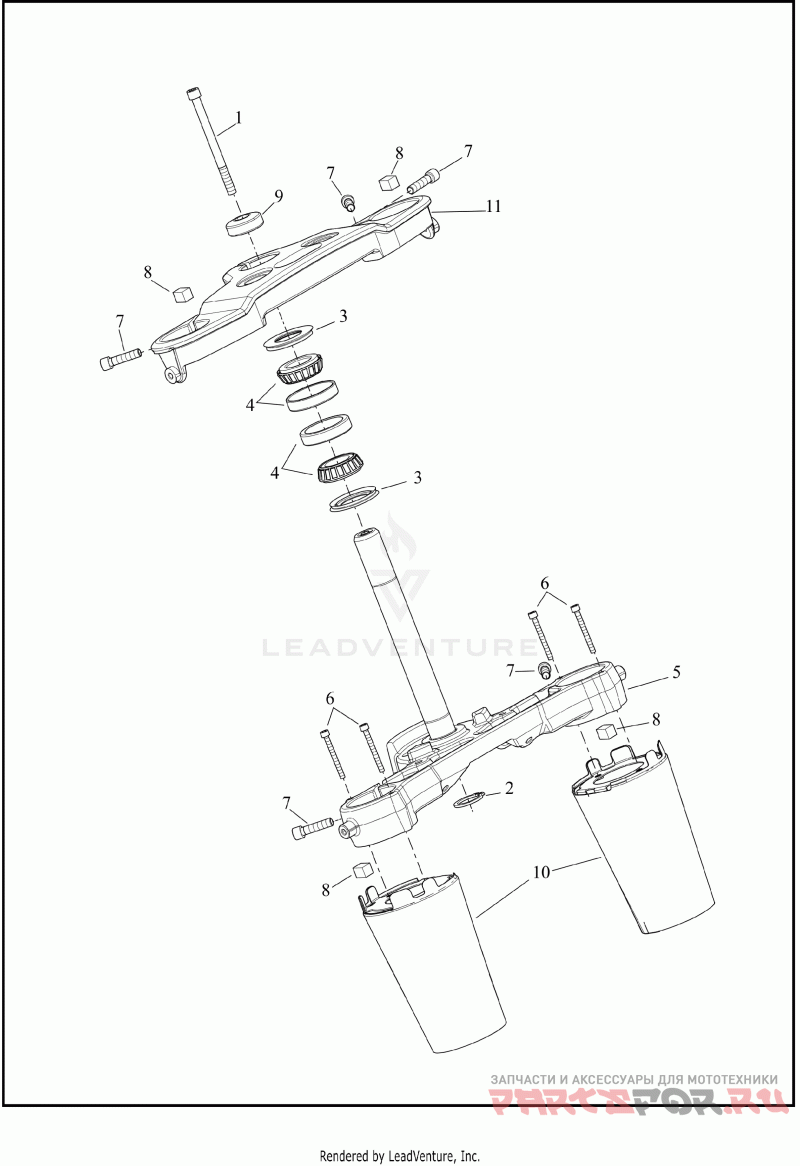

FORK BRACKETS, FRONT - FLFB, FLSTFI
Harley Davidson FLFB 1YF9 FAT BOY (2025)
| # | oem код | название | цена |
|---|---|---|---|
1 | 881A Деталь SCREW,X | Деталь SCREW,X | |
2 | 45611-86 Деталь RETAINING RING | fork stem | Деталь RETAINING RING | fork stem | |
3 | 48184-01 Деталь FR SPNSN/STRG MISC CMPNT,X | roller bearing | Деталь FR SPNSN/STRG MISC CMPNT,X | roller bearing | |
4 | 45700080 Деталь KIT,STRG,STEERING HEAD | Деталь KIT,STRG,STEERING HEAD | |
5 | 45900212A Деталь CLAMP,LWR TPL,SUB-ASSY,STEM,CVR | fork, with 45611-86, 48184-01 and bearing cone (lower) | Деталь CLAMP,LWR TPL,SUB-ASSY,STEM,CVR | fork, with 45611-86, 48184-01 and bearing cone (lower) | |
6 | 10200538 Деталь SCREW,SOCKET CAP HEAD TORX | Деталь SCREW,SOCKET CAP HEAD TORX | |
7 | 10200541 Деталь SCREW,TORX SOCKET HEAD CAP | Деталь SCREW,TORX SOCKET HEAD CAP | |
8 | 11100218 Деталь PAD,ISOL,REAR NACELLE | isolator, nacelle | Деталь PAD,ISOL,REAR NACELLE | isolator, nacelle | |
9 | 45700031 Деталь STEM,STRG,TOP WASHER, POLISHED | steering stem | Деталь STEM,STRG,TOP WASHER, POLISHED | steering stem | |
10 | 45800133 Деталь KIT,FR SPNSN/STRG MISC CMPNT,FORK COVER | fork (chrome) | Деталь KIT,FR SPNSN/STRG MISC CMPNT,FORK COVER | fork (chrome) | |
11 | 45900197A Деталь CLAMP,UPR TPL,BRACKET,UPPER FORK | (upper) | Деталь CLAMP,UPR TPL,BRACKET,UPPER FORK | (upper) |
