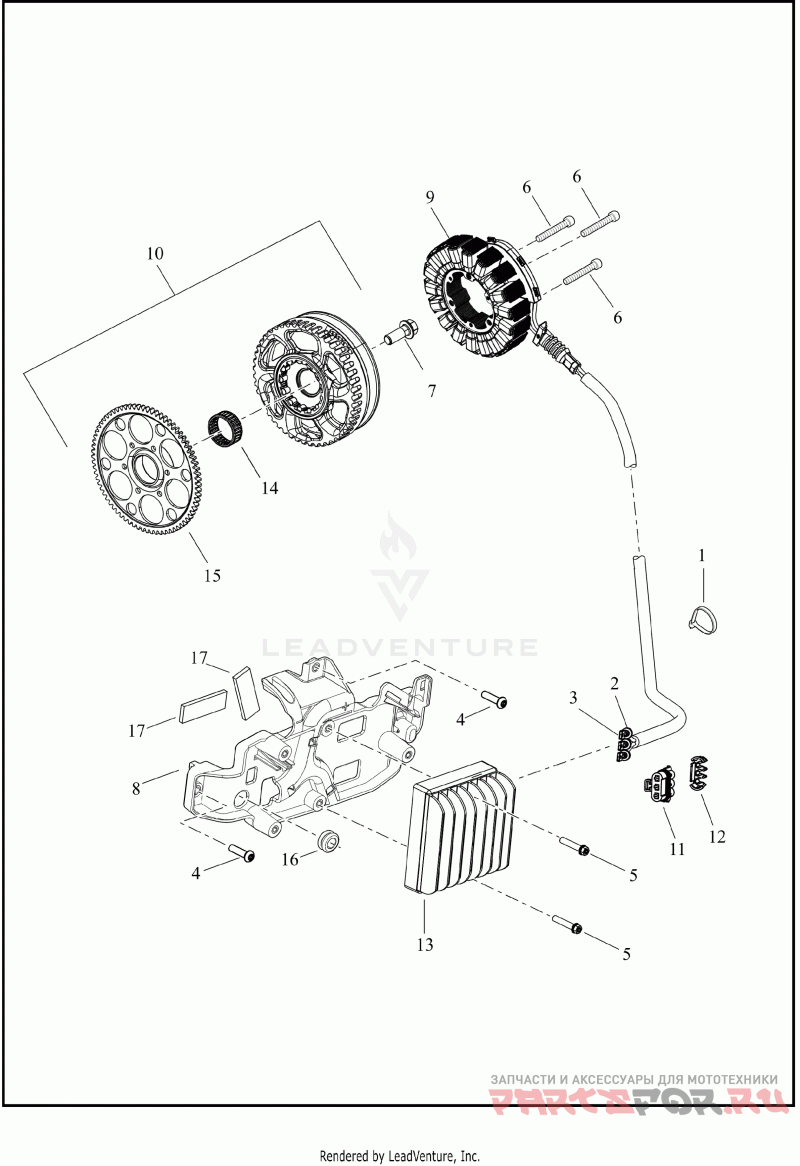

ALTERNATOR AND REGULATOR
Harley Davidson RH975 1ZH1 NIGHTSTER (2024)
| # | oem код | название | цена |
|---|---|---|---|
1 | 10006 Деталь STRAP,TIE,X | Деталь STRAP,TIE,X | |
2 | 72084-02 Деталь SEAL,CABLE | Деталь SEAL,CABLE | |
3 | 72085-02 Деталь TERMINAL,SOCKET,#10AWG | socket | Деталь TERMINAL,SOCKET,#10AWG | socket | |
4 | 10200898 Деталь SCREW,FLANGE,HEX,M6 X 20 | Деталь SCREW,FLANGE,HEX,M6 X 20 | |
5 | 10201063 Деталь SCREW,FLANGE,HEX,M6 X 30 | Деталь SCREW,FLANGE,HEX,M6 X 30 | |
6 | 10200901A Деталь SCREW,FLANGE,HEX,M6 X 45 | Деталь SCREW,FLANGE,HEX,M6 X 45 | |
7 | 10500152 Деталь SCREW,CUST,HEX FLANGE, M18X2.5 | Деталь SCREW,CUST,HEX FLANGE, M18X2.5 | |
8 | 12700159 Деталь BRKT,MTG,VOLTAGE REGULATOR | voltage regulator, with 12100155, 66494-01 | Деталь BRKT,MTG,VOLTAGE REGULATOR | voltage regulator, with 12100155, 66494-01 | |
9 | 29900128 Деталь STATOR ASSY,COMPLETE | with 72084-02 and 72085-02 | Деталь STATOR ASSY,COMPLETE | with 72084-02 and 72085-02 | |
10 | 29900133 Деталь CHARGING RTR ASSY,COMPLETE | with 11000254A and 29900073A | Деталь CHARGING RTR ASSY,COMPLETE | with 11000254A and 29900073A | |
11 | 69202313 Деталь CONNECTOR,HOUSING,3-WAY SOCKET,BLACK | three-way socket (black) | Деталь CONNECTOR,HOUSING,3-WAY SOCKET,BLACK | three-way socket (black) | |
12 | 69202315 Деталь CONNECTOR,SECONDARY LOCK,3-WAY | three-way | Деталь CONNECTOR,SECONDARY LOCK,3-WAY | three-way | |
13 | 74700042 Деталь REGULATOR,VOLT,45A | Деталь REGULATOR,VOLT,45A | |
14 | 11000254A Деталь BEARING,ROLL ELEM,NEEDLE | Деталь BEARING,ROLL ELEM,NEEDLE | |
15 | 29900073A Деталь CHARGING RTR,STARTER RING GEAR | Деталь CHARGING RTR,STARTER RING GEAR | |
16 | 12100155 Деталь GROMMET,COOLANT BOTTLE | Деталь GROMMET,COOLANT BOTTLE | |
17 | 66494-01 Деталь PAD,BAT,REAR | Деталь PAD,BAT,REAR |
