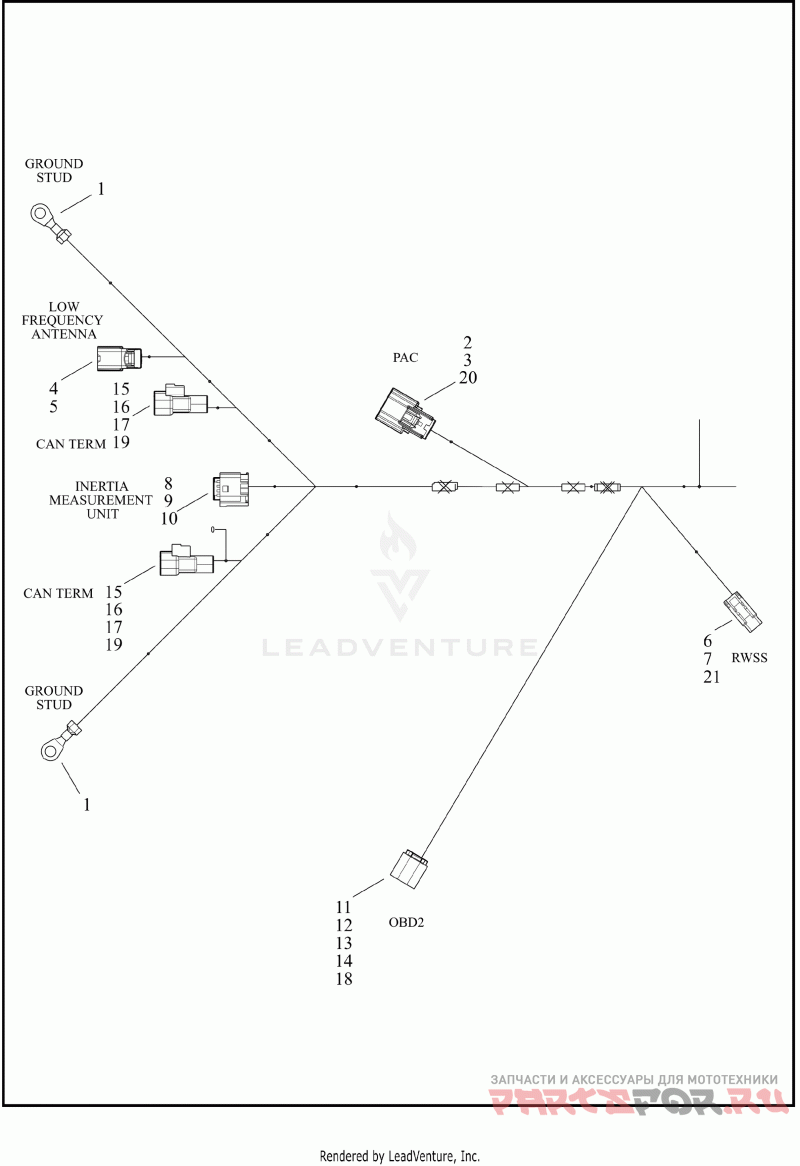

WIRING HARNESS, MAIN RH1250S (2 OF 6)

Harley Davidson RH1250S 1ZC4 SPORTSTER S (2024)

Harley Davidson
#oem кодцена
69202066B
Деталь HARNESS,WIRE,MAIN
1
9819
Деталь TERMINAL RING .25 STUD #12AWGX2 | ring, 12 AWG
2
72168-07
Деталь TERMINAL,SOCKET,#18-20 AWG | socket, 18-20 AWG
3
72512-07BK
Деталь HOUSING,3-WAY,SCKT/BLACK | three-way socket (black)
4
72720-07
Деталь HOUSING,2-WAY,SCKT | two-way socket (black)
5
72721-07
Деталь TERMINAL, SOCKET #18-20 AWG, MOLEX MX64 | socket, 18-20 AWG
6
74112-98BK
Деталь HSG 2 WAY SOCKET BLACK | two-way socket (black)
7
74191-98
Деталь SOCKET TERMINAL | socket, 16-20 AWG
8
69201301
Деталь SEAL,CONN/TERM,X
9
69201779
Деталь CONNECTOR,IMU
10
69201814
Деталь TERMINAL,SOCKET | socket
11
69202645
Деталь CONNECTOR,HOUSING,6-WAY,RED | six-way (red)
12
69202646
Деталь TERMINAL,FEMALE, 0.3-0.5 SQ MM | socket
13
69202647
Деталь SEAL,CONN/TERM,PLUG | plug
14
69202648
Деталь SEAL,CONN/TERM,0.3-0.5 | 0.3 mm-0.5 mm
15
69202959
Деталь CONNECTOR,2-WAY,PIN,BLACK | two-way pin (black)
16
69202491
Деталь TERMINAL,PIN,0.64MM,0.3-0.5MM WIRE | pin, 20-AWG
17
69202492
Деталь SEAL,CONN/TERM,1.60-2.10MM OD | 20-AWG (green)
18
69202108
Деталь CONNECTOR,CAP | connector
19
69202958
Деталь CONNECTOR,RESISTOR PACK,BLACK | resistor pack (black)
20
72519-09BK
Деталь DUSTCAP,3-WAY SOCKET | three-way socket
21
69201302
Деталь CONNECTOR,X
