Сиденье
Harley Davidson RH1250S 1ZC4 SPORTSTER S (2024)

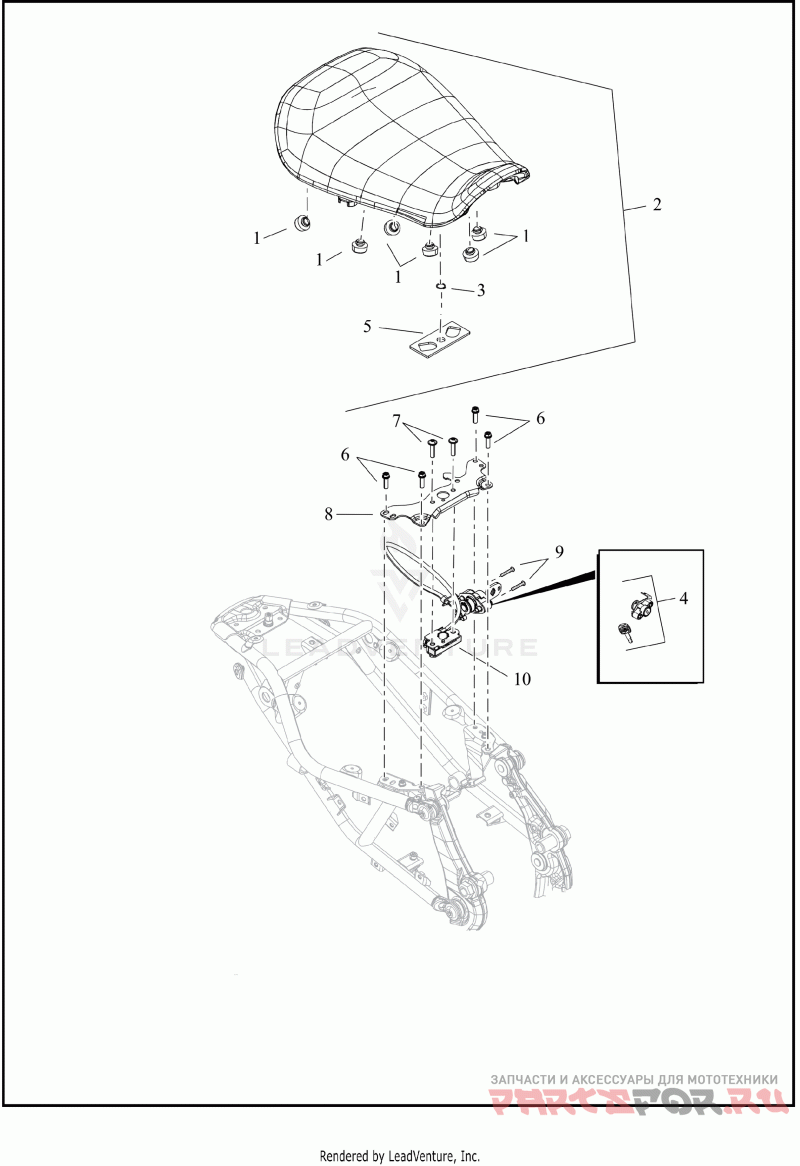

| # | oem код | название | цена |
|---|---|---|---|
1 | 11100174 Деталь PAD,ISOL,SEAT | Деталь PAD,ISOL,SEAT | |
2 | 52000438 Деталь SEAT,RDR/FULL,SOLO | with 11100174, 12200209, 52400282 | Деталь SEAT,RDR/FULL,SOLO | with 11100174, 12200209, 52400282 | |
3 | 12200209 Деталь RING,RETG,SEAT LATCH PIN | seat latch pin | Деталь RING,RETG,SEAT LATCH PIN | seat latch pin | |
4 | 52200042 Деталь KIT,SEAT LK,ASSY,W/KEY | Деталь KIT,SEAT LK,ASSY,W/KEY | |
5 | 52400282 Деталь PASS SEAT SUB-CMPNT,PLATE,PIN | Деталь PASS SEAT SUB-CMPNT,PLATE,PIN | |
6 | 10200898 Деталь SCREW,FLANGE,HEX,M6 X 20 | Деталь SCREW,FLANGE,HEX,M6 X 20 | |
7 | 10201183 Деталь SCREW,BHCS TORX,GR 8.8,M6X1.0-25 | Деталь SCREW,BHCS TORX,GR 8.8,M6X1.0-25 | |
8 | 52100062 Деталь SUPPORT STRUCT,SEAT,BRACKET,LATCH | Деталь SUPPORT STRUCT,SEAT,BRACKET,LATCH | |
9 | 10201083 Деталь SCREW,M5-0.8X30 BHCS,TORX | Деталь SCREW,M5-0.8X30 BHCS,TORX | |
10 | 52200022 Деталь CABLE,SEAT LK LCH,BOWDEN | Seat Lock Latch | Деталь CABLE,SEAT LK LCH,BOWDEN | Seat Lock Latch |
