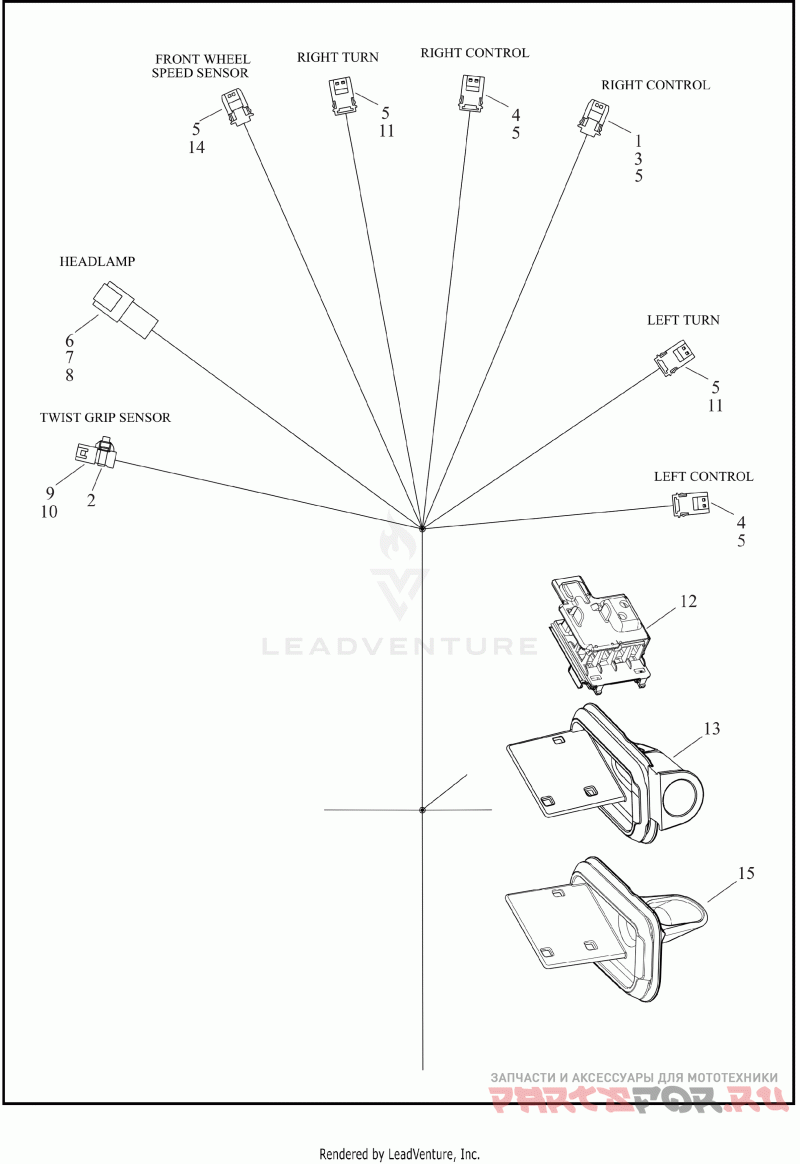

WIRING HARNESS, FRAME BACKBONE (ALL EXCEPT FXLRST) (2 OF 2)
Harley Davidson FXST 1BVJ SOFTAIL STANDARD (2024)
| # | oem код | название | цена |
|---|---|---|---|
69201655 Провода | Провода | ||
1 | 5118 Деталь TERMINAL,X | Деталь TERMINAL,X | |
2 | 10177 Деталь CABLE STRAP,X-MAS TREE MOUNT | anchored | Деталь CABLE STRAP,X-MAS TREE MOUNT | anchored | |
3 | 72905-11 Деталь HOUSING,2-WAY PIN | two-way pin (black) | Деталь HOUSING,2-WAY PIN | two-way pin (black) | |
4 | 72907-11 Деталь HOUSING,4-WAY PIN | four-way pin (black) | Деталь HOUSING,4-WAY PIN | four-way pin (black) | |
5 | 72909-11 Деталь TERMINAL,PIN,#20-22AWG | pin, 20-22 AWG | Деталь TERMINAL,PIN,#20-22AWG | pin, 20-22 AWG | |
6 | 74104-98BK Деталь HSG PIN 4-WAY BLACK | four-way pin (black) | Деталь HSG PIN 4-WAY BLACK | four-way pin (black) | |
7 | 74144-98 Деталь SECONDARY LOCK,4WAY,PIN | four-way pin | Деталь SECONDARY LOCK,4WAY,PIN | four-way pin | |
8 | 74190-98 Деталь TERMINAL,PIN,#16-20AWG | pin, 16-20 AWG | Деталь TERMINAL,PIN,#16-20AWG | pin, 16-20 AWG | |
9 | 69201163 Деталь CONNECTOR,6-WAY PIN,BLACK | six-way pin (black) | Деталь CONNECTOR,6-WAY PIN,BLACK | six-way pin (black) | |
10 | 69201164 Деталь SEAL,CONN/TERM,X | pin, 22 AWG | Деталь SEAL,CONN/TERM,X | pin, 22 AWG | |
11 | 69201180 Деталь HOUSING,4-WAY PIN,GRAY | four-way pin (gray) | Деталь HOUSING,4-WAY PIN,GRAY | four-way pin (gray) | |
12 | 69201583 Деталь SUPPORT,ENGN HARN,STEERING HEAD CADDY | steering head caddy | Деталь SUPPORT,ENGN HARN,STEERING HEAD CADDY | steering head caddy | |
13 | 69201584 Деталь SUB-ASSY,HARN/WRG,STEERING HEAD COVER | steering head, sub-assembly | Деталь SUB-ASSY,HARN/WRG,STEERING HEAD COVER | steering head, sub-assembly | |
14 | 69201656 Деталь CONNECTOR,JAE, 2 PIN, GRAY | two-way pin (gray) | Деталь CONNECTOR,JAE, 2 PIN, GRAY | two-way pin (gray) |
