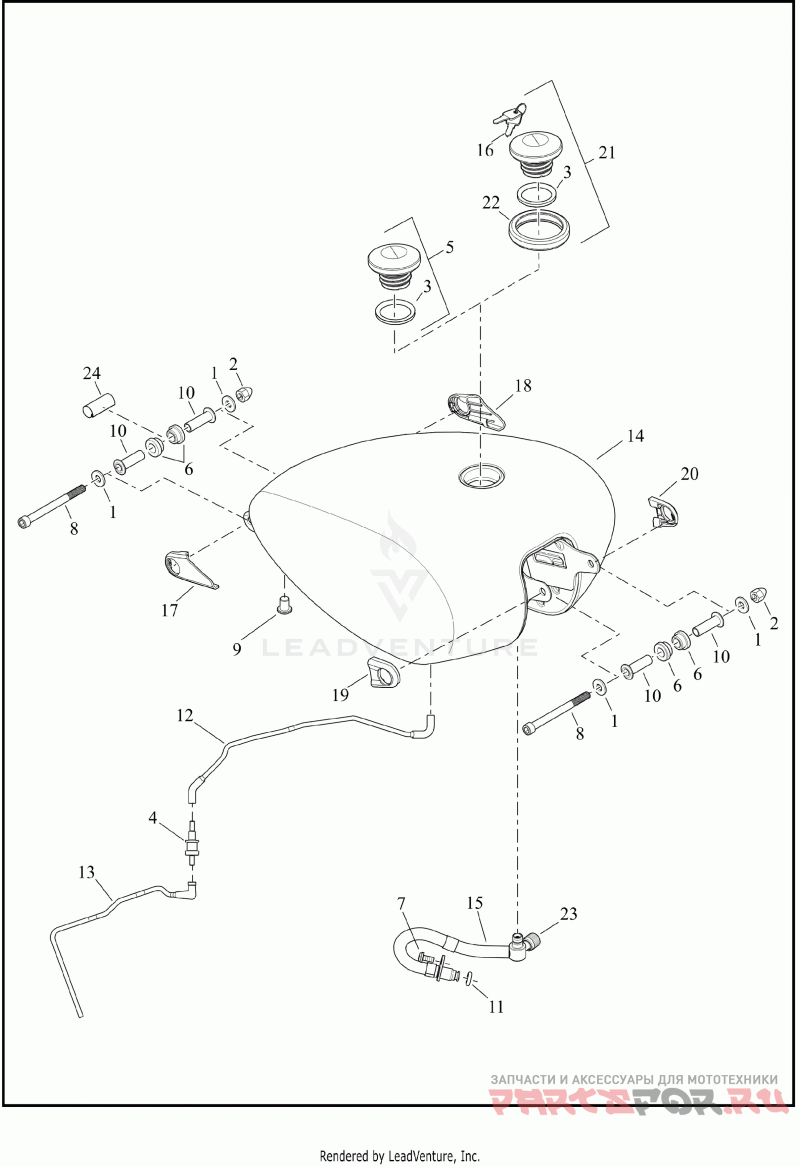

FUEL TANK - FXBBS, FXST
Harley Davidson FXST 1BVJ SOFTAIL STANDARD (2024)
| # | oem код | название | цена |
|---|---|---|---|
1 | 6532 Деталь WASHER HARDENED | Деталь WASHER HARDENED | |
2 | 7862 Деталь ACORN NUT,W/LOCK | Деталь ACORN NUT,W/LOCK | |
3 | 61100194 Деталь CAP,FUEL,GASKET | filler cap | Деталь CAP,FUEL,GASKET | filler cap | |
4 | 62150-85 Деталь VALVE,FUEL,X | vapor (Australia, AU2, Canada, Domestic) | Деталь VALVE,FUEL,X | vapor (Australia, AU2, Canada, Domestic) | |
5 | 61272-92F Деталь CAP,FUEL,RH-THREAD,FILLER,CHROME | with 61109-85D (ASEAN, Australia, AU2, Brazil, California, Canada, Domestic, England, EN2, HDI, HD4, IN2) | Деталь CAP,FUEL,RH-THREAD,FILLER,CHROME | with 61109-85D (ASEAN, Australia, AU2, Brazil, California, Canada, Domestic, England, EN2, HDI, HD4, IN2) | |
6 | 62881-00 Деталь BUSHING,PLAIN,X | rubber | Деталь BUSHING,PLAIN,X | rubber | |
7 | 10200544 Деталь SCREW,M5X0.8X12 | Деталь SCREW,M5X0.8X12 | |
8 | 10200633 Деталь SCREW,3/8-16 X 4.25, HEX HEAD, SHCS | Деталь SCREW,3/8-16 X 4.25, HEX HEAD, SHCS | |
9 | 10500167 Деталь SCREW,CUST,ECOAT DRAIN PLUG | Деталь SCREW,CUST,ECOAT DRAIN PLUG | |
10 | 11000146 Деталь BUSHING,PLAIN,FUEL TANK MOUNTING | fuel tank mounting | Деталь BUSHING,PLAIN,FUEL TANK MOUNTING | fuel tank mounting | |
11 | 11900130 Деталь O-RING,FUEL RAIL | fuel tank mounting | Деталь O-RING,FUEL RAIL | fuel tank mounting | |
12 | 60800035 Деталь HOSE,CARBON CSTR,FTK TO ROV | tank to valve (Australia, AU2, Canada, Domestic) | Деталь HOSE,CARBON CSTR,FTK TO ROV | tank to valve (Australia, AU2, Canada, Domestic) | |
13 | 60800043 Деталь HOSE,CARBON CSTR,ROV TO ATM | valve to atmosphere (Australia, AU2, Canada, Domestic) | Деталь HOSE,CARBON CSTR,ROV TO ATM | valve to atmosphere (Australia, AU2, Canada, Domestic) | |
14 | 61000858 Деталь TANK,FUEL,SIDE-FILL,PRIME,W/O EMBOSSMENT | (prime) | Деталь TANK,FUEL,SIDE-FILL,PRIME,W/O EMBOSSMENT | (prime) | |
15 | 61200052 Деталь KIT,FLN,CRUISER | with 10200544, 11900130 and 60900061 | Деталь KIT,FLN,CRUISER | with 10200544, 11900130 and 60900061 | |
16 | 90300093 Деталь KEY SET,LOCKING FUELCAP,UNIVERSAL | locking fuel cap (ASEAN, China, Japan, JP2) | Деталь KEY SET,LOCKING FUELCAP,UNIVERSAL | locking fuel cap (ASEAN, China, Japan, JP2) | |
17 | 61400489 Деталь TRIM,MISC DECO,RH REAR FTK BRKT | bracket, rear (right) | Деталь TRIM,MISC DECO,RH REAR FTK BRKT | bracket, rear (right) | |
18 | 61400490 Деталь TRIM,MISC DECO,LH REAR FTK BRKT | bracket, rear (left) | Деталь TRIM,MISC DECO,LH REAR FTK BRKT | bracket, rear (left) | |
19 | 61400491 Деталь TRIM,MISC DECO,LH FRONT FTK BRKT | bracket, front (right) | Деталь TRIM,MISC DECO,LH FRONT FTK BRKT | bracket, front (right) | |
20 | 61400492 Деталь TRIM,MISC DECO,RH FRONT FTK BRKT | bracket, front (left) | Деталь TRIM,MISC DECO,RH FRONT FTK BRKT | bracket, front (left) | |
21 | 61100120A Деталь CAP,FUEL,&KEY ASSY,LOCKING,CHRM | locking, with 61109-85D, 90300093 (Japan, JP2) (chrome) | Деталь CAP,FUEL,&KEY ASSY,LOCKING,CHRM | locking, with 61109-85D, 90300093 (Japan, JP2) (chrome) | |
23 | 60900061 Деталь FUEL MISC CMPNT,SCHRADER VALVE CAP | valve | Деталь FUEL MISC CMPNT,SCHRADER VALVE CAP | valve | |
24 | 69201909 Деталь ELEC MISC CMPNT,SCROLL TUBING,14X38,BLK | Деталь ELEC MISC CMPNT,SCROLL TUBING,14X38,BLK |
