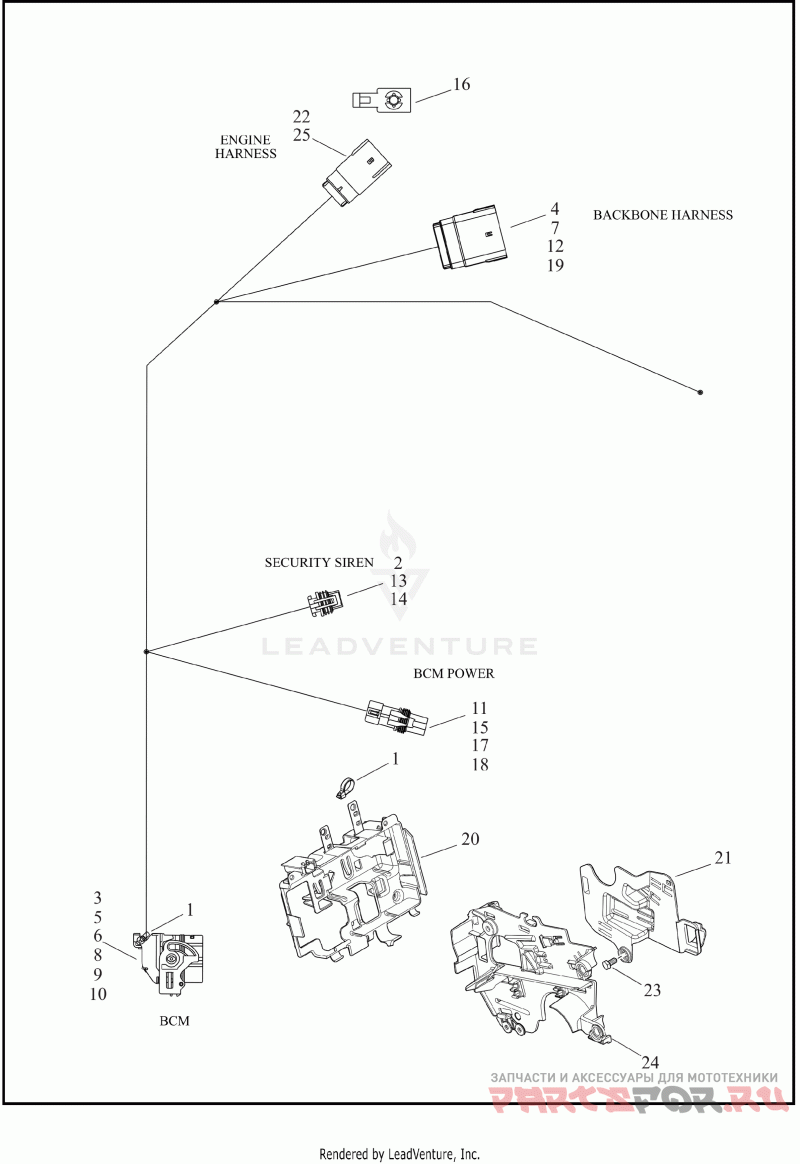

WIRING HARNESS, MAIN, ABS (4 OF 4)
Harley Davidson FXFBS 1YLK FAT BOB 114 (2024)
| # | oem код | название | цена |
|---|---|---|---|
69202197 Деталь HARNESS,WIRE,MAIN,ABS | Деталь HARNESS,WIRE,MAIN,ABS | ||
1 | 10065 Деталь STRAP,TIE,CABLE | Деталь STRAP,TIE,CABLE | |
2 | 72064-06 Деталь HOUSING,3-WAY,FEM,SCKT,VSS | three-way socket (black) | Деталь HOUSING,3-WAY,FEM,SCKT,VSS | three-way socket (black) | |
3 | 72081-11 Деталь HOUSING,48-WAY SOCKET | 48-way socket (black) | Деталь HOUSING,48-WAY SOCKET | 48-way socket (black) | |
4 | 72169-07 Деталь TERMINAL,PIN,#16-20 AWG | pin, 16-20 AWG, terminal location 1, 2, 3, 4, 5, 6, 7, 10, 11, 12, 13, 16, 17, 18, 19, 20 | Деталь TERMINAL,PIN,#16-20 AWG | pin, 16-20 AWG, terminal location 1, 2, 3, 4, 5, 6, 7, 10, 11, 12, 13, 16, 17, 18, 19, 20 | |
5 | 72209-11 Деталь WIRE HARN SUB-CMPNT,COVER | Деталь WIRE HARN SUB-CMPNT,COVER | |
6 | 72222-11 Деталь TERMINAL(0.6MM)SCKT,#18-20AWG(PO) | socket, 18-20 AWG, terminal location A2, A4, B2, C4, D2, D3, E2, E4, F3, F4, G2, G4, H2, J2, J3, J4, K2, K3, K4 | Деталь TERMINAL(0.6MM)SCKT,#18-20AWG(PO) | socket, 18-20 AWG, terminal location A2, A4, B2, C4, D2, D3, E2, E4, F3, F4, G2, G4, H2, J2, J3, J4, K2, K3, K4 | |
7 | 72225-09 Деталь PIN TERMINAL,#14 AWG | pin, 14 AWG, terminal location 8 | Деталь PIN TERMINAL,#14 AWG | pin, 14 AWG, terminal location 8 | |
8 | 72226-11 Деталь TERMINAL(1.5MM)SCKT,#14-16AWG | socket, 14-16 AWG, terminal location L2 | Деталь TERMINAL(1.5MM)SCKT,#14-16AWG | socket, 14-16 AWG, terminal location L2 | |
9 | 72227-11 Деталь TERMINAL(1.5MM)SCKT,#18-20AWG | socket, 18-20 AWG, terminal location L3, L4, M2, M3, M4 | Деталь TERMINAL(1.5MM)SCKT,#18-20AWG | socket, 18-20 AWG, terminal location L3, L4, M2, M3, M4 | |
10 | 72256-11 Деталь SEAL PIN,0.6MM,PLUG | (white) 0.6 mm | Деталь SEAL PIN,0.6MM,PLUG | (white) 0.6 mm | |
11 | 72350-11 Деталь HOUSING,ONE-WAY | one-way socket (black) | Деталь HOUSING,ONE-WAY | one-way socket (black) | |
12 | 72473-07 Деталь SEAL PIN | Деталь SEAL PIN | |
13 | 72484-08 Деталь TERMINAL,SOCKET,#20AWG | socket, 20 AWG | Деталь TERMINAL,SOCKET,#20AWG | socket, 20 AWG | |
14 | 72486-08 Деталь WIRE SEAL,#20AWG,GREEN | 20 AWG (green) | Деталь WIRE SEAL,#20AWG,GREEN | 20 AWG (green) | |
15 | 72575-11 Деталь SECONDARY LOCK | one-way socket | Деталь SECONDARY LOCK | one-way socket | |
16 | 73213-07 Деталь RETAINER,X-MAS TREE CLIP | anchored | Деталь RETAINER,X-MAS TREE CLIP | anchored | |
17 | 73304-04 Деталь TERMINAL .31FEM 10AWG | socket, 10 AWG | Деталь TERMINAL .31FEM 10AWG | socket, 10 AWG | |
18 | 73305-04 Деталь SEAL WIRE 10AWG BLUE | 10 AWG (blue) | Деталь SEAL WIRE 10AWG BLUE | 10 AWG (blue) | |
19 | 69200984 Деталь HOUSING,20-WAY PIN,BLACK | 20-way pin (black) | Деталь HOUSING,20-WAY PIN,BLACK | 20-way pin (black) | |
20 | 69201632 Деталь ELEC MISC CMPNT,BCM,CADDY | BCM | Деталь ELEC MISC CMPNT,BCM,CADDY | BCM | |
21 | 69202191 Деталь BRKT,ELEC MT,ECM SUB-CADDY | mounting, sub caddy | Деталь BRKT,ELEC MT,ECM SUB-CADDY | mounting, sub caddy | |
22 | 69202380 Деталь CONNECTOR,6-WAY PIN,BLACK | six-way, pin (black) | Деталь CONNECTOR,6-WAY PIN,BLACK | six-way, pin (black) | |
23 | 3728 Деталь SCREW HEX CAP | Деталь SCREW HEX CAP | |
24 | 69202190 Деталь WIRE HARN SUB-CMPNT,ECM CADDY ASSY | ECM, fuse | Деталь WIRE HARN SUB-CMPNT,ECM CADDY ASSY | ECM, fuse |
