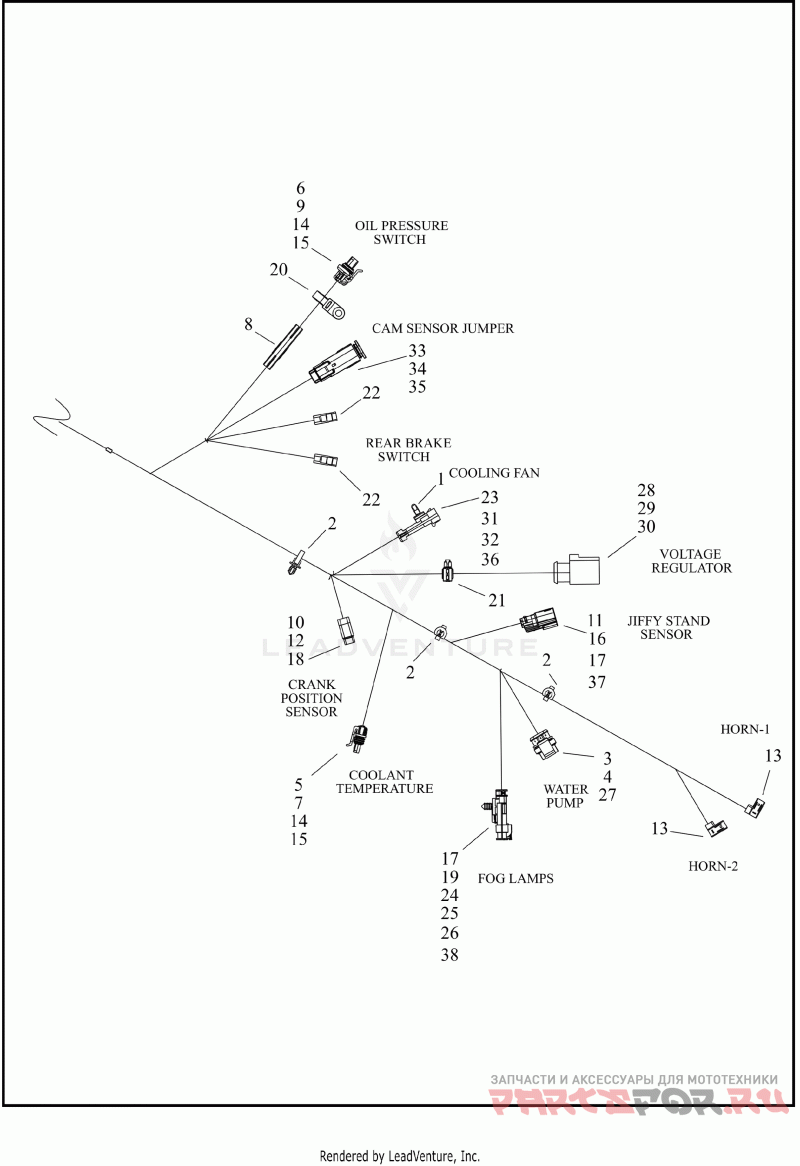

WIRING HARNESS, MAIN (8 OF 12)

Harley Davidson FLTRXSTSE 1TL8 CVO ROAD GLIDE ST (2024)

Harley Davidson
#oem кодцена
69202980A
Деталь HARNESS,WIRE,MAIN
1
10147
Деталь RING,RETG,X | connector
2
10177
Деталь CABLE STRAP,X-MAS TREE MOUNT | anchored
3
69201301
Деталь SEAL,CONN/TERM,X | 18-22 AWG (green)
4
69201300
Деталь TERMINAL,X | socket, 18-22 AWG
5
72063-06
Деталь HOUSING,2-WAY,FEM,ENG TEMP | two-way socket (black)
6
72065-06A
Деталь HOUSING, 3-WAY SOCKET | three-way socket (black)
7
72111-06
Деталь SECONDARY LOCK, 2-WAY, FEMALE, GRAY | two-way socket (gray)
8
69201722
Деталь WIRE HARN SUB-CMPNT,CLIP,YAZ-CON-TAPE | clip
9
72127-06
Деталь SECONDARY LOCK,3-WAY.FEM/GRAY | three-way socket (gray)
10
74152-98
Деталь SECONDARY LOCK,2WAY,SCKT | two-way socket
11
72168-07
Деталь TERMINAL,SOCKET,#18-20 AWG | socket, 18-20 AWG
12
74191-98
Деталь SOCKET TERMINAL | socket, 16-20 AWG
13
72283-09
Деталь TERMINAL,.250F,INSULATED,FLAG | socket, 14-16 AWG, 90 degree
14
72484-08
Деталь TERMINAL,SOCKET,#20AWG | socket, 20 AWG
15
72486-08
Деталь WIRE SEAL,#20AWG,GREEN | 20 AWG (green)
16
72512-07BK
Деталь HOUSING,3-WAY,SCKT/BLACK | three-way socket (black)
17
73213-07
Деталь RETAINER,X-MAS TREE CLIP | anchored
18
74112-98BK
Деталь HSG 2 WAY SOCKET BLACK | two-way socket (black)
19
69202285
Деталь CONNECTOR,4-WAY PIN,KEY A | four-way pin, key A
20
12500014
Деталь CABLE STRAP
21
12500018
Деталь CABLE STRAP | anchored, two-piece
22
69200238
Деталь TERMINAL,.250F,INSULATED | insulated
23
72610-08
Деталь SEAL, CABLE #18-20 AWG, WHITE | 18-20 AWG (white)
25
69201398
Деталь SEAL,CONN/TERM,X | pin, 20 AWG
26
69201427
Деталь CONNECTOR,X
27
69201406
Деталь CONNECTOR,X | three-way socket
28
69203028
Деталь CONNECTOR,2-WAY,SOCKET | two-way socket
29
69203120
Деталь TERMINAL,SOCKET,8-10AWG | socket, 8-10 AWG
30
69203121
Деталь SEAL,CONN/TERM,8AWG | 8 AWG
31
72607-08
Деталь HOUSING, 2-WAY PIN | two-way pin (black)
32
72608-08
Деталь TERMINAL,PIN,16-20AWG,150 METRI-PACK | pin, 16-20 AWG
33
72188-07BK
Деталь HOUSING,6-WAY PIN/BLACK | six-way pin
34
72169-07
Деталь TERMINAL,PIN,#16-20 AWG | pin, 16-20 AWG, terminal location 1, 2, 3, 5, 6
35
72473-07
Деталь SEAL PIN | natural
36
72609-08
Деталь SECONDARY LOCK, 2-WAY SCKT/BLACK | two-way pin
37
72519-09BK
Деталь DUSTCAP,3-WAY SOCKET | three-way socket
38
69201441
Деталь CONNECTOR,X | four-way socket
