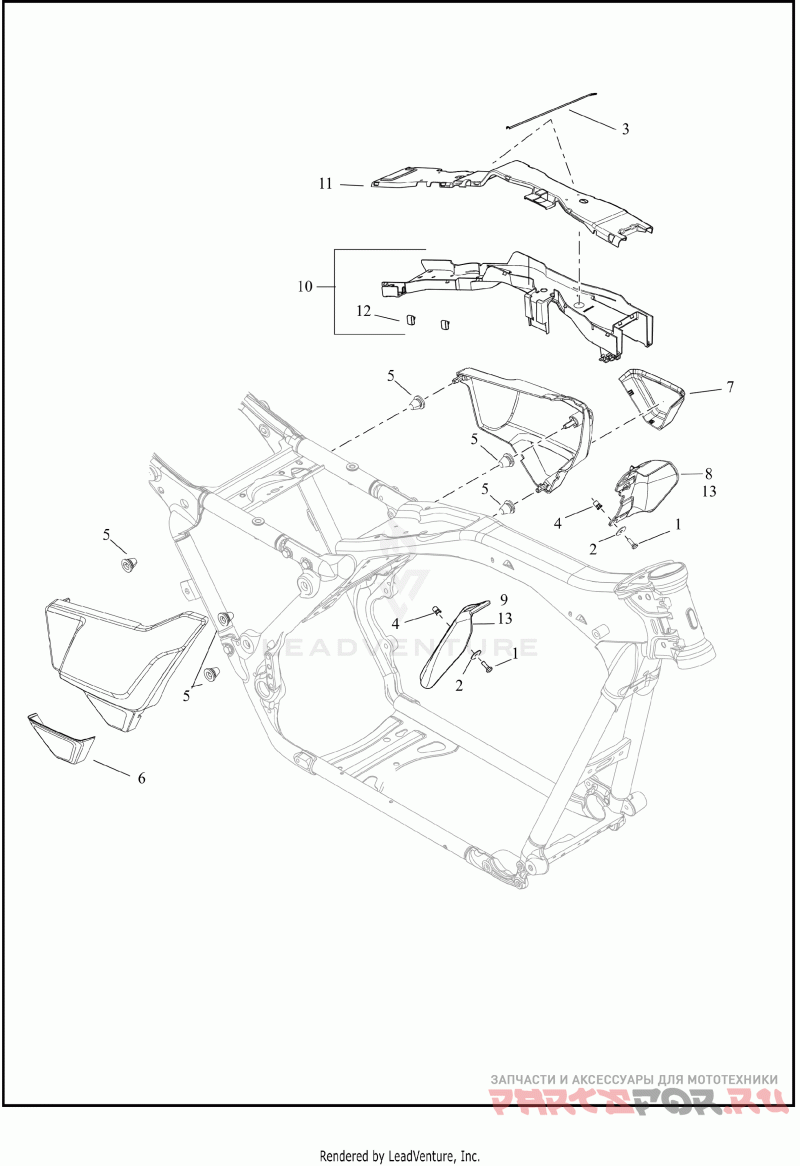

COVERS AND AIR DEFLECTORS
Harley Davidson FLTRX 1KH7 ROAD GLIDE (2024)
| # | oem код | название | цена |
|---|---|---|---|
1 | 3787 Деталь SCREW HEX CAP | (BRZ) | Деталь SCREW HEX CAP | (BRZ) | |
2 | 6036 Деталь WASHER,FLAT | (BRZ) | Деталь WASHER,FLAT | (BRZ) | |
3 | 10039 Деталь CABLE STRAP | (brake lines to harness trough/cover) | Деталь CABLE STRAP | (brake lines to harness trough/cover) | |
4 | 8194 Деталь NUT,SPECIAL | special (BRZ) | Деталь NUT,SPECIAL | special (BRZ) | |
5 | 11650 Деталь GROMMET,SIDECOVER | side cover | Деталь GROMMET,SIDECOVER | side cover | |
6 | 61301292 Деталь PANEL,TRIM,COVER,SIDE,MOLDED,RH | side cover (right) | Деталь PANEL,TRIM,COVER,SIDE,MOLDED,RH | side cover (right) | |
7 | 61301291 Деталь PANEL,TRIM,COVER,SIDE,MOLDED,LH | side cover (left) | Деталь PANEL,TRIM,COVER,SIDE,MOLDED,LH | side cover (left) | |
8 | 57200391 Деталь SHROUD,ENGN,AIR DFTR,MID-FRM,LH | air (left) (BRZ) | Деталь SHROUD,ENGN,AIR DFTR,MID-FRM,LH | air (left) (BRZ) | |
9 | 57200392 Деталь SHROUD,ENGN,AIR DFTR,MID-FRM,RH | air (right) (BRZ) | Деталь SHROUD,ENGN,AIR DFTR,MID-FRM,RH | air (right) (BRZ) | |
10 | 69202720A Деталь BRKT,ELEC MT,WIRE TROUGH ASSEMBLY KIT | with 69202637 (main harness) | Деталь BRKT,ELEC MT,WIRE TROUGH ASSEMBLY KIT | with 69202637 (main harness) | |
11 | 69202636 Деталь BRKT,ELEC MT,COVER, WIRE TROUGH | wire trough (main harness) | Деталь BRKT,ELEC MT,COVER, WIRE TROUGH | wire trough (main harness) | |
12 | 69202637 Деталь BRKT,ELEC MT,ABS BRKLINE RETENTION CLIP | (ABS) | Деталь BRKT,ELEC MT,ABS BRKLINE RETENTION CLIP | (ABS) | |
13 | 57200417 Деталь KIT,SHRD,AIR DEFLECTOR,MID-FRAME | mid frame, with 3787, 6036, 8194, 57200391, 57200392 (BRZ) | Деталь KIT,SHRD,AIR DEFLECTOR,MID-FRAME | mid frame, with 3787, 6036, 8194, 57200391, 57200392 (BRZ) |
