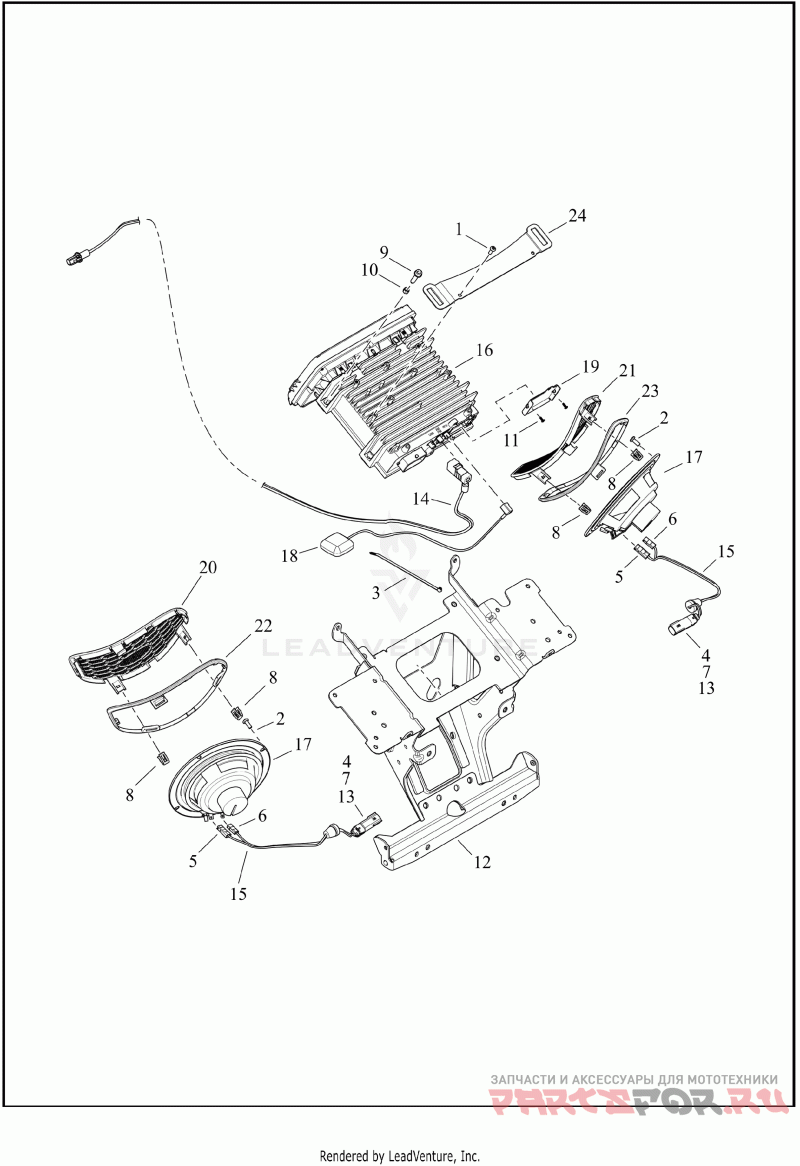

SOUND SYSTEM - FLTRK
Harley Davidson FLTRK 1KZF ROAD GLIDE LIMITED (2024)
| # | oem код | название | цена |
|---|---|---|---|
1 | 2478 Деталь SCREW,BUTTON TORX 10-24 X .50 | Деталь SCREW,BUTTON TORX 10-24 X .50 | |
2 | 3152 Деталь SCREW,PAN,TORX/BLACK | Деталь SCREW,PAN,TORX/BLACK | |
3 | 10065 Деталь STRAP,TIE,CABLE | Деталь STRAP,TIE,CABLE | |
4 | 72169-07 Деталь TERMINAL,PIN,#16-20 AWG | pin, 16-20 AWG | Деталь TERMINAL,PIN,#16-20 AWG | pin, 16-20 AWG | |
5 | 72290-94 Деталь TERMINAL,.250F,INSULATED | insulated | Деталь TERMINAL,.250F,INSULATED | insulated | |
6 | 72294-94 Деталь TERMINAL FEM IN #16-20AWG | insulated | Деталь TERMINAL FEM IN #16-20AWG | insulated | |
7 | 73213-07 Деталь RETAINER,X-MAS TREE CLIP | anchored | Деталь RETAINER,X-MAS TREE CLIP | anchored | |
8 | 12200025 Деталь RING,RETG,X | Деталь RING,RETG,X | |
9 | 12600070 Болт | Болт | |
10 | 12600071 Деталь RETAINER,BOLT | bolt | Деталь RETAINER,BOLT | bolt | |
11 | 12600073 Деталь SCREW,ACCY MODULE(PO) | accessory module | Деталь SCREW,ACCY MODULE(PO) | accessory module | |
12 | 47200217 Деталь BRACKET,RADIO MNT,INR-FRNG | Деталь BRACKET,RADIO MNT,INR-FRNG | |
13 | 69200272 Деталь CONNECTOR,X | two-way pin (black) | Деталь CONNECTOR,X | two-way pin (black) | |
14 | 69201017 Деталь WIRE HARNESS,AM/FM ANTENNA | AM/FM antenna | Деталь WIRE HARNESS,AM/FM ANTENNA | AM/FM antenna | |
15 | 69200752 Деталь WIRE HARNESS,SPEAKER JUMPER | speaker jumper, with 72169-07, 72290-94, 72294-94, 73213-07 and 69200272 | Деталь WIRE HARNESS,SPEAKER JUMPER | speaker jumper, with 72169-07, 72290-94, 72294-94, 73213-07 and 69200272 | |
16 | 76000779F Деталь RECEIVER,RAD,PREM/DOM | with 12600070, 12600071, 12600073 and 76000252 (Domestic, California, Canada) (See NOTE 1) | Деталь RECEIVER,RAD,PREM/DOM | with 12600070, 12600071, 12600073 and 76000252 (Domestic, California, Canada) (See NOTE 1) | |
16 | 76000780E Деталь RECEIVER,RAD,PREM/HDI | with 12600070, 12600071, 12600073 and 76000252 (HDI, England) (See NOTE 2) | Деталь RECEIVER,RAD,PREM/HDI | with 12600070, 12600071, 12600073 and 76000252 (HDI, England) (See NOTE 2) | |
16 | 76000781F Деталь RECEIVER,RAD,PREM/ROW | with 12600070, 12600071, 12600073 and 76000252 (HDI, HD4, Australia, Japan, Asia-Pacific, China) (See NOTE 3) | Деталь RECEIVER,RAD,PREM/ROW | with 12600070, 12600071, 12600073 and 76000252 (HDI, HD4, Australia, Japan, Asia-Pacific, China) (See NOTE 3) | |
17 | 76000819A Деталь SPEAKER,AUD SYS,5.25 DIAMETER | 5-1/4 in | Деталь SPEAKER,AUD SYS,5.25 DIAMETER | 5-1/4 in | |
18 | 76000789 Деталь ANTENNA,GPS | GPS | Деталь ANTENNA,GPS | GPS | |
19 | 76000252 Деталь PLATE,ACC MODULE | Деталь PLATE,ACC MODULE | |
20 | 76000879 Деталь SPEAKER,AUD SYS,SUB ASSY,GRILLE,RH | with 12200025, 76000918 (right) | Деталь SPEAKER,AUD SYS,SUB ASSY,GRILLE,RH | with 12200025, 76000918 (right) | |
21 | 76000878 Деталь SPEAKER,AUD SYS,SUB ASSY,GRILLE,LH | with 12200025, 76000917 (left) | Деталь SPEAKER,AUD SYS,SUB ASSY,GRILLE,LH | with 12200025, 76000917 (left) | |
22 | 76000918 Деталь INFOT MT SUB-CMPNT,GASKET,SPKR,RH | (right) | Деталь INFOT MT SUB-CMPNT,GASKET,SPKR,RH | (right) | |
23 | 76000917 Деталь INFOT MT SUB-CMPNT,GASKET,SPKR,LH | (left) | Деталь INFOT MT SUB-CMPNT,GASKET,SPKR,LH | (left) | |
24 | 76000468 Деталь BRACKET,UPPER SUPPORT,RADIO | radio | Деталь BRACKET,UPPER SUPPORT,RADIO | radio |
