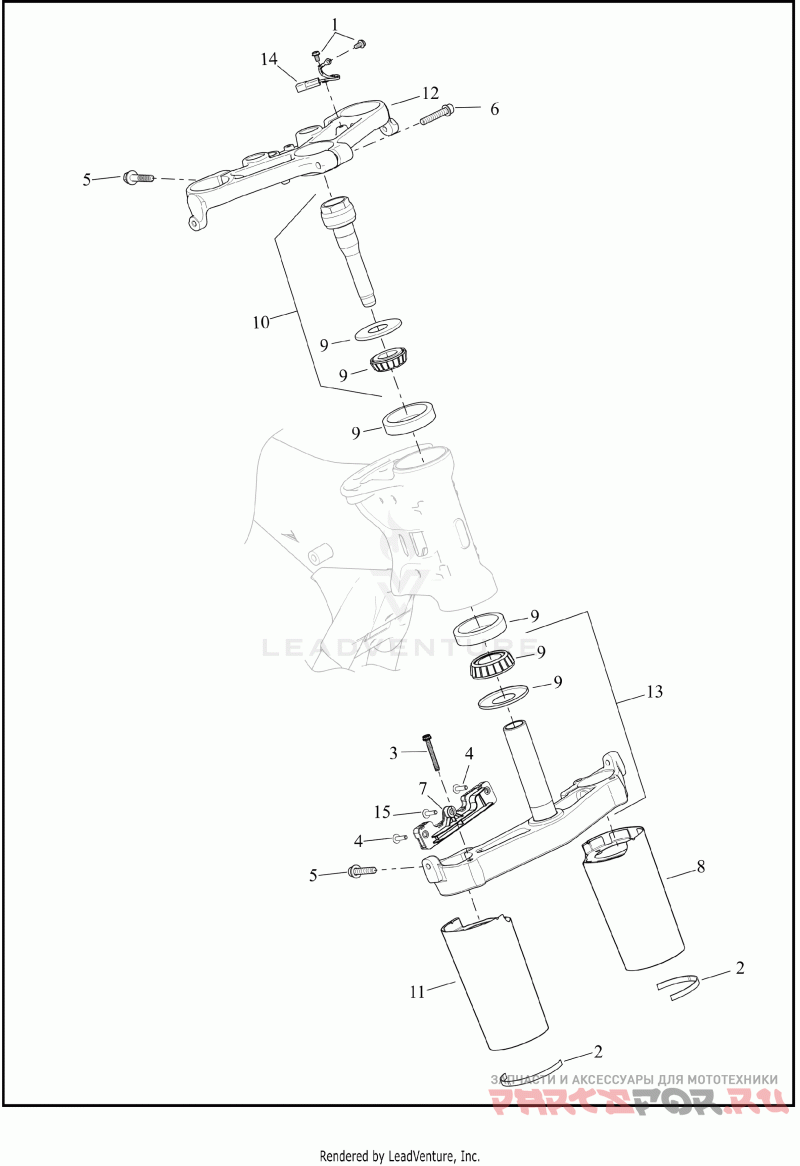

FORK BRACKETS, FRONT
Harley Davidson FLTRK 1KZF ROAD GLIDE LIMITED (2024)
| # | oem код | название | цена |
|---|---|---|---|
1 | 4240 Деталь SCREW,HEX WASH HEAD | Деталь SCREW,HEX WASH HEAD | |
3 | 10200042 Деталь SCREW,HEX FLANGE | Деталь SCREW,HEX FLANGE | |
4 | 10200223 Деталь SCREW,TORX SCKT,BTN HD | Деталь SCREW,TORX SCKT,BTN HD | |
5 | 10500022 Деталь SHCS,SEMS | Деталь SHCS,SEMS | |
6 | 10500036 Деталь SCREW,SEMS,HX SCKT HD CAP | Деталь SCREW,SEMS,HX SCKT HD CAP | |
7 | 41600390 Деталь BRKT,BRK MTG,FR-ABS BRAKELINE | brake line | Деталь BRKT,BRK MTG,FR-ABS BRAKELINE | brake line | |
8 | 45600054 Деталь PROTECTOR,FORK,PEM,LH | fork tube (left) (black) | Деталь PROTECTOR,FORK,PEM,LH | fork tube (left) (black) | |
9 | 45700009 Деталь BEARING KIT,STEERING HEAD | steering head, with bearing cups, bearing cones and dirt guards | Деталь BEARING KIT,STEERING HEAD | steering head, with bearing cups, bearing cones and dirt guards | |
10 | 45700020A Деталь STEM ASY,UPR STEERING | upper steering, with bearing cone and dirt guard | Деталь STEM ASY,UPR STEERING | upper steering, with bearing cone and dirt guard | |
11 | 45600055 Деталь PROTECTOR,FORK,PEM, RH | fork tube (right) (black) | Деталь PROTECTOR,FORK,PEM, RH | fork tube (right) (black) | |
12 | 45900024 Деталь BRACKET,UPR FORK STEM | upper fork stem | Деталь BRACKET,UPR FORK STEM | upper fork stem | |
13 | 45900091A Деталь BRACKET ASY,LWR FORK | lower fork, with bearing cone and dirt guard | Деталь BRACKET ASY,LWR FORK | lower fork, with bearing cone and dirt guard | |
14 | 69200224 Деталь HARNESS,WIRE,TRIPLE CLAMP,GRND JMPR | triple clamp, ground jumper | Деталь HARNESS,WIRE,TRIPLE CLAMP,GRND JMPR | triple clamp, ground jumper | |
15 | 10200686 Деталь SCREW,BTN,TORX,10-24X.5,LOCK,ZINC | brake line bracket closure | Деталь SCREW,BTN,TORX,10-24X.5,LOCK,ZINC | brake line bracket closure |
