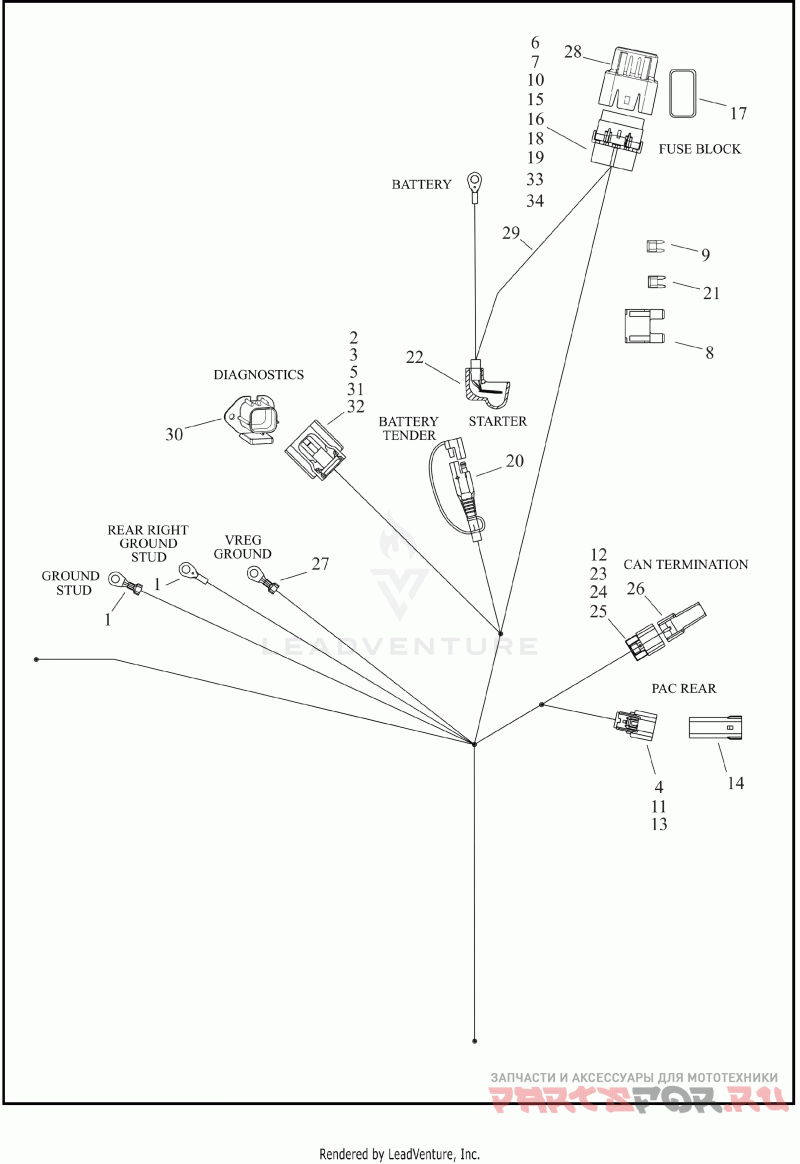

WIRING HARNESS, MAIN, ABS (3 OF 4)
Harley Davidson FLI 1BCK HYDRA-GLIDE REVIVAL (2024)
| # | oem код | название | цена |
|---|---|---|---|
69202197 Деталь HARNESS,WIRE,MAIN,ABS | Деталь HARNESS,WIRE,MAIN,ABS | ||
1 | 9819 Деталь TERMINAL RING .25 STUD #12AWGX2 | ring, 12 AWG | Деталь TERMINAL RING .25 STUD #12AWGX2 | ring, 12 AWG | |
2 | 69202098 Деталь CONNECTOR,HOUSING,6-WAY,RED | six-way socket (red) | Деталь CONNECTOR,HOUSING,6-WAY,RED | six-way socket (red) | |
3 | 69202109 Деталь CONNECTOR,TERMINAL RETAINER, OBD2 | terminal retainer, OBD2 | Деталь CONNECTOR,TERMINAL RETAINER, OBD2 | terminal retainer, OBD2 | |
4 | 72168-07 Деталь TERMINAL,SOCKET,#18-20 AWG | socket, 18-20 AWG | Деталь TERMINAL,SOCKET,#18-20 AWG | socket, 18-20 AWG | |
5 | 69202104 Деталь TERMINAL,FEMALE, 0.3 SQ MM | socket, 22 AWG | Деталь TERMINAL,FEMALE, 0.3 SQ MM | socket, 22 AWG | |
6 | 72298-95 Деталь CABLE SEAL | 14-18 AWG (green) terminal location 1, 2, 3, 4 | Деталь CABLE SEAL | 14-18 AWG (green) terminal location 1, 2, 3, 4 | |
7 | 72308-97 Деталь TERMINAL, FEMALE, #12-12 AWG | socket, 12-14 AWG, terminal location 1, 3 | Деталь TERMINAL, FEMALE, #12-12 AWG | socket, 12-14 AWG, terminal location 1, 3 | |
8 | 72314-01 Деталь FUSE MAXI 40 AMP | 40 A | Деталь FUSE MAXI 40 AMP | 40 A | |
9 | 72331-95 Деталь FUSE,5 AMP,MINI-BLADE,LT TAN | 5 A (light tan) | Деталь FUSE,5 AMP,MINI-BLADE,LT TAN | 5 A (light tan) | |
10 | 72356-95 Деталь TERMINAL,SCKT,#18-20AWG | socket, 18-20 AWG, terminal location 2, 4, 5, 6 | Деталь TERMINAL,SCKT,#18-20AWG | socket, 18-20 AWG, terminal location 2, 4, 5, 6 | |
11 | 72473-07 Деталь SEAL PIN | (natural) | Деталь SEAL PIN | (natural) | |
12 | 72499-07 Деталь WIRE SEAL,#20-22 AWG,GREEN | 20-22 AWG (green) | Деталь WIRE SEAL,#20-22 AWG,GREEN | 20-22 AWG (green) | |
13 | 72512-07BK Деталь HOUSING,3-WAY,SCKT/BLACK | three-way socket (black) | Деталь HOUSING,3-WAY,SCKT/BLACK | three-way socket (black) | |
14 | 72519-09BK Деталь DUSTCAP,3-WAY SOCKET | weather, three-way socket | Деталь DUSTCAP,3-WAY SOCKET | weather, three-way socket | |
15 | 69202176 Деталь BLOCK,FUSE/RLY,FUSE BLOCK | Деталь BLOCK,FUSE/RLY,FUSE BLOCK | |
16 | 69202177 Деталь BLOCK,FUSE/RLY,SECONDARY LOCK | Деталь BLOCK,FUSE/RLY,SECONDARY LOCK | |
17 | 69202178 Деталь COVER,FB/RB,FUSE BLOCK SEAL | fuse block seal | Деталь COVER,FB/RB,FUSE BLOCK SEAL | fuse block seal | |
18 | 73304-04 Деталь TERMINAL .31FEM 10AWG | socket, 10 AWG, terminal location A, B | Деталь TERMINAL .31FEM 10AWG | socket, 10 AWG, terminal location A, B | |
19 | 73305-04 Деталь SEAL WIRE 10AWG BLUE | 10 AWG (blue) terminal location A, B | Деталь SEAL WIRE 10AWG BLUE | 10 AWG (blue) terminal location A, B | |
20 | 69200212 Деталь CONNECTOR,BATTERY TNDR OVER-MOLD-PO | battery tender over-mold | Деталь CONNECTOR,BATTERY TNDR OVER-MOLD-PO | battery tender over-mold | |
21 | 69200293 Деталь FUSE,7.5A MINI,BROWN | 7.5 A (brown) | Деталь FUSE,7.5A MINI,BROWN | 7.5 A (brown) | |
22 | 69201307 Деталь BOOT,POS CABLE ASY,WIRE HARNESS | cable assembly, wiring harness | Деталь BOOT,POS CABLE ASY,WIRE HARNESS | cable assembly, wiring harness | |
23 | 69201396 Деталь TERMINAL,SOCKET,#20 AWG | socket, 20 AWG | Деталь TERMINAL,SOCKET,#20 AWG | socket, 20 AWG | |
24 | 69201400 Деталь HOUSING,2-WAY, SOCKET,BK,CPA | two-way socket (black) | Деталь HOUSING,2-WAY, SOCKET,BK,CPA | two-way socket (black) | |
25 | 69201401 Деталь SECONDARY LOCK 2-WAY SOCKET | two-way socket | Деталь SECONDARY LOCK 2-WAY SOCKET | two-way socket | |
26 | 69201405 Деталь RESISTOR PACK | Деталь RESISTOR PACK | |
27 | 69201596 Деталь TERMINAL,RING,1/4 | ring | Деталь TERMINAL,RING,1/4 | ring | |
28 | 69202179 Деталь COVER,FB/RB,FUSE COVER | Деталь COVER,FB/RB,FUSE COVER | |
29 | 69201855 Деталь HARNESS,WIRE,POSITIVE BATTERY | positive battery cable, with 73304-04, 73305-04, 12200181 and 69201307 | Деталь HARNESS,WIRE,POSITIVE BATTERY | positive battery cable, with 73304-04, 73305-04, 12200181 and 69201307 | |
30 | 69202108 Деталь CONNECTOR,CAP | Деталь CONNECTOR,CAP | |
31 | 69202106 Деталь SEAL,CONN/TERM,1.6-1.7 MM | Деталь SEAL,CONN/TERM,1.6-1.7 MM | |
32 | 69202107 Деталь SEAL,CONN/TERM,PLUG | Деталь SEAL,CONN/TERM,PLUG | |
33 | 69200299 Деталь MAIN HARNESS,FLHR | 18-20 AWG (purple) terminal location 5, 6 | Деталь MAIN HARNESS,FLHR | 18-20 AWG (purple) terminal location 5, 6 | |
34 | 72299-95 Деталь CAVITY PLUG | (green) terminal location 7, 8 | Деталь CAVITY PLUG | (green) terminal location 7, 8 |
