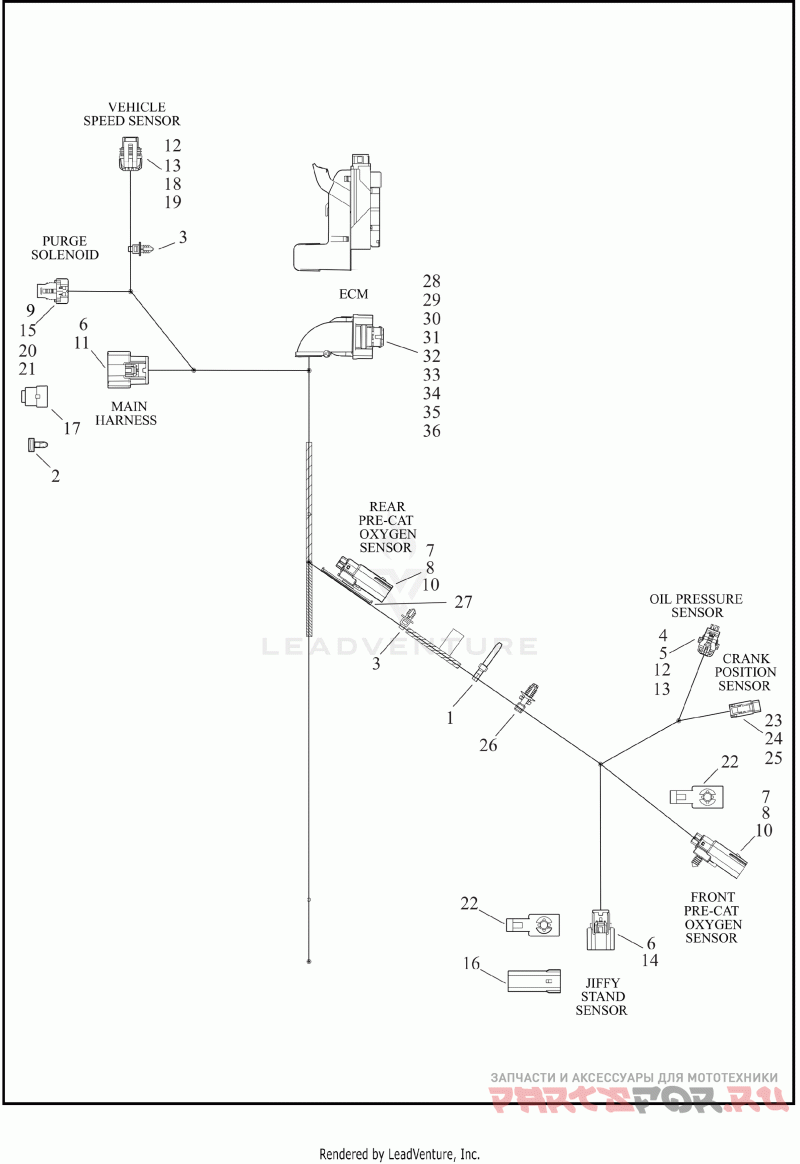

WIRING HARNESS, ENGINE
Harley Davidson FLI 1BCK HYDRA-GLIDE REVIVAL (2024)
| # | oem код | название | цена |
|---|---|---|---|
69202199 Деталь HARNESS,WIRE,ENGINE | (ASEAN, Australia, AU2, Brazil, California, Canada, China, Domestic) | Деталь HARNESS,WIRE,ENGINE | (ASEAN, Australia, AU2, Brazil, California, Canada, China, Domestic) | ||
1 | 10081 Деталь STRAP,TIE,DOUBLE LOOP | (ASEAN, Australia, AU2, Brazil, California, Canada, China, Domestic) | Деталь STRAP,TIE,DOUBLE LOOP | (ASEAN, Australia, AU2, Brazil, California, Canada, China, Domestic) | |
2 | 10147 Деталь RING,RETG,X | (ASEAN, Australia, AU2, Brazil, California, Canada, China, Domestic) | Деталь RING,RETG,X | (ASEAN, Australia, AU2, Brazil, California, Canada, China, Domestic) | |
3 | 10177 Деталь CABLE STRAP,X-MAS TREE MOUNT | pin 20-22 AWG (ASEAN, Australia, AU2, Brazil, California, Canada, China, Domestic) | Деталь CABLE STRAP,X-MAS TREE MOUNT | pin 20-22 AWG (ASEAN, Australia, AU2, Brazil, California, Canada, China, Domestic) | |
4 | 72065-06A Деталь HOUSING, 3-WAY SOCKET | three-way socket (black) (ASEAN, Australia, AU2, Brazil, California, Canada, China, Domestic) | Деталь HOUSING, 3-WAY SOCKET | three-way socket (black) (ASEAN, Australia, AU2, Brazil, California, Canada, China, Domestic) | |
5 | 72127-06 Деталь SECONDARY LOCK,3-WAY.FEM/GRAY | three-way socket (ASEAN, Australia, AU2, Brazil, California, Canada, China, Domestic) | Деталь SECONDARY LOCK,3-WAY.FEM/GRAY | three-way socket (ASEAN, Australia, AU2, Brazil, California, Canada, China, Domestic) | |
6 | 72168-07 Деталь TERMINAL,SOCKET,#18-20 AWG | socket, 18-20 AWG (ASEAN, Australia, AU2, Brazil, California, Canada, China, Domestic) | Деталь TERMINAL,SOCKET,#18-20 AWG | socket, 18-20 AWG (ASEAN, Australia, AU2, Brazil, California, Canada, China, Domestic) | |
7 | 72169-07 Деталь TERMINAL,PIN,#16-20 AWG | pin, 16-20 AWG (ASEAN, Australia, AU2, Brazil, California, Canada, China, Domestic) terminal location 1, 2 | Деталь TERMINAL,PIN,#16-20 AWG | pin, 16-20 AWG (ASEAN, Australia, AU2, Brazil, California, Canada, China, Domestic) terminal location 1, 2 | |
8 | 72175-07BK Деталь HOUSING,4-WAY,PIN/BLACK | four-way pin (black) (ASEAN, Australia, AU2, Brazil, California, Canada, China, Domestic) | Деталь HOUSING,4-WAY,PIN/BLACK | four-way pin (black) (ASEAN, Australia, AU2, Brazil, California, Canada, China, Domestic) | |
9 | 72213-94 Деталь TERMINAL SCKT 16-20AWG | socket, 16-20 AWG (ASEAN, Australia, AU2, Brazil, California, Canada, China, Domestic) | Деталь TERMINAL SCKT 16-20AWG | socket, 16-20 AWG (ASEAN, Australia, AU2, Brazil, California, Canada, China, Domestic) | |
10 | 72343-10 Деталь TERMINAL,PIN,#16-20AWG/GOLD | pin, 16-20 AWG (ASEAN, Australia, AU2, Brazil, California, Canada, China, Domestic) terminal location 3, 4 | Деталь TERMINAL,PIN,#16-20AWG/GOLD | pin, 16-20 AWG (ASEAN, Australia, AU2, Brazil, California, Canada, China, Domestic) terminal location 3, 4 | |
11 | 72483-08BK Деталь HOUSING,6-WAY,SOCKET/BLACK | six-way socket (black) (ASEAN, Australia, AU2, Brazil, California, Canada, China, Domestic) | Деталь HOUSING,6-WAY,SOCKET/BLACK | six-way socket (black) (ASEAN, Australia, AU2, Brazil, California, Canada, China, Domestic) | |
12 | 72484-08 Деталь TERMINAL,SOCKET,#20AWG | socket, 20 AWG (ASEAN, Australia, AU2, Brazil, California, Canada, China, Domestic) | Деталь TERMINAL,SOCKET,#20AWG | socket, 20 AWG (ASEAN, Australia, AU2, Brazil, California, Canada, China, Domestic) | |
13 | 72486-08 Деталь WIRE SEAL,#20AWG,GREEN | 20 AWG (green) (ASEAN, Australia, AU2, Brazil, California, Canada, China, Domestic) | Деталь WIRE SEAL,#20AWG,GREEN | 20 AWG (green) (ASEAN, Australia, AU2, Brazil, California, Canada, China, Domestic) | |
14 | 72512-07BK Деталь HOUSING,3-WAY,SCKT/BLACK | three-way socket (black) (ASEAN, Australia, AU2, Brazil, California, Canada, China, Domestic) | Деталь HOUSING,3-WAY,SCKT/BLACK | three-way socket (black) (ASEAN, Australia, AU2, Brazil, California, Canada, China, Domestic) | |
15 | 72518-01 Деталь HOUSING, 2-WAY SOCKET, RED | two-way socket (red) (ASEAN, Australia, AU2, Brazil, California, Canada, China, Domestic) | Деталь HOUSING, 2-WAY SOCKET, RED | two-way socket (red) (ASEAN, Australia, AU2, Brazil, California, Canada, China, Domestic) | |
16 | 72519-09BK Деталь DUSTCAP,3-WAY SOCKET | weather, three-way socket (ASEAN, Australia, AU2, Brazil, California, Canada, China, Domestic) | Деталь DUSTCAP,3-WAY SOCKET | weather, three-way socket (ASEAN, Australia, AU2, Brazil, California, Canada, China, Domestic) | |
17 | 72533-06 Деталь DUST CAP,2-PIN CONN | weather, two-way pin (ASEAN, Australia, AU2, Brazil, California, Canada, China, Domestic) | Деталь DUST CAP,2-PIN CONN | weather, two-way pin (ASEAN, Australia, AU2, Brazil, California, Canada, China, Domestic) | |
18 | 72543-07BK Деталь HOUSING,3-WAY,SCKT/BLACK | three-way socket (black) (ASEAN, Australia, AU2, Brazil, California, Canada, China, Domestic) | Деталь HOUSING,3-WAY,SCKT/BLACK | three-way socket (black) (ASEAN, Australia, AU2, Brazil, California, Canada, China, Domestic) | |
19 | 72544-07 Деталь SECONDARY LOCK,3-WAY,FEM | three-way socket (ASEAN, Australia, AU2, Brazil, California, Canada, China, Domestic) | Деталь SECONDARY LOCK,3-WAY,FEM | three-way socket (ASEAN, Australia, AU2, Brazil, California, Canada, China, Domestic) | |
20 | 72609-08 Деталь SECONDARY LOCK, 2-WAY SCKT/BLACK | two-way socket (ASEAN, Australia, AU2, Brazil, California, Canada, China, Domestic) | Деталь SECONDARY LOCK, 2-WAY SCKT/BLACK | two-way socket (ASEAN, Australia, AU2, Brazil, California, Canada, China, Domestic) | |
21 | 72610-08 Деталь SEAL, CABLE #18-20 AWG, WHITE | 18-20 AWG (white) (ASEAN, Australia, AU2, Brazil, California, Canada, China, Domestic) | Деталь SEAL, CABLE #18-20 AWG, WHITE | 18-20 AWG (white) (ASEAN, Australia, AU2, Brazil, California, Canada, China, Domestic) | |
22 | 73213-07 Деталь RETAINER,X-MAS TREE CLIP | anchored (ASEAN, Australia, AU2, Brazil, California, Canada, China, Domestic) | Деталь RETAINER,X-MAS TREE CLIP | anchored (ASEAN, Australia, AU2, Brazil, California, Canada, China, Domestic) | |
23 | 74112-98BK Деталь HSG 2 WAY SOCKET BLACK | two-way socket (black) (ASEAN, Australia, AU2, Brazil, California, Canada, China, Domestic) | Деталь HSG 2 WAY SOCKET BLACK | two-way socket (black) (ASEAN, Australia, AU2, Brazil, California, Canada, China, Domestic) | |
24 | 74152-98 Деталь SECONDARY LOCK,2WAY,SCKT | two-way socket (ASEAN, Australia, AU2, Brazil, California, Canada, China, Domestic) | Деталь SECONDARY LOCK,2WAY,SCKT | two-way socket (ASEAN, Australia, AU2, Brazil, California, Canada, China, Domestic) | |
25 | 74191-98 Деталь SOCKET TERMINAL | socket, 16-20 AWG (ASEAN, Australia, AU2, Brazil, California, Canada, China, Domestic) | Деталь SOCKET TERMINAL | socket, 16-20 AWG (ASEAN, Australia, AU2, Brazil, California, Canada, China, Domestic) | |
26 | 12500002 Деталь CABLE STRAP,XMAS,2-PC(PO) | two piece, anchored (ASEAN, Australia, AU2, Brazil, California, Canada, China, Domestic) | Деталь CABLE STRAP,XMAS,2-PC(PO) | two piece, anchored (ASEAN, Australia, AU2, Brazil, California, Canada, China, Domestic) | |
27 | 69201722 Деталь WIRE HARN SUB-CMPNT,CLIP,YAZ-CON-TAPE | (ASEAN, Australia, AU2, Brazil, California, Canada, China, Domestic) | Деталь WIRE HARN SUB-CMPNT,CLIP,YAZ-CON-TAPE | (ASEAN, Australia, AU2, Brazil, California, Canada, China, Domestic) | |
28 | 69201888 Деталь CONNECTOR,HOUSING,81-WAY | connector, 81-way (ASEAN, Australia, AU2, Brazil, California, Canada, China, Domestic) | Деталь CONNECTOR,HOUSING,81-WAY | connector, 81-way (ASEAN, Australia, AU2, Brazil, California, Canada, China, Domestic) | |
29 | 69201890 Деталь TERMINAL,SOCKET,2.8MM,0.75-1.0MM WIRE | socket (ASEAN, Australia, AU2, Brazil, California, Canada, China, Domestic) terminal location 5 | Деталь TERMINAL,SOCKET,2.8MM,0.75-1.0MM WIRE | socket (ASEAN, Australia, AU2, Brazil, California, Canada, China, Domestic) terminal location 5 | |
30 | 69202453 Деталь TERMINAL,SKT,0.64MM,0.35-0.5MM WIRE,SIL | socket, 22 AWG (ASEAN, Australia, AU2, Brazil, California, Canada, China, Domestic) terminal location 6, 7, 8, 14, 16, 20, 21, 23, 24, 25, 43, 67 | Деталь TERMINAL,SKT,0.64MM,0.35-0.5MM WIRE,SIL | socket, 22 AWG (ASEAN, Australia, AU2, Brazil, California, Canada, China, Domestic) terminal location 6, 7, 8, 14, 16, 20, 21, 23, 24, 25, 43, 67 | |
31 | 69202028 Деталь CONNECTOR,CAVITY PLUG,0.64MM CAVITY | ASEAN, Australia, AU2, Brazil, California, Canada, China, Domestic) terminal location 9, 10, 12, 13, 15, 17, 18, 19, 22, 26, 28, 33, 35, 40, 44, 49, 50, 54, 56, 5 | Деталь CONNECTOR,CAVITY PLUG,0.64MM CAVITY | ASEAN, Australia, AU2, Brazil, California, Canada, China, Domestic) terminal location 9, 10, 12, 13, 15, 17, 18, 19, 22, 26, 28, 33, 35, 40, 44, 49, 50, 54, 56, 5 | |
32 | 69202029 Деталь CONNECTOR,CAVITY PLUG,2.8MM CAVITY | (ASEAN, Australia, AU2, Brazil, California, Canada, China, Domestic) terminal location 1, 4 | Деталь CONNECTOR,CAVITY PLUG,2.8MM CAVITY | (ASEAN, Australia, AU2, Brazil, California, Canada, China, Domestic) terminal location 1, 4 | |
33 | 69202030 Деталь TERMINAL,SOCKET,2.8MM,1.5-2.5MM WIRE | socket (ASEAN, Australia, AU2, Brazil, California, Canada, China, Domestic) terminal location 2, 3 | Деталь TERMINAL,SOCKET,2.8MM,1.5-2.5MM WIRE | socket (ASEAN, Australia, AU2, Brazil, California, Canada, China, Domestic) terminal location 2, 3 | |
34 | 69202031 Деталь SEAL,CONN/TERM,2.0-2.7MM OD | (ASEAN, Australia, AU2, Brazil, California, Canada, China, Domestic) terminal location 2, 3, 5 | Деталь SEAL,CONN/TERM,2.0-2.7MM OD | (ASEAN, Australia, AU2, Brazil, California, Canada, China, Domestic) terminal location 2, 3, 5 | |
35 | 69202032 Деталь CONNECTOR,SECONDARY LOCK | secondary lock (ASEAN, Australia, AU2, Brazil, California, Canada, China, Domestic) | Деталь CONNECTOR,SECONDARY LOCK | secondary lock (ASEAN, Australia, AU2, Brazil, California, Canada, China, Domestic) | |
36 | 69202453 Деталь TERMINAL,SKT,0.64MM,0.35-0.5MM WIRE,SIL | ASEAN, Australia, AU2, Brazil, California, Canada, China, Domestic) terminal location 11, 27, 29, 30, 31, 32, 34, 36, 37, 38, 39, 41, 42, 45, 46, 47, 48, 51, | Деталь TERMINAL,SKT,0.64MM,0.35-0.5MM WIRE,SIL | ASEAN, Australia, AU2, Brazil, California, Canada, China, Domestic) terminal location 11, 27, 29, 30, 31, 32, 34, 36, 37, 38, 39, 41, 42, 45, 46, 47, 48, 51, |
