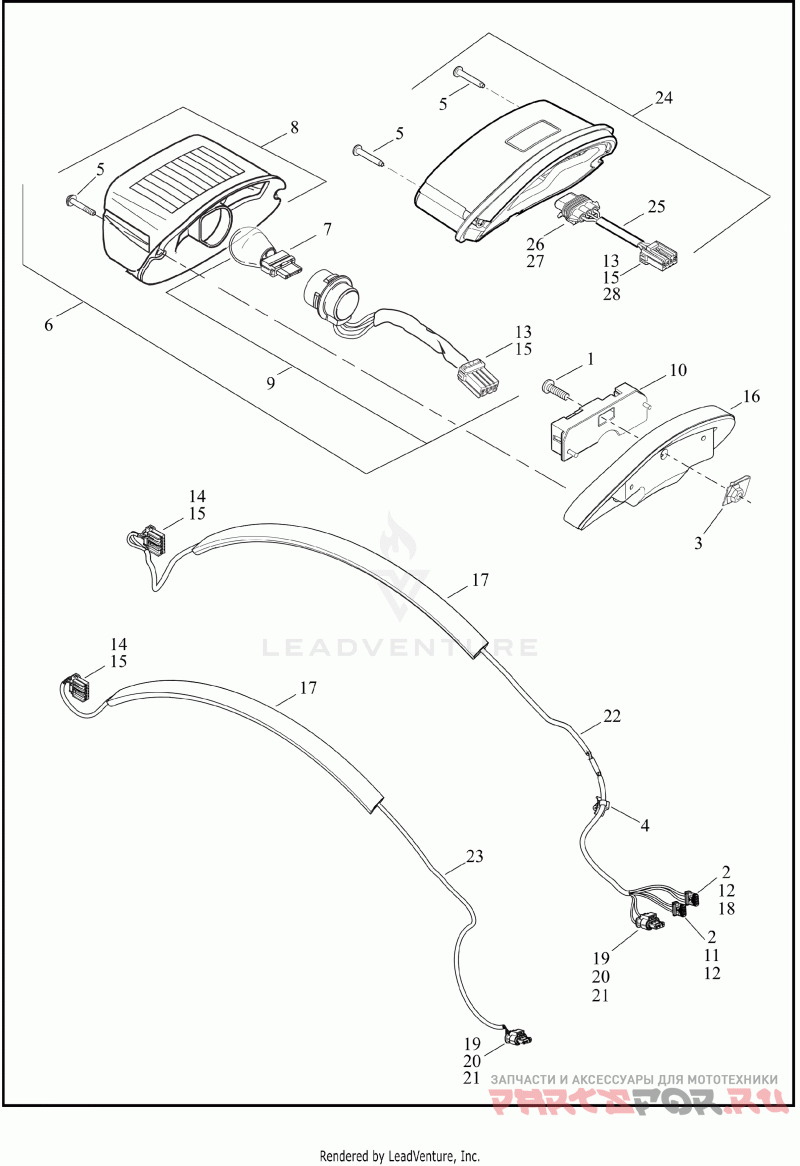

TAIL LAMP - FLHCS, FXLRS, FLI
Harley Davidson FLI 1BCK HYDRA-GLIDE REVIVAL (2024)
| # | oem код | название | цена |
|---|---|---|---|
1 | 3022A Деталь SCREW,SEMS/X-RECESS,W/DOG POINT | Деталь SCREW,SEMS/X-RECESS,W/DOG POINT | |
2 | 5118 Деталь TERMINAL,X | Деталь TERMINAL,X | |
3 | 7964 Деталь NUT STAKED J-TYPE 1/4-20 | Деталь NUT STAKED J-TYPE 1/4-20 | |
4 | 10115 Деталь CABLE STRAP,R0SEBUD,W/WINGS | Деталь CABLE STRAP,R0SEBUD,W/WINGS | |
6 | 68140-04 Деталь ENVELOPE ASY,T-LAMP/DOM | tail lamp, with 68369-03 and 68370-03A (California, Canada, Domestic) | Деталь ENVELOPE ASY,T-LAMP/DOM | tail lamp, with 68369-03 and 68370-03A (California, Canada, Domestic) | |
6 | 68141-04 Деталь ENVELOPE ASY,T-LAMP/HDI | tail lamp, with 68372-03 and 69187-03A (ASEAN, Australia, AU2, Brazil, China, England, EN2, HDI, IN2, HD4, Japan, JP2) | Деталь ENVELOPE ASY,T-LAMP/HDI | tail lamp, with 68372-03 and 69187-03A (ASEAN, Australia, AU2, Brazil, China, England, EN2, HDI, IN2, HD4, Japan, JP2) | |
7 | 68167-04 Деталь BULB,WEDGE BASE,3157K | tail lamp, wedge mount | Деталь BULB,WEDGE BASE,3157K | tail lamp, wedge mount | |
8 | 68369-03 Деталь ENVELOPE,T-LAMP/DOM | tail lamp, with 68026-99 (California, Canada, Domestic) | Деталь ENVELOPE,T-LAMP/DOM | tail lamp, with 68026-99 (California, Canada, Domestic) | |
8 | 68372-03 Деталь TAIL LIGHT, HDI | tail lamp, with 68026-99 (ASEAN, Australia, AU2, Brazil, China, England, EN2, HDI, HD4, IN2, Japan, JP2) | Деталь TAIL LIGHT, HDI | tail lamp, with 68026-99 (ASEAN, Australia, AU2, Brazil, China, England, EN2, HDI, HD4, IN2, Japan, JP2) | |
9 | 68370-03A Деталь SOCKET ASY,T-LITE/DOM | with 68167-04, 73154-96BK and 73191-96 (California, Canada, Domestic) | Деталь SOCKET ASY,T-LITE/DOM | with 68167-04, 73154-96BK and 73191-96 (California, Canada, Domestic) | |
9 | 69187-03A Деталь TAIL LAMP SOCKET ASSEMBLY, HDI | with 68167-04, 73154-96BK and 73191-96 (ASEAN, Australia, AU2, Brazil, China, England, EN2, HDI, HD4, IN2, Japan, JP2) | Деталь TAIL LAMP SOCKET ASSEMBLY, HDI | with 68167-04, 73154-96BK and 73191-96 (ASEAN, Australia, AU2, Brazil, China, England, EN2, HDI, HD4, IN2, Japan, JP2) | |
10 | 68830-99A Деталь CIRCUIT BOARD & COVER ASY,T-LITE | Деталь CIRCUIT BOARD & COVER ASY,T-LITE | |
11 | 72908-11 Деталь CONNECTOR,X | four-way socket | Деталь CONNECTOR,X | four-way socket | |
12 | 72910-11 Деталь TERMINAL,SOCKET,#20-22AWG | socket 20-22 AWG | Деталь TERMINAL,SOCKET,#20-22AWG | socket 20-22 AWG | |
13 | 73154-96BK Деталь WIRE HARN SUB-CMPNT,X | four-way socket | Деталь WIRE HARN SUB-CMPNT,X | four-way socket | |
14 | 73156-96BK Деталь WIRE HARN SUB-CMPNT,X | six-way socket | Деталь WIRE HARN SUB-CMPNT,X | six-way socket | |
15 | 73191-96 Деталь TERMINAL,SCKT,#16-20AWG | socket, 16-20 AWG | Деталь TERMINAL,SCKT,#16-20AWG | socket, 16-20 AWG | |
16 | 73381-12 Деталь BASE,T-LITE,CHRM | chrome | Деталь BASE,T-LITE,CHRM | chrome | |
17 | 69200018 Деталь CONDUIT,SELF-ADHESIVE 50FT | harness | Деталь CONDUIT,SELF-ADHESIVE 50FT | harness | |
18 | 69201179 Деталь CONNECTOR,X | six-way socket | Деталь CONNECTOR,X | six-way socket | |
19 | 69201301 Деталь SEAL,CONN/TERM,X | 20-22 AWG (green) | Деталь SEAL,CONN/TERM,X | 20-22 AWG (green) | |
20 | 69201406 Деталь CONNECTOR,X | three-way socket | Деталь CONNECTOR,X | three-way socket | |
21 | 69201407 Деталь SEAL,CONN/TERM,X | socket, 20 AWG | Деталь SEAL,CONN/TERM,X | socket, 20 AWG | |
22 | 69201690 Деталь HARNESS,WIRE,RR LIGHTING | rear lamps, with 2, 4, 11, 12, 14, 15, 17, 18, 19, 20 and 21 | Деталь HARNESS,WIRE,RR LIGHTING | rear lamps, with 2, 4, 11, 12, 14, 15, 17, 18, 19, 20 and 21 |
