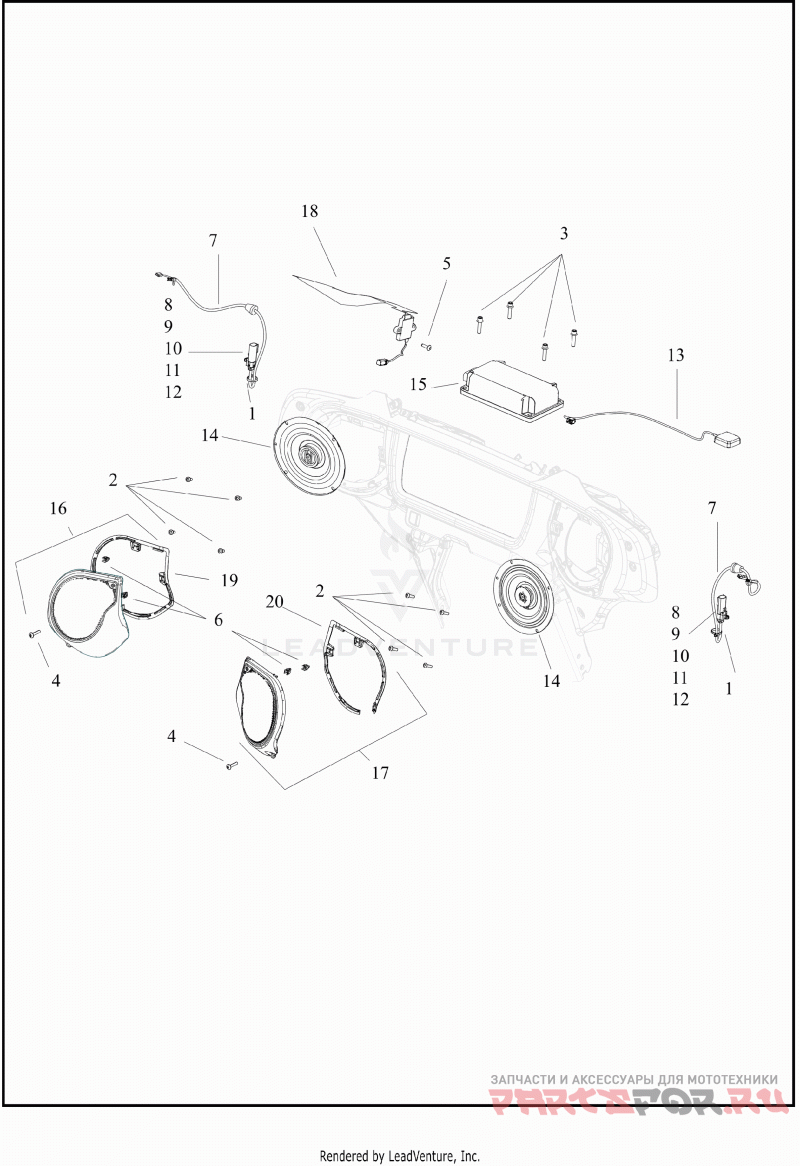

SOUND SYSTEM - FLHX
Harley Davidson FLHX 1KB7 STREET GLIDE (2024)
| # | oem код | название | цена |
|---|---|---|---|
1 | 10065 Деталь STRAP,TIE,CABLE | Деталь STRAP,TIE,CABLE | |
2 | 10201096 Деталь SCREW,SELF-TAPPING,BUTTON HEAD | Деталь SCREW,SELF-TAPPING,BUTTON HEAD | |
3 | 10201351 Деталь SCREW,TORX SCKT HD, SEMS | Деталь SCREW,TORX SCKT HD, SEMS | |
4 | 10201402 Деталь SCREW,10-24,BTN HD | Деталь SCREW,10-24,BTN HD | |
5 | 10201426 Деталь SCREW,SCREW,THREAD FORMING, M5, DELTA PT | Деталь SCREW,SCREW,THREAD FORMING, M5, DELTA PT | |
6 | 12200025 Деталь RING,RETG,X | panel mount | Деталь RING,RETG,X | panel mount | |
7 | 69200247 Деталь HARNESS,WIRE,X | speaker jumper, with 10065, 72169-07, 72290-94, 72294-94, 73213-07, 69200272 | Деталь HARNESS,WIRE,X | speaker jumper, with 10065, 72169-07, 72290-94, 72294-94, 73213-07, 69200272 | |
8 | 72169-07 Деталь TERMINAL,PIN,#16-20 AWG | pin, 16-20 AWG | Деталь TERMINAL,PIN,#16-20 AWG | pin, 16-20 AWG | |
9 | 72290-94 Деталь TERMINAL,.250F,INSULATED | insulated, female, black | Деталь TERMINAL,.250F,INSULATED | insulated, female, black | |
10 | 72294-94 Деталь TERMINAL FEM IN #16-20AWG | insulated, female, white | Деталь TERMINAL FEM IN #16-20AWG | insulated, female, white | |
11 | 73213-07 Деталь RETAINER,X-MAS TREE CLIP | anchored | Деталь RETAINER,X-MAS TREE CLIP | anchored | |
12 | 69200272 Деталь CONNECTOR,X | two-way pin (black) | Деталь CONNECTOR,X | two-way pin (black) | |
13 | 76000789 Деталь ANTENNA,GPS | gps | Деталь ANTENNA,GPS | gps | |
14 | 76000819A Деталь SPEAKER,AUD SYS,5.25 DIAMETER | front | Деталь SPEAKER,AUD SYS,5.25 DIAMETER | front | |
15 | 76001484 Деталь AMPLIFIER,AUD SYS,4 CHANNEL,200 WATT | four channel | Деталь AMPLIFIER,AUD SYS,4 CHANNEL,200 WATT | four channel | |
16 | 76001327 Деталь SPEAKER,AUD SYS,GRILLE,STD,LH | left, includes 12200025, 76001252 | Деталь SPEAKER,AUD SYS,GRILLE,STD,LH | left, includes 12200025, 76001252 | |
17 | 76001328 Деталь SPEAKER,AUD SYS,GRILLE,STD,RH | right, includes 12200025, 76001253 | Деталь SPEAKER,AUD SYS,GRILLE,STD,RH | right, includes 12200025, 76001253 | |
18 | 76001235 Деталь ANTENNA,ACT, AM/FM/DAB | AM/FM/DAB, for option code 940 (AUS, AU2, ENG, EN2, HDI, HD4) | Деталь ANTENNA,ACT, AM/FM/DAB | AM/FM/DAB, for option code 940 (AUS, AU2, ENG, EN2, HDI, HD4) | |
18 | 76001251 Деталь ANTENNA,ACT, AM/FM | AM/FM, for option codes 939, 941 (BRZ, CAL, CAN, DOM, HDI, HD4, JPN, JP2, IN2, AZN, CHN) | Деталь ANTENNA,ACT, AM/FM | AM/FM, for option codes 939, 941 (BRZ, CAL, CAN, DOM, HDI, HD4, JPN, JP2, IN2, AZN, CHN) | |
19 | 76001252 Деталь SPEAKER,AUD SYS,GRILLE,GASKET,FLH,LH | speaker grill, left | Деталь SPEAKER,AUD SYS,GRILLE,GASKET,FLH,LH | speaker grill, left | |
20 | 76001253 Деталь SPEAKER,AUD SYS,GRILLE,GASKET,FLH,RH | speaker grill, right | Деталь SPEAKER,AUD SYS,GRILLE,GASKET,FLH,RH | speaker grill, right |
