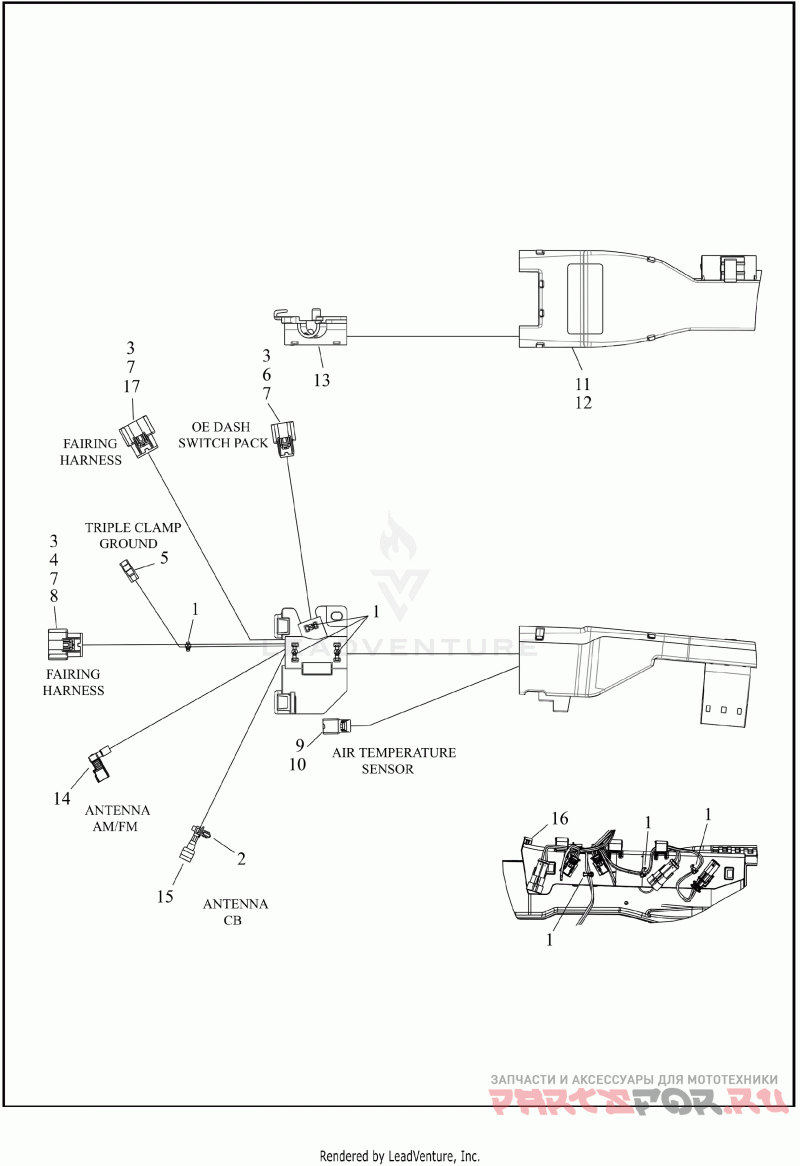

WIRING HARNESS, MAIN - FLHTCUTG
Harley Davidson FLHTCUTG 1MAF TRI GLIDE ULTRA (2024)
| # | oem код | название | цена |
|---|---|---|---|
69203639 Деталь HARNESS,WIRE,MAIN,W/ABS,FLHTCUTG | Деталь HARNESS,WIRE,MAIN,W/ABS,FLHTCUTG | ||
1 | 10065 Деталь STRAP,TIE,CABLE | Деталь STRAP,TIE,CABLE | |
2 | 10177 Деталь CABLE STRAP,X-MAS TREE MOUNT | anchored | Деталь CABLE STRAP,X-MAS TREE MOUNT | anchored | |
3 | 72168-07 Деталь TERMINAL,SOCKET,#18-20 AWG | socket, 18-20 AWG | Деталь TERMINAL,SOCKET,#18-20 AWG | socket, 18-20 AWG | |
4 | 72272-07 Деталь TERMINAL, SOCKET #14-16 AWG | socket, 14-16 AWG | Деталь TERMINAL, SOCKET #14-16 AWG | socket, 14-16 AWG | |
5 | 72290-94 Деталь TERMINAL,.250F,INSULATED | socket, 10-14 AWG | Деталь TERMINAL,.250F,INSULATED | socket, 10-14 AWG | |
6 | 72414-07BK Деталь HOUSING, 6-WAY SOCKET, BLACK | six-way socket (black) | Деталь HOUSING, 6-WAY SOCKET, BLACK | six-way socket (black) | |
7 | 72473-07 Деталь SEAL PIN | (natural) | Деталь SEAL PIN | (natural) | |
8 | 72489-07GY Деталь HOUSING, 12-WAY SOCKET, GRAY | 12-way socket (gray) | Деталь HOUSING, 12-WAY SOCKET, GRAY | 12-way socket (gray) | |
9 | 72721-07 Деталь TERMINAL, SOCKET #18-20 AWG, MOLEX MX64 | socket, 18-20 AWG | Деталь TERMINAL, SOCKET #18-20 AWG, MOLEX MX64 | socket, 18-20 AWG | |
10 | 69200201 Деталь HOUSING,2-WAY,SCKT,KEY B(PO) | two-way socket (black) | Деталь HOUSING,2-WAY,SCKT,KEY B(PO) | two-way socket (black) | |
11 | 69202720A Деталь BRKT,ELEC MT,WIRE TROUGH ASSEMBLY KIT | with 69202637 | Деталь BRKT,ELEC MT,WIRE TROUGH ASSEMBLY KIT | with 69202637 | |
12 | 69202636 Деталь BRKT,ELEC MT,COVER, WIRE TROUGH | wire trough, with 15368-01A and 69201459 | Деталь BRKT,ELEC MT,COVER, WIRE TROUGH | wire trough, with 15368-01A and 69201459 | |
13 | 69200214A Деталь WIRE HARN SUB-CMPNT,STEER CADDY,LH | left steer head | Деталь WIRE HARN SUB-CMPNT,STEER CADDY,LH | left steer head | |
14 | 69200391 Деталь WIRE HARNESS,AM/FM ANTENNA(PO) | AM/FM antenna | Деталь WIRE HARNESS,AM/FM ANTENNA(PO) | AM/FM antenna | |
15 | 69200394 Деталь WIRE HARNESS,CB ANTENNA(PO) | CB antenna | Деталь WIRE HARNESS,CB ANTENNA(PO) | CB antenna | |
16 | 69201287A Деталь BRKT,ELEC MT,PT CADDY | mounting, electrical connector | Деталь BRKT,ELEC MT,PT CADDY | mounting, electrical connector | |
17 | 72166-07BK Деталь HOUSING,16-WAY,SCKT/BLACK | 16-way socket (black) | Деталь HOUSING,16-WAY,SCKT/BLACK | 16-way socket (black) |
