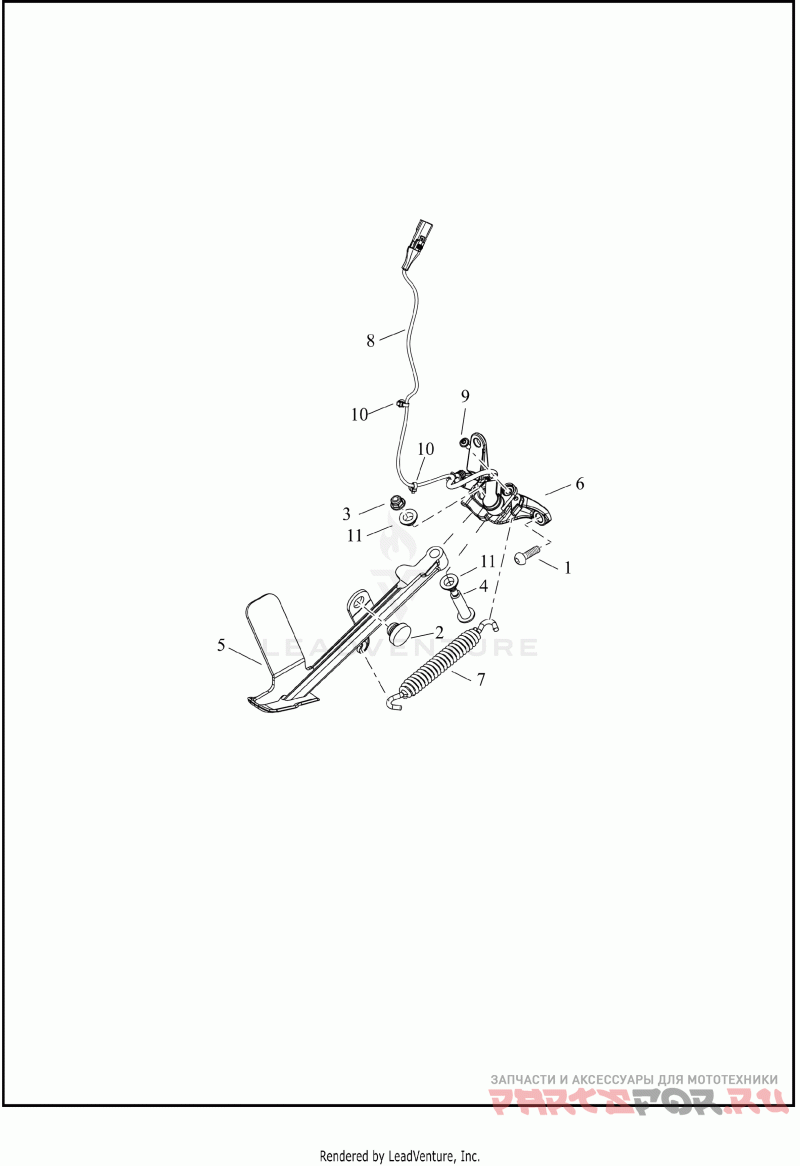

JIFFY STAND
Harley Davidson RH975 1ZH1 NIGHTSTER (2023)
| # | oem код | название | цена |
|---|---|---|---|
1 | 10201312 Деталь SCREW,BHCS, M8X1.25-25 | Деталь SCREW,BHCS, M8X1.25-25 | |
2 | 50245-07 Деталь S-STND LEG SUB-CMPNT,BUMPER | leg | Деталь S-STND LEG SUB-CMPNT,BUMPER | leg | |
3 | 10100153 Деталь NUT,FLANGE,M6,LOCKING | Деталь NUT,FLANGE,M6,LOCKING | |
4 | 10201007 Деталь SCREW,SHOULDER BOLT, M6 | Деталь SCREW,SHOULDER BOLT, M6 | |
5 | 50000221 Деталь LEG,S-STND,PNTD,155MM | side stand | Деталь LEG,S-STND,PNTD,155MM | side stand | |
6 | 50000234 Деталь BRKT,S-STND,MOUNT | sidestand mount | Деталь BRKT,S-STND,MOUNT | sidestand mount | |
7 | 49725-07A Деталь S-STND BRKT SUB-CMPNT,SPRING | side stand | Деталь S-STND BRKT SUB-CMPNT,SPRING | side stand | |
8 | 32700163 Деталь SENSOR,PROX,SIDE STAND | (Brazil, ENG, EN2, HDI, HD3, HD4, IN2) | Деталь SENSOR,PROX,SIDE STAND | (Brazil, ENG, EN2, HDI, HD3, HD4, IN2) | |
9 | 10200795 Деталь SCREW,BTH FLG, TORX, M4X10 | (Brazil, ENG, EN2, HDI, HD3, HD4, IN2) | Деталь SCREW,BTH FLG, TORX, M4X10 | (Brazil, ENG, EN2, HDI, HD3, HD4, IN2) | |
10 | 10177 Деталь CABLE STRAP,X-MAS TREE MOUNT | (Brazil, ENG, EN2, HDI, HD3, HD4, IN2) | Деталь CABLE STRAP,X-MAS TREE MOUNT | (Brazil, ENG, EN2, HDI, HD3, HD4, IN2) | |
11 | 53176-08 Деталь BUSHING,PLAIN,SHOULDER,15/32 O.D. | Деталь BUSHING,PLAIN,SHOULDER,15/32 O.D. |
