CRANKCASE AND GEARCASE для мотоциклов Harley Davidson RH975 1ZH1 NIGHTSTER (2023) (2023)

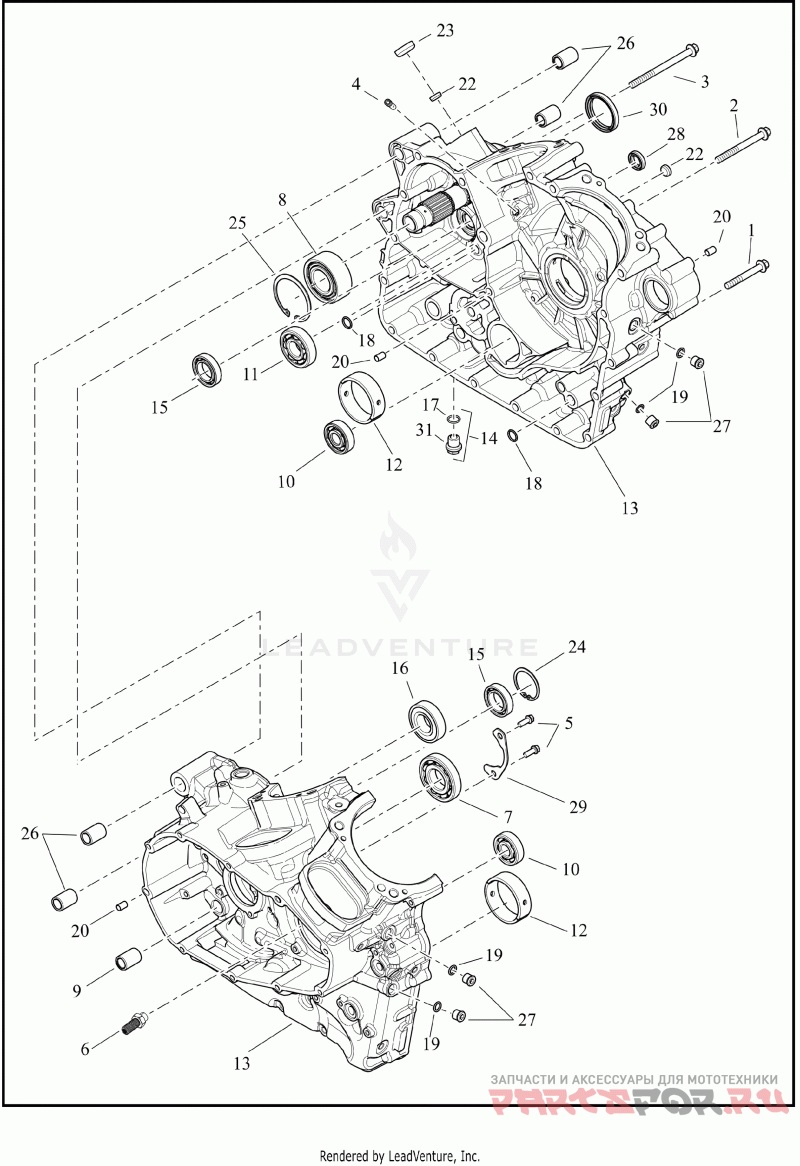

CRANKCASE AND GEARCASE

Harley Davidson RH975 1ZH1 NIGHTSTER (2023)

oem код

название

цена

10200691

Деталь SCREW,FLANGE,HEX,M8 X 60

10200692

Деталь SCREW,FLANGE,HEX,M8 X 80

10200693

Деталь SCREW,FLANGE,HEX,M8 X 105

62700269

Деталь JET,OIL,XMSN SHAFT,CLUTCH | oil transmission shaft

10201161

Деталь SCREW,FLANGE,HEX,M6 X 16

10600056B

Деталь WASHER,CUST,THREADED TOPHAT, CAMDRIVE | tophat

11000196

Деталь BEARING,ROLL ELEM,SINGLE ROW BALL

11000198

Деталь BEARING,ROLL ELEM,DOUBLE ROW BALL | roll element, double row ball

11000199

Деталь BUSHING,PLAIN,SHAFT | plain, shaft

11000201

Деталь BEARING,ROLL ELEM,BALL BEARING, 6302 | roll element

11000207

Деталь BEARING,ROLL ELEM,SINGLE ROW BALL | roll element single

11000209

Деталь BEARING,PLAIN,MAIN, BLK | plain, main (black)

24400266

Деталь CRANKCASE,SET,ASSY,BLK | (black)

62700241

Деталь PLUG,OIL DRAIN,ASSY,M14 | oil drain assembly with 62700041, 11900045

11000226

Деталь BEARING,ROLL ELEM,SINGLE ROW BALL | roll element

11000241

Деталь BEARING,ROLL ELEM,SINGLE ROW BALL | roll

11900045

Деталь O-RING,DRAIN PLUG | drain plug

11900156

Деталь O-RING,SPLIT LINE DOWEL | split line dowel

11900157

Деталь O-RING,M12 | plug

12000072

Деталь PIN,DOWEL,8MM DIA X 12MM LONG | dowel, 8 mm

12000095

Деталь PIN,DOWEL,13MM | dowel, 13 mm

34800058

Деталь SEAL,DRLN,42 MM CRKC SEAL | 42mm, output shaft

62700241

Деталь PLUG,OIL DRAIN,ASSY,M14 | magnetic, drain

12200200

Деталь RING,RETG,BEARING,SHIFTER DRUM | retaining bearing shifter drum

12200201

Деталь RING,RETG,BEARING,OUTPUT SHAFT | retaining bearing output shaft

12400220

Деталь SPACER,ENGINE MOUNT,RR

12600226

Деталь HDW,MISC,PLUG,ISO,M12 | with 11900157

18100023

Деталь OIL SEAL,SHIFTER SHAFT | shift shaft seal

24400294

Деталь CRANKCASE SUB-CMPNT,PLATE,RETAINER | subcomponent, plate, retainer
