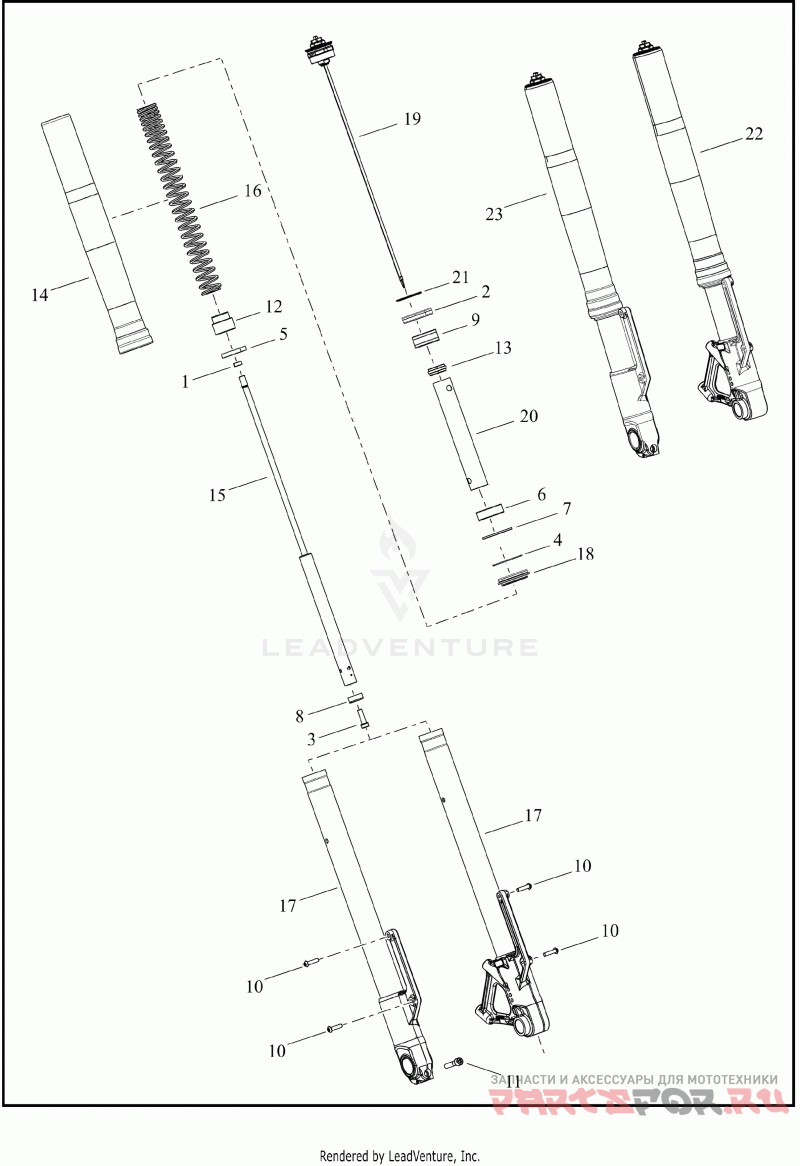

FORK, FRONT

Harley Davidson RH1250S 1ZC4 SPORTSTER S (2023)

Harley Davidson
#oem кодцена
1
7468M
Деталь NUT,HEX
2
12085
Деталь OIL SEAL(PO)
3
45405-75A
Деталь SCREW,HX-SOC CAP/SEMS,FRT FORK
4
45842-77A
Деталь RETAINING RING,OIL SEAL | oil seal
5
46329-06
Деталь O-RING,X
6
46343-06
Деталь FR TLSCP FORK SUB-CMPNT,X
7
46346-06
Деталь SPACER,X
8
46348-06
Деталь BUSHING,SLIDER | slider
9
46353-06
Деталь CENTERING PLATE
10
10201021
Деталь SCREW,BHCS, M6X1.0-25
11
10201048
Деталь SCREW,6-LOBE HEAD CAP
12
45500531
Деталь FR TLSCP FORK SUB-CMPNT,SPRING JOINT | left
13
45500582
Деталь FR TLSCP FORK SUB-CMPNT,SPRING SEAT STOP
14
45500637
Деталь FR TLSCP FORK SUB-CMPNT,OUTER TUBE
15
45500638
Деталь FR TLSCP FORK SUB-CMPNT,LH DAMPER COMP | (left)
15
45500639
Деталь FR TLSCP FORK SUB-CMPNT,RH DAMPER COMP | (right)
16
45500640
Деталь SPRING,FR TLSCP FORK,COMPRESSION SPRING | compression
17
45500642
Деталь SLIDER,FR TLSCP FORK,LH SLIDER | (left)
17
45500643
Деталь SLIDER,FR TLSCP FORK,RH SLIDER | (right)
18
45500650
Деталь SEAL,FR TLSCP FORK,DUST SEAL
19
45500657
Деталь FR TLSCP FORK SUB-CMPNT,LH FORK TUBE CAP | fork tube (left)
19
45500658
Деталь FR TLSCP FORK SUB-CMPNT,RH FORK TUBE CAP | fork tube (right)
20
45500663
Деталь FR TLSCP FORK SUB-CMPNT,SPRING COLLAR
21
J8146.1AS
Деталь SEAT,RUBBER/FORK | rubber
22
45400264
Деталь FORK,FR TLSCP,LH,43MM,INV | (left)
23
45400265
Деталь FORK,FR TLSCP,RH,43MM,INV | (right)
