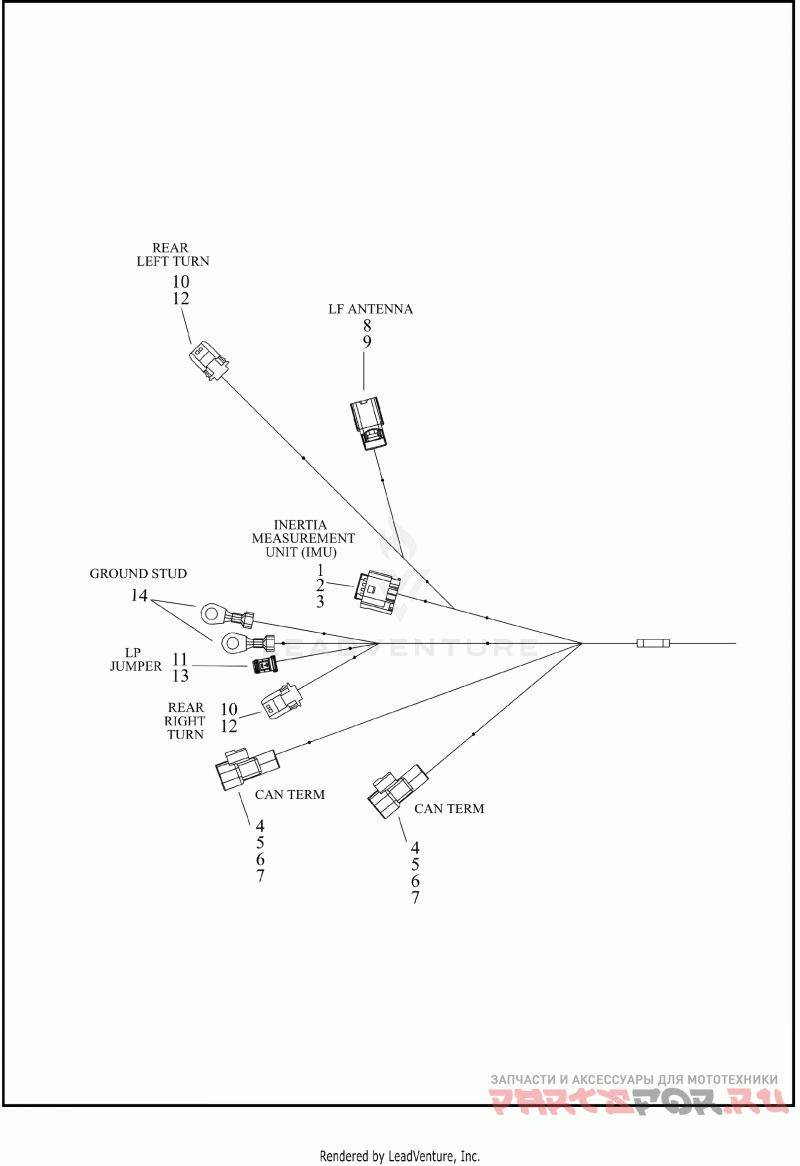

WIRING HARNESS, MAIN RA1250 (4 OF 7)
Harley Davidson RA1250 1ZDS PAN AMERICA 1250 (2023)
| # | oem код | название | цена |
|---|---|---|---|
69203297 Деталь HARNESS,WIRE,MAIN | Деталь HARNESS,WIRE,MAIN | ||
1 | 69201301 Деталь SEAL,CONN/TERM,X | Деталь SEAL,CONN/TERM,X | |
2 | 69201779 Деталь CONNECTOR,IMU | Деталь CONNECTOR,IMU | |
3 | 69201814 Деталь TERMINAL,SOCKET | socket | Деталь TERMINAL,SOCKET | socket | |
4 | 69202958 Деталь CONNECTOR,RESISTOR PACK,BLACK | resistor pack (black) | Деталь CONNECTOR,RESISTOR PACK,BLACK | resistor pack (black) | |
5 | 69202959 Деталь CONNECTOR,2-WAY,PIN,BLACK | two-way pin (black) | Деталь CONNECTOR,2-WAY,PIN,BLACK | two-way pin (black) | |
6 | 69202491 Деталь TERMINAL,PIN,0.64MM,0.3-0.5MM WIRE | pin, 20-AWG | Деталь TERMINAL,PIN,0.64MM,0.3-0.5MM WIRE | pin, 20-AWG | |
7 | 69202492 Деталь SEAL,CONN/TERM,1.60-2.10MM OD | 20-AWG (green) | Деталь SEAL,CONN/TERM,1.60-2.10MM OD | 20-AWG (green) | |
8 | 72720-07 Деталь HOUSING,2-WAY,SCKT | two-way socket (black) | Деталь HOUSING,2-WAY,SCKT | two-way socket (black) | |
9 | 72721-07 Деталь TERMINAL, SOCKET #18-20 AWG, MOLEX MX64 | socket, 18-20 AWG | Деталь TERMINAL, SOCKET #18-20 AWG, MOLEX MX64 | socket, 18-20 AWG | |
10 | 72905-11 Деталь HOUSING,2-WAY PIN | two-way pin (black) | Деталь HOUSING,2-WAY PIN | two-way pin (black) | |
11 | 72906-11 Деталь HOUSING,2-WAY SOCKET(PO) | two-way socket (black) | Деталь HOUSING,2-WAY SOCKET(PO) | two-way socket (black) | |
12 | 72909-11 Деталь TERMINAL,PIN,#20-22AWG | pin, 20-22 AWG | Деталь TERMINAL,PIN,#20-22AWG | pin, 20-22 AWG | |
13 | 72910-11 Деталь TERMINAL,SOCKET,#20-22AWG | socket, 20-22 AWG | Деталь TERMINAL,SOCKET,#20-22AWG | socket, 20-22 AWG | |
14 | 9819 Деталь TERMINAL RING .25 STUD #12AWGX2 | ring, 12 AWG | Деталь TERMINAL RING .25 STUD #12AWGX2 | ring, 12 AWG |
