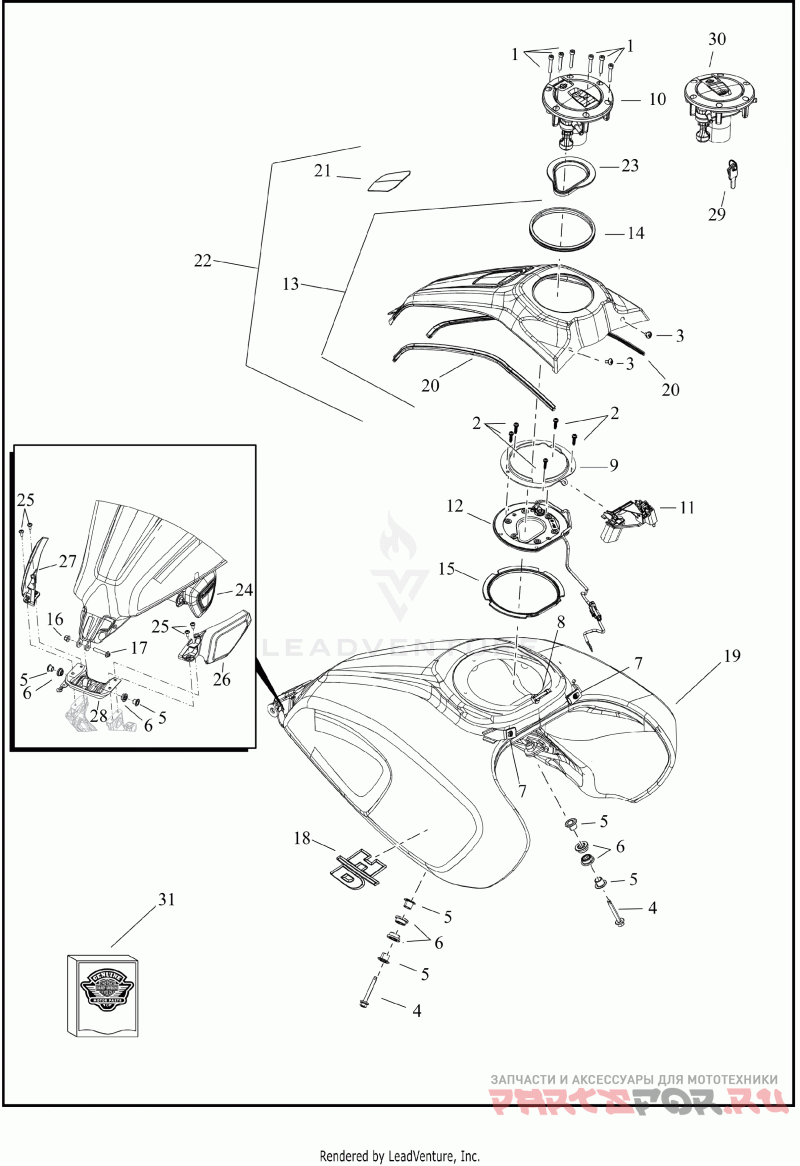

Топлевный бак
Harley Davidson RA1250 1ZDS PAN AMERICA 1250 (2023)
| # | oem код | название | цена |
|---|---|---|---|
1 | 10201318 Деталь SCREW,SHCS, 10-24X1.25 | Деталь SCREW,SHCS, 10-24X1.25 | |
2 | 10201216 Деталь SCREW,W/ LOCK PATCH | Деталь SCREW,W/ LOCK PATCH | |
3 | 10500135 Деталь SCREW,CUST,6 LOBE,SHOULDER,M5X10 | Деталь SCREW,CUST,6 LOBE,SHOULDER,M5X10 | |
4 | 10500163 Деталь SCREW,CUST,HEXFLG,6 LOBE,M6X1.0,MATPOINT | Деталь SCREW,CUST,HEXFLG,6 LOBE,M6X1.0,MATPOINT | |
5 | 11000249 Деталь BUSHING,PLAIN,FUEL TANK MOUNTING, FRONT | Деталь BUSHING,PLAIN,FUEL TANK MOUNTING, FRONT | |
6 | 12100200 Деталь GROMMET,DAMPER, FUEL TANK MOUNT, FRONT | Деталь GROMMET,DAMPER, FUEL TANK MOUNT, FRONT | |
7 | 12200212 Деталь CLIP,RETG,U-NUT, M5X0.8 | retaining | Деталь CLIP,RETG,U-NUT, M5X0.8 | retaining | |
8 | 12500015 Деталь STRAP,TIE,XMAS,2 PIECE | Деталь STRAP,TIE,XMAS,2 PIECE | |
9 | 60900088 Деталь BRKT,FUEL/INTK MTG,SENSOR,CLAMP RING | fuel intake mounting sensor clamp ring | Деталь BRKT,FUEL/INTK MTG,SENSOR,CLAMP RING | fuel intake mounting sensor clamp ring | |
10 | 61001145 Деталь KIT,FTK,NONLOCKING FILLER KIT ASSY | with flange plate and gasket 61100207 (Canada, Domestic only) | Деталь KIT,FTK,NONLOCKING FILLER KIT ASSY | with flange plate and gasket 61100207 (Canada, Domestic only) | |
11 | 61200064 Деталь SENSOR,FUEL LVL,TUNNEL MT | Деталь SENSOR,FUEL LVL,TUNNEL MT | |
12 | 61001144 Деталь KIT,FTK,LOCKING FILLER KIT ASSY | with LOCKING fuel cap and gasket 61100207 (all except Canada, Domestic) | Деталь KIT,FTK,LOCKING FILLER KIT ASSY | with LOCKING fuel cap and gasket 61100207 (all except Canada, Domestic) | |
12 | 61001145 Деталь KIT,FTK,NONLOCKING FILLER KIT ASSY | with NON-LOCKING fuel cap and gasket 61100207 (Canada, Domestic) | Деталь KIT,FTK,NONLOCKING FILLER KIT ASSY | with NON-LOCKING fuel cap and gasket 61100207 (Canada, Domestic) | |
13 | 70900945 Деталь SUB-ASSY,CONSOLE,TANK CONSOLE,BLACK | with 70900947, 70900948 | Деталь SUB-ASSY,CONSOLE,TANK CONSOLE,BLACK | with 70900947, 70900948 | |
14 | 70900948 Деталь CONSOLE,TANK,GASKET, CAP, FUEL | Деталь CONSOLE,TANK,GASKET, CAP, FUEL | |
15 | 61100198 Деталь RING,FUEL CAP RETG,GASKET, TOP PLATE | top plate service | Деталь RING,FUEL CAP RETG,GASKET, TOP PLATE | top plate service | |
16 | 10100134 Деталь NUT,FLANGE, M8X1.25, LOCKING | Деталь NUT,FLANGE, M8X1.25, LOCKING | |
17 | 10500162 Деталь SCREW,CUST,HEX FLANGE,6 LOBE,M8X1.25 | Деталь SCREW,CUST,HEX FLANGE,6 LOBE,M8X1.25 | |
18 | 14101515 Деталь MEDALLION,LH,FUEL TANK | left (not shown) | Деталь MEDALLION,LH,FUEL TANK | left (not shown) | |
18 | 14101516 Деталь MEDALLION,RH,FUEL TANK | right | Деталь MEDALLION,RH,FUEL TANK | right | |
19 | 61000534 Деталь TANK,FUEL,PRIME | prime | Деталь TANK,FUEL,PRIME | prime | |
19 | 61000868DH Деталь TANK,FUEL,ASSY,SOLID,W/MEDALLIONS | Vivid Black, color option 10 | Деталь TANK,FUEL,ASSY,SOLID,W/MEDALLIONS | Vivid Black, color option 10 | |
20 | 70900947 Деталь CONSOLE,TANK,GASKET, TRIM | Деталь CONSOLE,TANK,GASKET, TRIM | |
23 | 10039 Деталь CABLE STRAP | (Australia, AU2, Canada, Domestic) | Деталь CABLE STRAP | (Australia, AU2, Canada, Domestic) | |
24 | 57300274 Деталь BODYWORK MISC CMPNT,V-SIDE COVER, RH | right hand | Деталь BODYWORK MISC CMPNT,V-SIDE COVER, RH | right hand | |
25 | 10200924 Деталь SCREW,BHCS, FLANGE, M6X1.0-16 | Деталь SCREW,BHCS, FLANGE, M6X1.0-16 | |
26 | 57300223 Деталь BODYWORK MISC CMPNT,SIDE COVER, RH | Деталь BODYWORK MISC CMPNT,SIDE COVER, RH | |
27 | 57300224 Деталь BODYWORK MISC CMPNT,SIDE COVER, LH | Деталь BODYWORK MISC CMPNT,SIDE COVER, LH | |
28 | 47200619 Деталь STRUCT TAILSECT SUB-CMPNT,FR,UPR,X-MBR | Деталь STRUCT TAILSECT SUB-CMPNT,FR,UPR,X-MBR | |
29 | 90300147 Деталь KEY,SET | (specify key number) | Деталь KEY,SET | (specify key number) | |
30 | 61001144 Деталь KIT,FTK,LOCKING FILLER KIT ASSY | with flange plate and gasket 61100207 (all except Canada, Domestic) | Деталь KIT,FTK,LOCKING FILLER KIT ASSY | with flange plate and gasket 61100207 (all except Canada, Domestic) | |
31 | 61100200 Деталь KIT,FUEL FILL,LOCK, FUEL CAP W/KEY | (all except Canada, Domestic) | Деталь KIT,FUEL FILL,LOCK, FUEL CAP W/KEY | (all except Canada, Domestic) | |
32 | 61100174 Деталь HOSE,FTK VAPOR VENT,OVERFILL | fuel tank vapor vent overfill (Australia, AU2, Canada, Domestic) | Деталь HOSE,FTK VAPOR VENT,OVERFILL | fuel tank vapor vent overfill (Australia, AU2, Canada, Domestic) | |
33 | 60800113 Деталь HOSE,CARBON CSTR,TANK TO MID | with 10800182 (Australia, AU2, Canada, Domestic) | Деталь HOSE,CARBON CSTR,TANK TO MID | with 10800182 (Australia, AU2, Canada, Domestic) | |
34 | 12600213 Деталь FASTENER,TREE,6MM,DBL CLIP | anchored (Australia, AU2, Canada, Domestic) | Деталь FASTENER,TREE,6MM,DBL CLIP | anchored (Australia, AU2, Canada, Domestic) | |
35 | 10800182 Деталь CLAMP,HOSE,OETIKER | (Australia, AU2, Canada, Domestic) | Деталь CLAMP,HOSE,OETIKER | (Australia, AU2, Canada, Domestic) | |
36 | 61100207 Деталь CAP,FUEL,GASKET | Use on fuel cap kits 61001144 or 61001145 | Деталь CAP,FUEL,GASKET | Use on fuel cap kits 61001144 or 61001145 | |
36 | 61100197 Деталь CAP,FUEL,GASKET | Use on Original Equipment fuel cap only | Деталь CAP,FUEL,GASKET | Use on Original Equipment fuel cap only |
