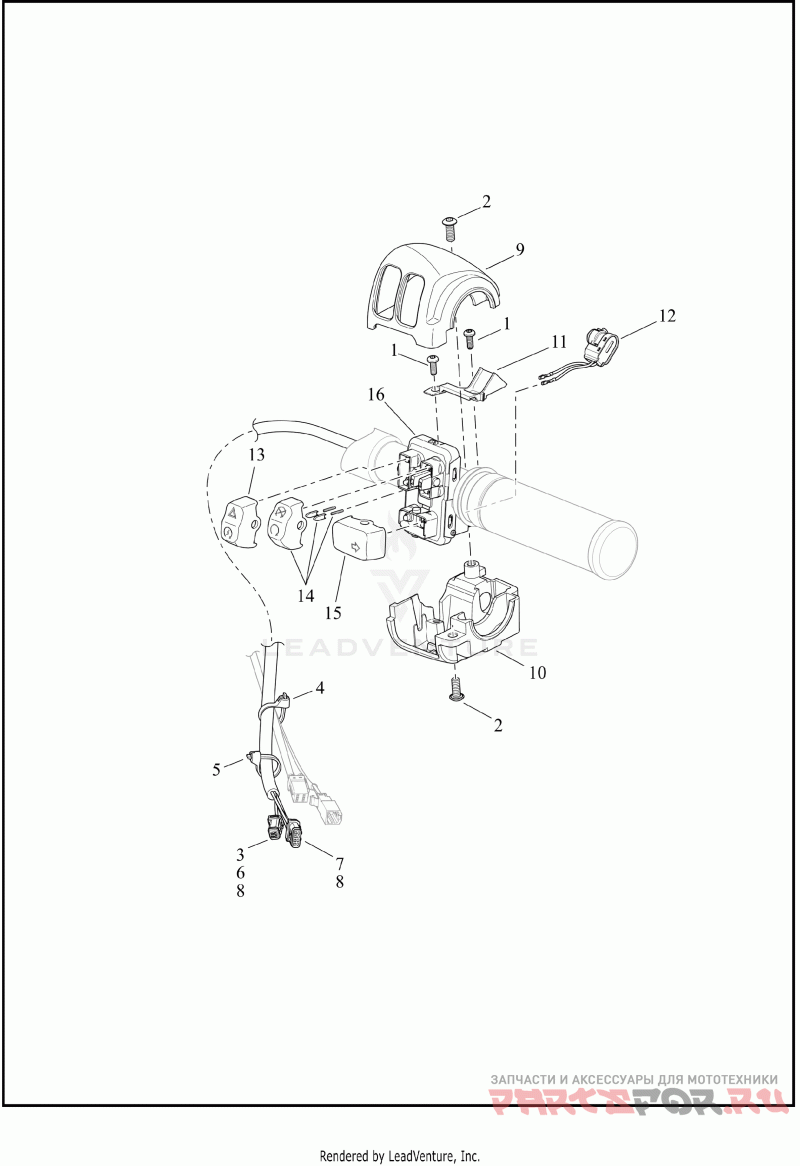

SWITCHES, HANDLEBAR RIGHT, FRONT
Harley Davidson FXST 1BVJ SOFTAIL STANDARD (2023)
| # | oem код | название | цена |
|---|---|---|---|
1 | 2261 Деталь SCREW,PAN HD TORX,6-32 X 3/8 | Деталь SCREW,PAN HD TORX,6-32 X 3/8 | |
2 | 3658 Деталь SCREW,BTN,TORX | Деталь SCREW,BTN,TORX | |
3 | 5118 Деталь TERMINAL,X | Деталь TERMINAL,X | |
4 | 10006 Деталь STRAP,TIE,X | Деталь STRAP,TIE,X | |
5 | 10181 Деталь STRAP,TIE,X | Деталь STRAP,TIE,X | |
6 | 72906-11 Деталь HOUSING,2-WAY SOCKET(PO) | two-way socket | Деталь HOUSING,2-WAY SOCKET(PO) | two-way socket | |
7 | 72908-11 Деталь CONNECTOR,X | four-way socket | Деталь CONNECTOR,X | four-way socket | |
8 | 72910-11 Деталь TERMINAL,SOCKET,#20-22AWG | socket 20-22 AWG | Деталь TERMINAL,SOCKET,#20-22AWG | socket 20-22 AWG | |
9 | 72921-11 Деталь HOUSING,RH/UPR,SWITCH,BLACK | (upper) (right) (black) | Деталь HOUSING,RH/UPR,SWITCH,BLACK | (upper) (right) (black) | |
10 | 72923-11 Деталь HOUSING,RH/LWR,SWITCH,BLK(PO) | (lower) (right) (black) | Деталь HOUSING,RH/LWR,SWITCH,BLK(PO) | (lower) (right) (black) | |
11 | 72940-11 Деталь BRACKET,RH/LWR SWITCH(PO) | lower switch | Деталь BRACKET,RH/LWR SWITCH(PO) | lower switch | |
12 | 71500118A Деталь SWITCH BRAKE | brake | Деталь SWITCH BRAKE | brake | |
13 | 71500298 Деталь HAND CONT/SWGR,KEY CAP,START/HAZARD | hazard switch | Деталь HAND CONT/SWGR,KEY CAP,START/HAZARD | hazard switch | |
14 | 71500299 Деталь HAND CONT/SWGR,KEY CAP,OFF/RUN SWITCH | off/run switch, with pins and springs | Деталь HAND CONT/SWGR,KEY CAP,OFF/RUN SWITCH | off/run switch, with pins and springs | |
15 | 71500300 Деталь HAND CONT/SWGR,KEY CAP,SWITCH,RH-TSIGNAL | right turn switch | Деталь HAND CONT/SWGR,KEY CAP,SWITCH,RH-TSIGNAL | right turn switch | |
16 | 71500462 Деталь HAND CONT,SWITCH MODULE, RH | right side, NON-TC (Non-Traction Control) with 6, 7, 8, 12, 13, 14, 15 | Деталь HAND CONT,SWITCH MODULE, RH | right side, NON-TC (Non-Traction Control) with 6, 7, 8, 12, 13, 14, 15 |
