Аккумулятор

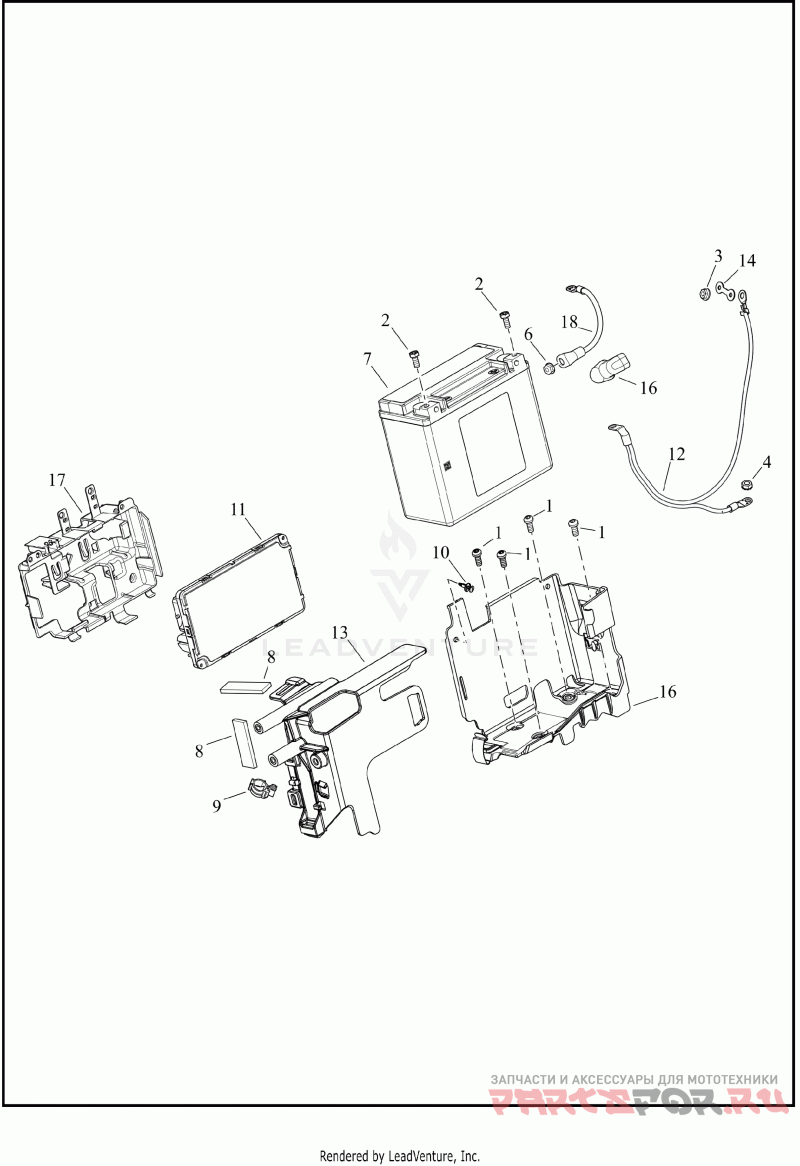

Harley Davidson FXLRST 1YXZ LOW RIDER ST (2023)

Harley Davidson
#oem кодцена
1
10500104
Деталь SCREW,CUST,BTN,TORX
2
4312C
Деталь BOLT,HEX,X-RECESS/SEMS
3
7495
Деталь NUT,FLANGE,HEX
4
7792
Деталь NUT,HEX,KEPS/.250-20
5
29519-01
Деталь CLIP,RETAINING | retaining
6
31694-90
Деталь NUT,X
7
65989-97E
Деталь BATTERY,17.5AH,SEALED | sealed (Domestic)
7
66000065A
Деталь BATTERY,17.5AH,SEALED,CKD | sealed (Brazil)
7
66000362
Деталь KIT,BAT,17.5AH | KIT, sealed (China)
7
66000207B
Деталь KIT,BAT,17.5AH | KIT, sealed (except Brazil, China and Domestic)
8
66494-01
Деталь PAD,BAT,REAR | battery
9
12200225
Деталь CLIP,RETG,X-MAS TREE,SNAPPING | anchored
10
12600067
Деталь FASTENER,RVT,PLASTIC | plastic
11
41000349G
Деталь MODULE,SCTY SYS CONT,Y-AXIS, 434MHZ | 434 MHZ, security (except Japan, JP2)
11
41000350G
Деталь MODULE,SCTY SYS CONT,Y-AXIS, 315MHZ | 315 MHZ, security (Japan, JP2)
12
66000233
Деталь CABLE,NEG BAT,TO,POWERTRAIN,FRM | battery negative
13
66000248
Деталь STRAP,BAT,RIGID BOLT ON | battery, bolt-on, with 66494-01
14
69201770
Деталь BRKT,ELEC MT,ANTIROTATION
15
69201307
Деталь BOOT,POS CABLE ASY,WIRE HARNESS | battery cable
16
69201523
Деталь ELEC MISC CMPNT,BATTERY BOX CADDY ASSY | battery, with 29519-01
17
69201632
Деталь ELEC MISC CMPNT,BCM,CADDY | body control module (BCM)
18
69201855
Деталь HARNESS,WIRE,POSITIVE BATTERY | positive battery cable
