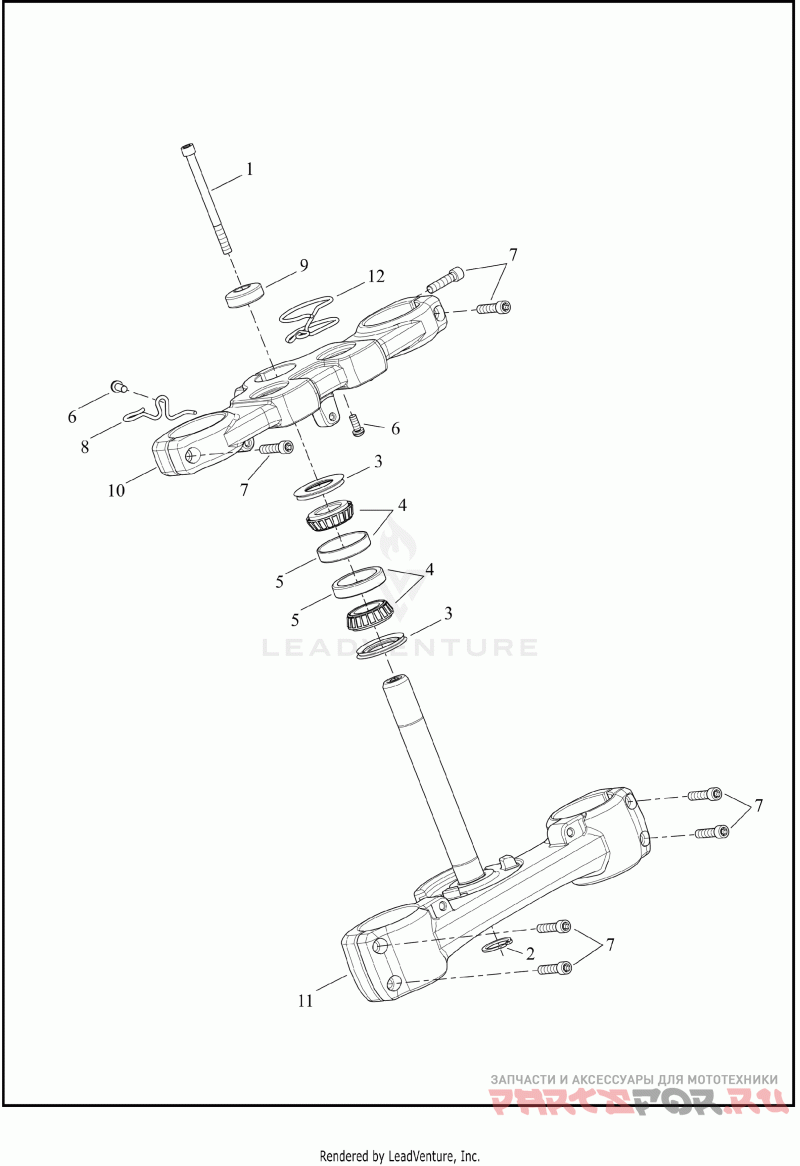

FORK BRACKETS, FRONT - FXFBS
Harley Davidson FXFBS 1YLK FAT BOB 114 (2023)
| # | oem код | название | цена |
|---|---|---|---|
1 | 881A Деталь SCREW,X | Деталь SCREW,X | |
2 | 45611-86 Деталь RETAINING RING | fork stem | Деталь RETAINING RING | fork stem | |
3 | 48184-01 Деталь FR SPNSN/STRG MISC CMPNT,X | roller bearing | Деталь FR SPNSN/STRG MISC CMPNT,X | roller bearing | |
4 | 48300-60 Деталь BOM BEARING,STEERHD | with 48315-60 | Деталь BOM BEARING,STEERHD | with 48315-60 | |
5 | 45700080 Деталь KIT,STRG,STEERING HEAD | Деталь KIT,STRG,STEERING HEAD | |
6 | 10200422 Деталь SCREW,X | Деталь SCREW,X | |
7 | 10200541 Деталь SCREW,TORX SOCKET HEAD CAP | Деталь SCREW,TORX SOCKET HEAD CAP | |
8 | 41600275 Деталь BRKT,BRK MTG,WIREFORM | Деталь BRKT,BRK MTG,WIREFORM | |
9 | 45700034 Деталь STEM,STRG,TOP WASHER, BLK ANODIZED | steering stem | Деталь STEM,STRG,TOP WASHER, BLK ANODIZED | steering stem | |
10 | 45900191A Деталь CLAMP,UPR TPL,BLACK | (upper) | Деталь CLAMP,UPR TPL,BLACK | (upper) | |
11 | 45900192A Деталь CLAMP,LWR TPL,BLACK | fork, with 45611-86, 48184-01 and bearing cone (lower) | Деталь CLAMP,LWR TPL,BLACK | fork, with 45611-86, 48184-01 and bearing cone (lower) | |
12 | 69201696 Деталь GUIDE,WIRE,FR STEERING | Деталь GUIDE,WIRE,FR STEERING |
