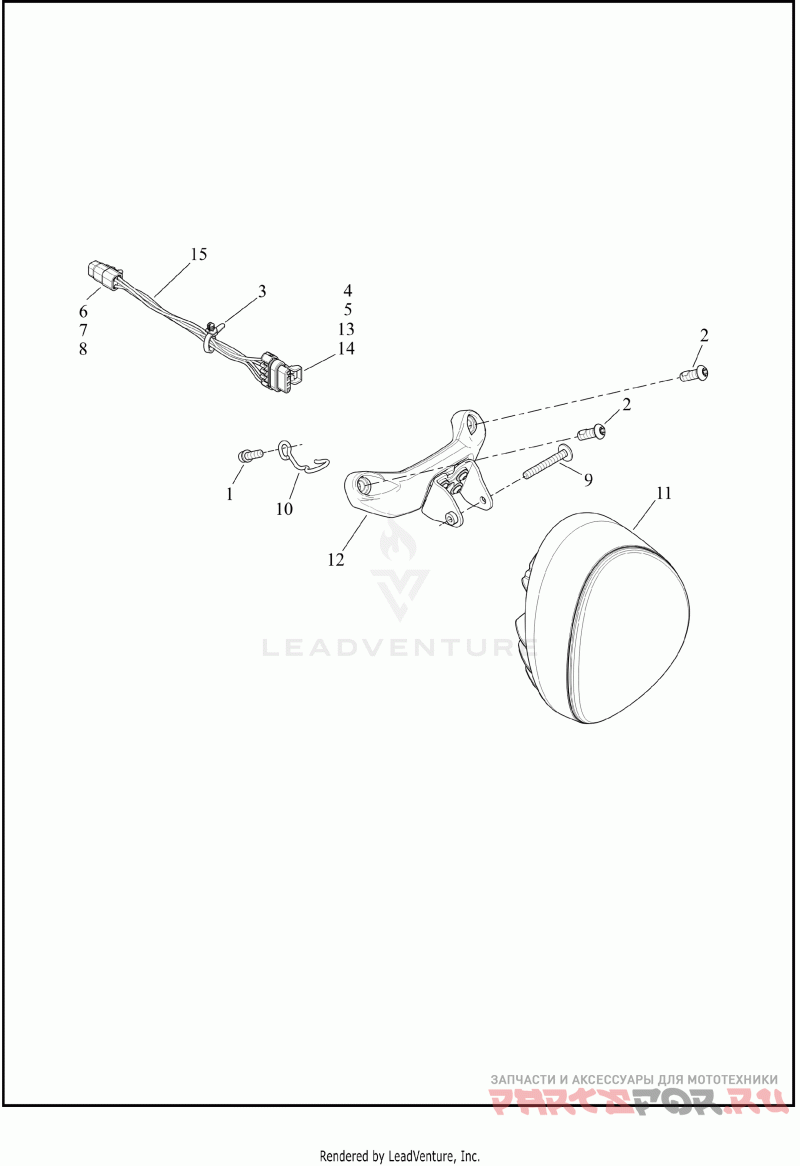

HEADLAMP - FXBR
Harley Davidson FXBR 1YEZ BREAKOUT (2023)
| # | oem код | название | цена |
|---|---|---|---|
1 | 780 Деталь SCREW,HEX SCKT/HD CAP,W/SEMS | Деталь SCREW,HEX SCKT/HD CAP,W/SEMS | |
2 | 4613 Деталь SCREW,BTN,TORX/LOCK | Деталь SCREW,BTN,TORX/LOCK | |
3 | 10177 Деталь CABLE STRAP,X-MAS TREE MOUNT | anchored | Деталь CABLE STRAP,X-MAS TREE MOUNT | anchored | |
4 | 72213-94 Деталь TERMINAL SCKT 16-20AWG | socket, 16-20 AWG | Деталь TERMINAL SCKT 16-20AWG | socket, 16-20 AWG | |
5 | 72610-08 Деталь SEAL, CABLE #18-20 AWG, WHITE | 18-20 AWG (white) | Деталь SEAL, CABLE #18-20 AWG, WHITE | 18-20 AWG (white) | |
6 | 74114-98BK Деталь HOUSING,4-WAY SOCKET/BLACK | four-way socket (black) | Деталь HOUSING,4-WAY SOCKET/BLACK | four-way socket (black) | |
7 | 74154-98 Деталь SECONDARY LOCK,4-WAY SOCKET | four-way socket (black) | Деталь SECONDARY LOCK,4-WAY SOCKET | four-way socket (black) | |
8 | 74191-98 Деталь SOCKET TERMINAL | socket, 16-20 AWG | Деталь SOCKET TERMINAL | socket, 16-20 AWG | |
9 | 10200112 Деталь SCREW,1/4-20 X 2,BTN HD | Деталь SCREW,1/4-20 X 2,BTN HD | |
10 | 37200311 Деталь CABLE,CL,WIREFORM | Деталь CABLE,CL,WIREFORM | |
11 | 67700344A Деталь HEADLIGHT,LED,OBLONG,BLK,LMP | LED, oblong (black) | Деталь HEADLIGHT,LED,OBLONG,BLK,LMP | LED, oblong (black) | |
12 | 67700468A Деталь BRKT,HDLT SPRT,OBLONG MOUNTING BRKT | headlamp support, with 10200147 | Деталь BRKT,HDLT SPRT,OBLONG MOUNTING BRKT | headlamp support, with 10200147 | |
13 | 69200254 Деталь CONNECTOR,4-WAY SOCKET(PO) | four-way socket (black) | Деталь CONNECTOR,4-WAY SOCKET(PO) | four-way socket (black) | |
14 | 69200256 Деталь LOCK, SECONDARY, 4WAY | four-way socket (black) | Деталь LOCK, SECONDARY, 4WAY | four-way socket (black) | |
15 | 69201777 Деталь HARNESS,WIRE,HEADLAMP JUMPER | headlamp, with 3, 4, 5, 6, 7, 8, 13 and 14 | Деталь HARNESS,WIRE,HEADLAMP JUMPER | headlamp, with 3, 4, 5, 6, 7, 8, 13 and 14 |
