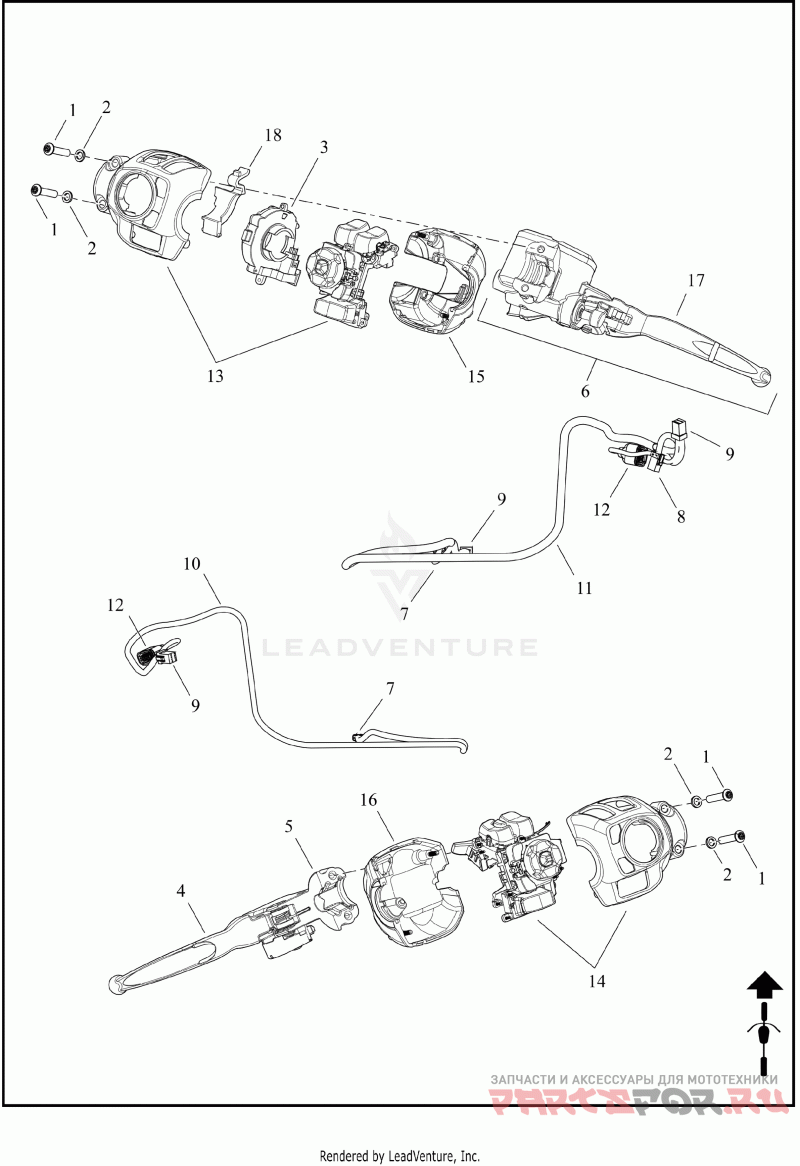

SWITCHES, HANDLEBAR
Harley Davidson FLTRXSE 1TC6 CVO ROAD GLIDE (2023)
| # | oem код | название | цена |
|---|---|---|---|
1 | 4132 Деталь SCREW,HX SOC/BTN/TORX HD | Деталь SCREW,HX SOC/BTN/TORX HD | |
2 | 6101 Шайба | Шайба | |
3 | 32700167 Деталь SENSOR,TWIST GRIP | Деталь SENSOR,TWIST GRIP | |
4 | 36700286 Деталь LEVER,CL,CAST,SATIN BLACK | (satin black) | Деталь LEVER,CL,CAST,SATIN BLACK | (satin black) | |
5 | 36700317 Деталь PERCH,CL LVR,SATIN BLACK | clutch lever (satin black) | Деталь PERCH,CL LVR,SATIN BLACK | clutch lever (satin black) | |
6 | 41701089 Деталь BRAKE MA CYL ASSY,FR BLK, BLK LVR | brake master cylinder assembly, with 41701406 (black) | Деталь BRAKE MA CYL ASSY,FR BLK, BLK LVR | brake master cylinder assembly, with 41701406 (black) | |
7 | 69200306 Деталь HOUSING,4-WAY SOCKET,WHITE(PO) | four-way socket (white) | Деталь HOUSING,4-WAY SOCKET,WHITE(PO) | four-way socket (white) | |
8 | 69201162 Деталь CONNECTOR,6-WAY SOCKET,BLACK | six-way socket (black) | Деталь CONNECTOR,6-WAY SOCKET,BLACK | six-way socket (black) | |
9 | 69201712 Деталь CONNECTOR,8-WAY,SKT | eight-way socket | Деталь CONNECTOR,8-WAY,SKT | eight-way socket | |
10 | 69203017 Деталь HARNESS,WIRE,CONT JMPR,LH | (left) | Деталь HARNESS,WIRE,CONT JMPR,LH | (left) | |
11 | 69203018 Деталь HARNESS,WIRE,CONT JMPR,RH | (right) | Деталь HARNESS,WIRE,CONT JMPR,RH | (right) | |
12 | 69203192 Деталь WIRE HARN SUB-CMPNT,BOOT,CONNECTOR | (right) | Деталь WIRE HARN SUB-CMPNT,BOOT,CONNECTOR | (right) | |
13 | 71500609B Деталь HAND CONT,RH,W/SWITCHPACK,GLOSS BLACK | with cover and switchpack (right) (gloss black) | Деталь HAND CONT,RH,W/SWITCHPACK,GLOSS BLACK | with cover and switchpack (right) (gloss black) | |
14 | 71500610A Деталь HAND CONT,LH,W/SWITCHPACK, GLOSS BLACK | with cover and switchpack (left) (gloss black) | Деталь HAND CONT,LH,W/SWITCHPACK, GLOSS BLACK | with cover and switchpack (left) (gloss black) | |
15 | 71500611 Деталь HAND CONTROL | rear (right) (gloss black) | Деталь HAND CONTROL | rear (right) (gloss black) | |
16 | 71500612A Деталь HAND CONT,COVER ASSY,LH/RR,GLOSS BLACK | rear (left) (gloss black) | Деталь HAND CONT,COVER ASSY,LH/RR,GLOSS BLACK | rear (left) (gloss black) | |
17 | 41701406 Деталь LEVER,FR BRK,LEVER ASSY SERVICE KIT, BLK | front brake (black) | Деталь LEVER,FR BRK,LEVER ASSY SERVICE KIT, BLK | front brake (black) | |
18 | 71500659 Деталь BRIDGE, WIRE | (right) | Деталь BRIDGE, WIRE | (right) |
