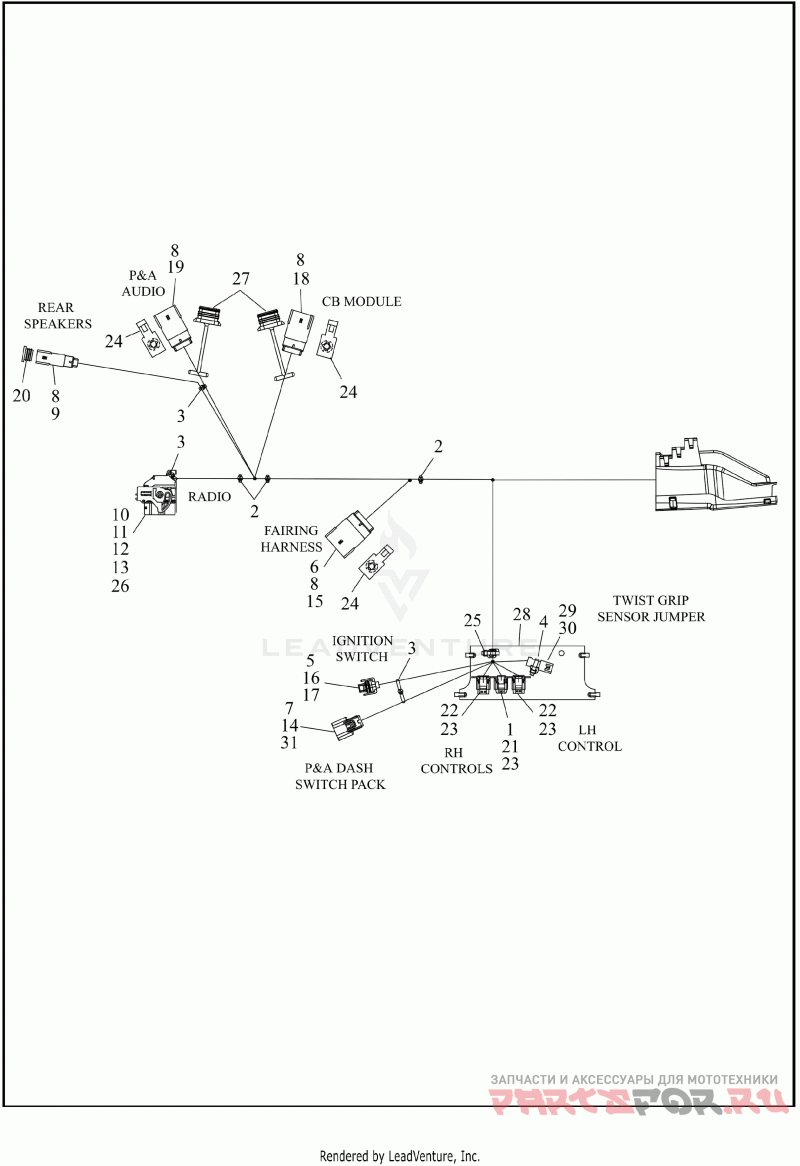

WIRING HARNESS, MAIN, NON-ABS - FLTRX (2 OF 8)

Harley Davidson FLTRX 1KHC ROAD GLIDE (2023)

Harley Davidson
#oem кодцена
69203183
Деталь HARNESS,WIRE,MAIN,W/O ABS,FLTR
1
5118
Деталь TERMINAL,X
2
10006
Деталь STRAP,TIE,X
3
10065
Деталь STRAP,TIE,CABLE
4
10177
Деталь CABLE STRAP,X-MAS TREE MOUNT | anchored
5
72062-06
Деталь HOUSING, 2-WAY FEMALE | two-way socket (gray)
6
72167-07BK
Деталь HOUSING,16-WAY,PIN/BLACK | 16-way pin (black)
7
72168-07
Деталь TERMINAL,SOCKET,#18-20 AWG | socket, 18-20 AWG
8
72169-07
Деталь TERMINAL,PIN,#16-20 AWG | pin, 16-20 AWG
9
72175-07BK
Деталь HOUSING,4-WAY,PIN/BLACK | four-way pin (black)
10
72209-11
Деталь WIRE HARN SUB-CMPNT,COVER | wire
11
72222-11
Деталь TERMINAL(0.6MM)SCKT,#18-20AWG(PO) | socket, 18-20 AWG
12
72226-11
Деталь TERMINAL(1.5MM)SCKT,#14-16AWG | socket, 14-16 AWG
13
72256-11
Деталь SEAL PIN,0.6MM,PLUG | 0.6 mm (white)
14
72414-07BK
Деталь HOUSING, 6-WAY SOCKET, BLACK | six-way socket (black)
15
72473-07
Деталь SEAL PIN | natural
16
72484-08
Деталь TERMINAL,SOCKET,#20AWG | socket, 20 AWG
17
72486-08
Деталь WIRE SEAL,#20AWG,GREEN | 20 AWG (green)
18
72488-07BK
Деталь HOUSING,12-WAY,PIN/BLACK | 12-way pin (black)
19
72490-07GY
Деталь HOUSING,12-WAY,PIN/GREY | 12-way pin (gray)
20
72632-10
Деталь PLUG,WEATHER,4-WAY PIN | weather, four-way pin
21
72905-11
Деталь HOUSING,2-WAY PIN | two-way pin (black)
22
72907-11
Деталь HOUSING,4-WAY PIN | four-way pin (black)
23
72909-11
Деталь TERMINAL,PIN,#20-22AWG | pin, 20-22 AWG
24
73213-07
Деталь RETAINER,X-MAS TREE CLIP | anchored
25
12500002
Деталь CABLE STRAP,XMAS,2-PC(PO)
26
69200193
Деталь HOUSING,48-WAY SOCKET | 48-way socket
27
69200205
Деталь PLUG,WEATHER,12-WAY PIN(PO) | 12-way pin
28
69200700
Деталь GUIDE,WIRE HARNESS,NACELLE
29
69201163
Деталь CONNECTOR,6-WAY PIN,BLACK | six-way pin (black)
30
69201164
Деталь SEAL,CONN/TERM,X | pin, 22 AWG
31
69203106
Деталь WIRE HARN SUB-CMPNT,SEAL PIN (PLUG)
