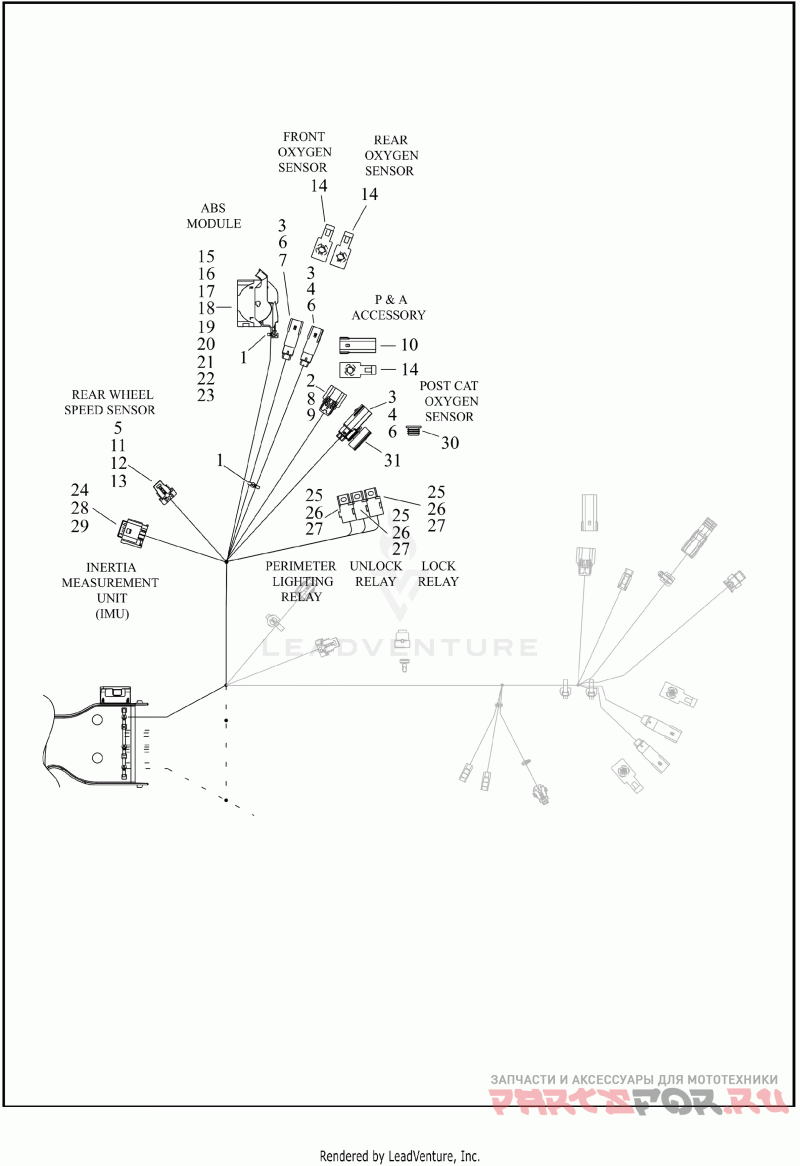

WIRING HARNESS, MAIN (7 OF 10)

Harley Davidson FLTRKSEANV 1TKH CVO ROAD GLIDE LTD ANNIVERSARY (2023)

Harley Davidson
#oem кодцена
69202793
Деталь HARNESS,WIRE,MAIN,W/ ABS,ECC,FLTRKSE
1
10065
Деталь STRAP,TIE,CABLE
2
72168-07
Деталь TERMINAL,SOCKET,#18-20 AWG | socket, 18-20 AWG
3
72169-07
Деталь TERMINAL,PIN,#16-20 AWG | pin, 16-20 AWG
4
72175-07BK
Деталь HOUSING,4-WAY,PIN/BLACK | 4-way pin (black)
5
72213-94
Деталь TERMINAL SCKT 16-20AWG | socket, female, 16-20 AWG
6
72343-10
Деталь TERMINAL,PIN,#16-20AWG/GOLD | pin, 16-20 AWG (gold)
7
72415-07GY
Деталь HOUSING,4-WAY,PIN/GREY | 4-way pin (gray)
8
72473-07
Деталь SEAL PIN | natural
9
72512-07BK
Деталь HOUSING,3-WAY,SCKT/BLACK | 3-way socket (black)
10
72519-09BK
Деталь DUSTCAP,3-WAY SOCKET | 3-way socket (black)
11
72606-08
Деталь HOUSING, 2-WAY SOCKET | 2-way socket
12
72609-08
Деталь SECONDARY LOCK, 2-WAY SCKT/BLACK | 2-way socket (black)
13
72610-08
Деталь SEAL, CABLE #18-20 AWG, WHITE | 18-20 AWG (white)
14
73213-07
Деталь RETAINER,X-MAS TREE CLIP | anchored
15
69200183
Деталь CONNECTOR,26-WAY SOCKET(PO) | 26-way socket
16
69200184
Деталь COVER,90DEG-WIRE DRESS,26-WAY SCKT | 26-way socket
17
69200185
Деталь TERMINAL,SOCKET,#20 AWG,1.5(PO) | socket, 20 AWG
18
69200186
Деталь TERMINAL,SOCKET,#14-16 AWG,2.8(PO) | socket, 14-16 AWG
19
69200187
Деталь TERMINAL,SOCKET,#12 AWG,4.8(PO) | socket, 12 AWG
20
69200188
Деталь WIRE SEAL,#20AWG,1.5(PO) | 20 AWG
21
69200189
Деталь WIRE SEAL,#14-16AWG,2.8(PO) | 14-16 AWG
22
69200190
Деталь WIRE SEAL,#12AWG,4.8(PO) | 12 AWG
23
69200191
Деталь SEAL PIN,PLUG,1.5(PO)
24
69201301
Деталь SEAL,CONN/TERM,X | 20-22 AWG (green)
25
69200600
Деталь MOUNTING,RELAY
26
9937
Деталь TERMINAL .25 FASTON 18-14GA | socket, 14-18 AWG
27
72427-00
Деталь TERMINAL,FAST-ON,.187,16-22 GA | socket, 16-22 AWG
28
69201779
Деталь CONNECTOR,IMU | four-way socket (black)
29
69201814
Деталь TERMINAL,SOCKET | socket
30
72632-10
Деталь PLUG,WEATHER,4-WAY PIN
31
69202682
Деталь BRKT,ELEC MT,CLIP
